Stanton

Description

With a power rating of 2,800W, the Stanton A.2800 power amplifier gives you the power you want with plenty of headroom. The A.2800 offers 2-channel, parallel, or bridged mono operating modes for flexible applications. Each channel features an independent limiter to reduce distortion and an independent input level control for precise adjustments. Precise signal and clip LED indicators let you monitor performance and correct for overloading (clipping) conditions. The A.2800's low-frequency filters (40Hz) remove rumble and subsonic frequencies. 2 rear-mounted fans cool the A.2800: cool air flows through the front fan filters, reducing the temperature of internal components while forcing the heat out the rear vents. Connections include balanced XLR and 1/4" TRS combination inputs for each channel and LINK ports. 5-way output binding posts or Speakon connectors enable secure operation. High-current toroidal transformer for absolute reliability. Independent DC and thermal overload protection on each channel automatically protects amplifier and speaker from damage or failure. The A.2800 power amp includes rack ears to mount in any standard 19" rack.

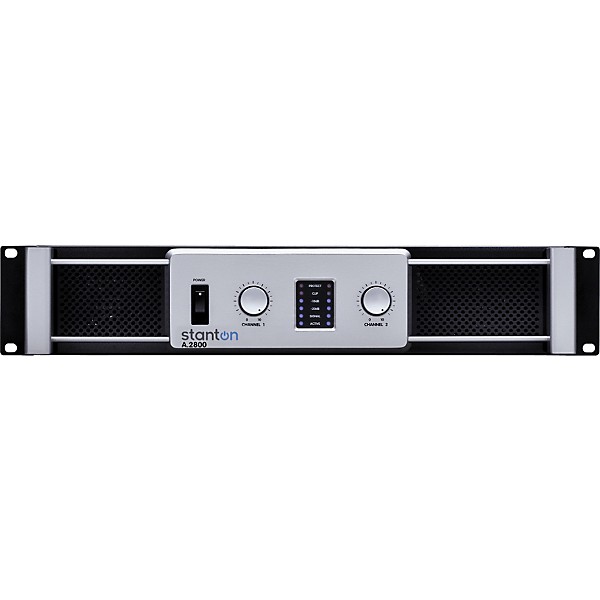

Stanton A.2800 Power Amplifier

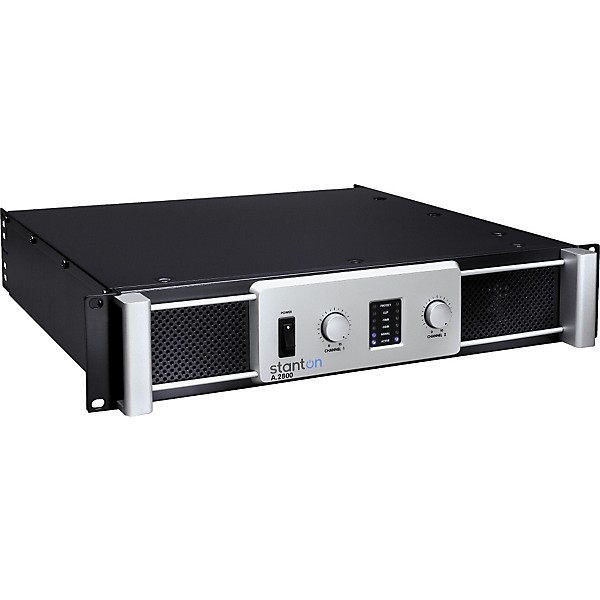

Stanton A.2800 Power Amplifier

Features

  • 2-channel, parallel, or bridged mono operating modes
  • 600W/ch @ 8 ohm, 900W/ch @ 4 ohm, and 1,400W/ch @ 2 ohm; 1,800W @ 8 ohm and 2,800W @ 4 ohm bridged mono
  • Independent limiters for each channel
  • Independent input level controls for each channel
  • Precise signal and clip LED indicators
  • Low-frequency filters (40Hz)
  • Twin-tunnel and 2 temperature-sensitivity forced-air cooling system
  • Balanced XLR and 1/4" TRS combination input connectors for each channel and LINK ports
  • 5-way output binding posts and Speakon connectors
  • High-current toroidal transformer
  • Independent DC and thermal overload protection on each channel
  • Rackmountable in any standard 19" rack

Specs

  • Signal to Noise Ratio (20Hz-20kHz): 104dB
  • Distortion (SMPTE-IM): 0.04%
  • Input sensitivity @ 8 ohms: 4dBu
  • Voltage Gain: 35dB
  • Output Circuitry: H
  • Current Consumption: 120Vac / 240Vac
  • @ 1/8 power @ 4 ohms: 8.5A / 4.1A
  • @ 1/3 power @ 4 ohms: 17A / 8.3A
  • @ Rated power @ 4 ohms: 32A / 16A
  • Distortion: 20Hz-20kHz Half Power: 0.03%; 1kHz Rated Power: 0.1%
  • Frequency Response: 0/-0.5dB; 20Hz-20kHz, 0/-3dB; 5Hz-60kHz
  • Damping Factor (400 Hz): 350
  • Input Impedance: 15kOhm Unbalanced, 30kOhm Balanced
  • Input Clipping: 22dBu (10Vrms)
  • Cooling: Continuously variable speed, Front to rear
  • Connectors (each)
  • Input: Active balanced combo (XLR and 1/4" TRS common use)
  • Output: 5-way Binding post and Speakon
  • Control
  • Front: AC power switch, Channel 1 and 2 volume
  • Rear: HPF switch, Limiter switch, Mode selector switch
  • Indicators: Active (blue), Protection (red), Clip (red), Signal (green & yellow)
  • Protection: Short circuit, Thermal, Current limit, DC offset, Current inrush, RF protection, Turn on / Turn off muting
  • Power requirements: 100, 120/240Vac, 50/60Hz
  • Dimensions: 19"W x 3.5"H x 16.5"D (482 x 88 x 420mm)
  • Net Weight: 46 lb. (20.7kg)
