Description

The Tube Vitalizer goes beyond traditional equalization with a completely different type of EQ, with which almost virtuoso interventions in the sound image become possible. When mixing, mastering and restoring, the Tube Vitalizer goes beyond traditional equalization.

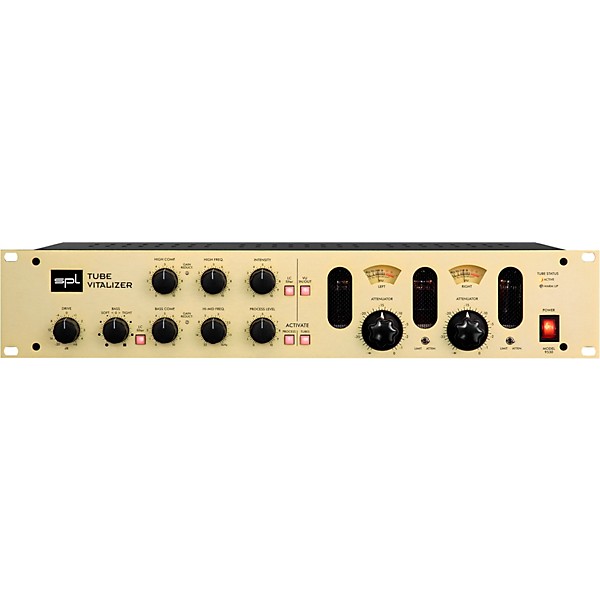

SPL Tube Vitalizer Program Equalizer
SPL Tube Vitalizer Program Equalizer

Features

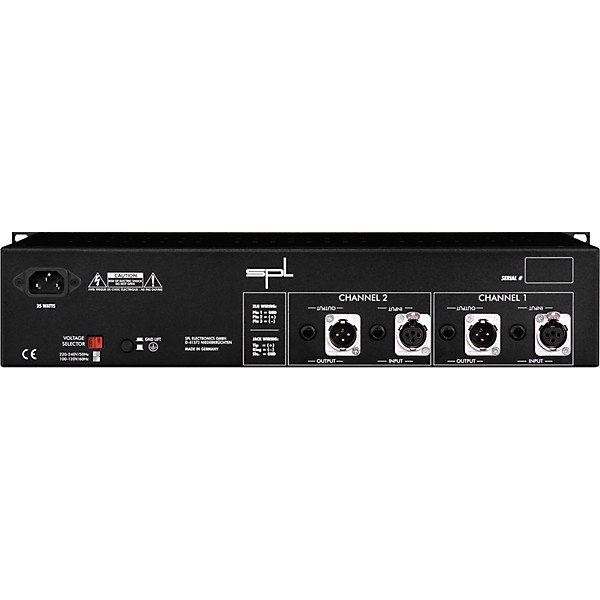

  • The two channels of the Tube Vitalizer are equipped with Neutrik XLR sockets and jack sockets connected in parallel.
  • The signal transmission is electronically balanced with a nominal level of +6 dB.

Specs

  • Maximum input gain: 24 dBu
  • Input impedance: 22 kΩ
  • Output impedance: 600 Ω
  • Common mode rejection (1 kHz): 70 dB
  • Frequency range (-3 dB, tube section off): 10 Hz – 100 kHz
  • Frequency range (-3 dB, tube section on): 30 Hz – 100 kHz
  • THD + N (0 dBu, 10 Hz – 22 kHz): 0.002 %
  • Noise (A-weighted): -89 dBu
  • Dynamic Range: 113 dB

  • Operating voltage for analog audio: +/- 18 V
  • Operating voltage for relays and LEDs: +12 V

  • Mains voltage (selectable): 230 V AC / 50; 115 V AC / 60 Hz
  • Fuse for 230 V (primary): T 500 mA
  • Fuse for 230 V (secondary): T 315 mA
  • Fuse for 115 V (primary): T 1 A
  • Fuse for 115 V (secondary): T 630 mA
  • Power consumption: max. 40 W
  • W x H x T: 482 x 88 x 237 mm / 19 x 3.46 x 9.33 inch
  • Unit weight: 4.9 kg / 0.8 lb
  • Shipping weight (incl. packaging): 7.5 kg / 16.53 lb
