Description

The PG Mastering Equalizer by PQ  is a unique equalizer for several reasons. It has two times five fully parametric filter bands, each of which can be switched between constant Q and proportional Q! And there’s sheer unlimited headroom and a very special kind of EQ sound – thanks to 120V technology.

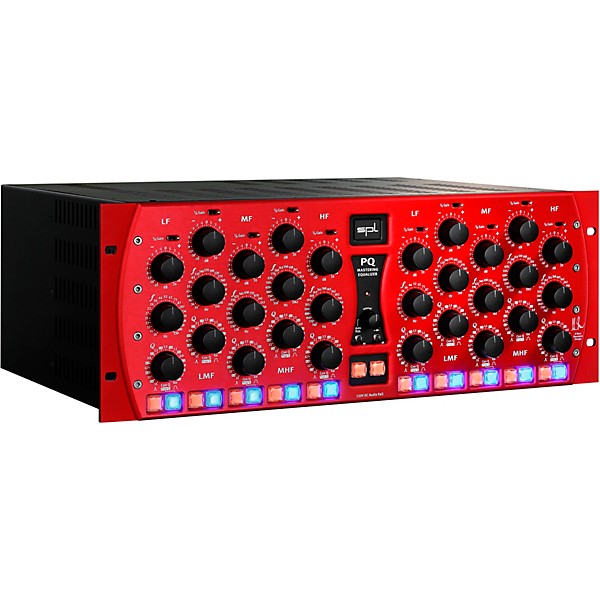

SPL PQ Mastering Equalizer Red

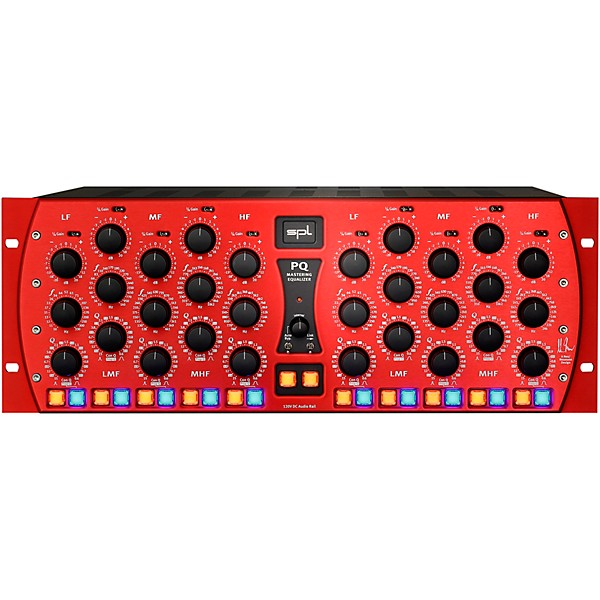

SPL PQ Mastering Equalizer Red

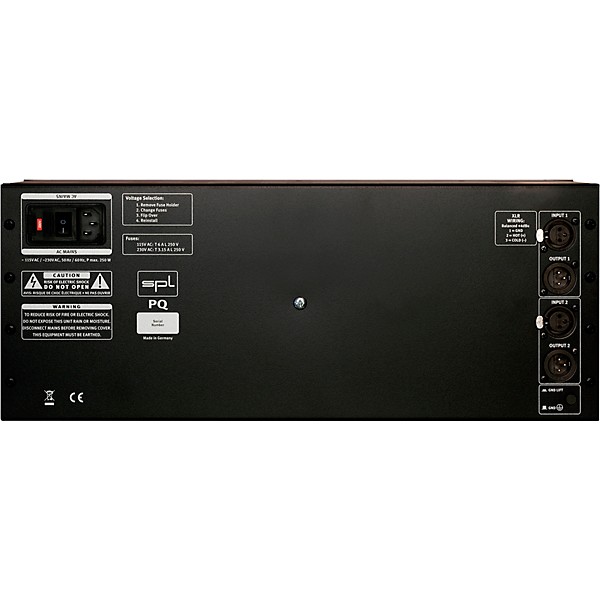

SPL PQ Mastering Equalizer Red

Features

  • Stepped Potentiometers
  • Recall of all settings is easy thanks to the potentiometers with 41 steps.
  • Cut/Boost & 1/4 Gain
  • Each filter band can be boosted or cut up to 20 dB.
  • If only minimal changes are required, the 1/4 Gain switch can be used to reduce the boost or cut range from +/-20 dB to +/-5 dB.
  • Frequencies
  • We have designed the frequency distribution to overlap widely between the bands, so that problematic frequencies can also be addressed with two bands.

Specs

Analog inputs & output; XLR (balanced)
  • Maximum input & output gain
  • 32.5 dBu
  • Input impedance
  • 20 kΩ
  • Output impedance
  • 75 Ω
  • Common mode rejection
  • -82 dBu
  • Frequency range (-3 dB)
  • 10 Hz – 100 kHz
  • THD & N (+30 dBu, 1 kHz)
  • 0.0005 %
  • Noise (A-weighted)
  • -94.3 dBu
  • Dynamic range
  • 135 dB

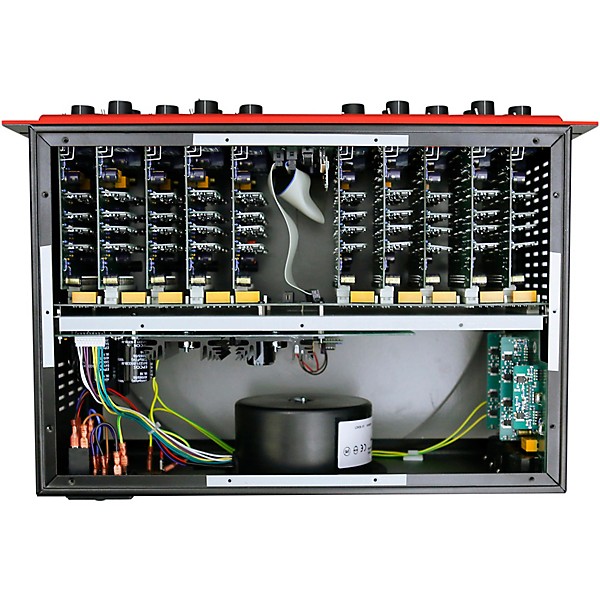

Internal Linear Power Supply with Shielded Toroidal Transformer
  • Operating voltage for analog audio
  • +/- 60 V
  • Operating voltage for relays and LEDs
  • + 12 V
Mains Power Supply
  • Mains voltage (selectable, see fuse chamber)
  • 230 V AC / 50; 115 V AC / 60 Hz
  • Fuse for 230 V
  • T 3.15 mA
  • Fuse for 115 V
  • T 6.3 A
  • Power consumption
  • max. 100 VA
Dimensions & Weight
  • W x H x D (width x height x depth)
  • 482 x 177 x 300 mm
  • 19 x 6.97 x 11.8 inch
  • Unit weight
  • 15.2 kg
  • 33.51 lb
  • Shipping weight (incl. packaging)
  • 18.7 kg
  • 41.23 lb
