Description

Hermes revolutionizes mastering. Now it is possible to have an audio signal processed by up to eight 2-channel processors in any order that can be stored. At the push of a button you can compare up to four complex processing chains.

Hermes accelerates mastering workflows in an unprecedented achievable way. The time-consuming replugging of the patchbay alone had made true comparison almost impossible.


Now you can change, store and compare processing chains in seconds. All with real buttons, relays and without additional software.

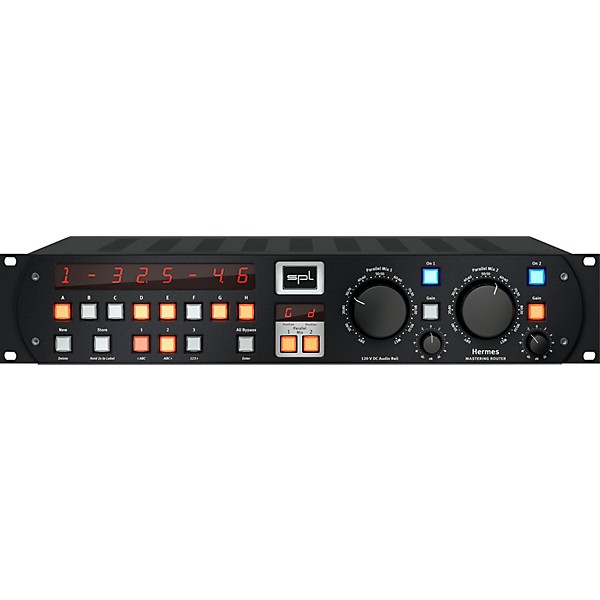

SPL Hermes Mastering Insert Router Black

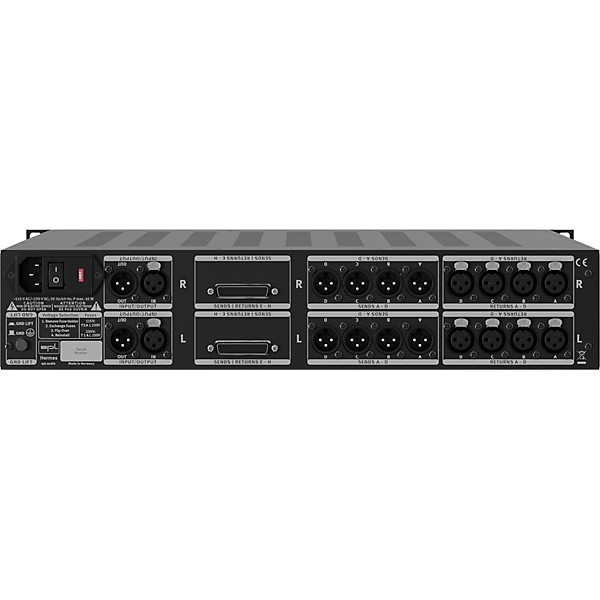

SPL Hermes Mastering Insert Router Black

Features

  • Hermes has two parallel mix stages that can be freely assigned to each of the eight processors and stored with a processing chain. This means that even two compressors with different parallel mix settings can be compared quickly and easily.
  • The routing is completely passive with gas-encapsulated and gold-plated high-end relays.
  • All active stages, such as the input/output stages and the parallel mix stages work in 120V technology.

Specs

Analog inputs & output; XLR & DB25 (balanced)
Maximum input & output gain
32.5 dBu
Input impedance
20 kΩ
Output impedance
75 Ω
Frequency range (-3 dB)
4 Hz to 300 kHz
Common mode rejection
-75 dBu
Crosstalk (1 kHz, 0dBu)
-130 dBu
Crosstalk (1 kHz, 0dBu, P-Mix on)
-110 dBu
Noise (A-weighted)
-121 dBu
Noise (A-weighted, P-Mix on)
-104 dB
    Internal Linear Power Supply with Shielded Toroidal TransformerOperating voltage for analog audio+/- 60 VOperating voltage for relays and LEDs+ 12 V
      Mains Power SupplyMains voltage (selectable, see fuse chamber)230 V AC / 50; 115 V AC / 60 HzFuse for 230 VT 1 AFuse for 115 VT 2 APower consumptionmax. 40 VA
