Marantz

Description

The PMD620 offers direct to MP3 recording in three quality levels, as well as fully uncompressed, CD-quality 44.1/48 kHz .wav format in 16 or 24-bit resolution, allowing the user to configure the PMD620 for a wide variety of applications, from extended-length voice recordings to high-quality music applications. Sound quality is enhanced by the inclusion of two condenser microphones on the PMD620, as well as line and external mic inputs, and an external mic output.

The new PMD620 use SD flash memory for data storage. The PMD620 accepts high capacity memory cards up to 2TB, (2048 gigabytes).

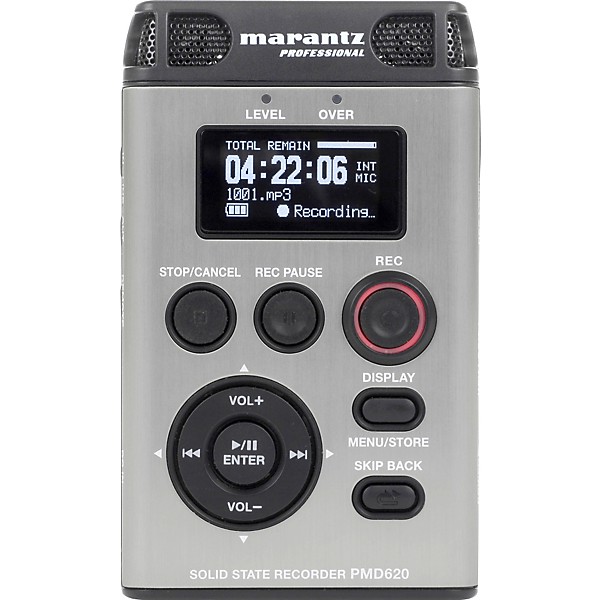

The PMD620 offers one-touch recording using a button with its own tactile feel and red highlight illumination. The unit's transport controls will be familiar to users of personal portable music devices, and incorporates a thumb-operated scroll wheel and a vivid organic LED (OLED) display screen, one of the first in the industry, which uses very little power to illuminate, thus extending the unit's battery life. (The PMD620 is powered by two AA batteries.)

The display's black background means that all alpha-numerics and function icons are always crisp and easy to read. The screen is also configurable thanks to two font sizes, allowing more information on the screen with the smaller font and highly readable key information with the larger one.
Included in the firmware is "Copy Segment" editing, which uses non-destructive cut-and-paste-style editing to create a new sound file, which can be up/downloaded via the built-in USB port. Another menu feature, "Skip Back," allows transcribers the ability to review recorded audio from 1 to 60 previous seconds. And the PMD620's USB 2.0 port allows drag-and-drop transfer of files to a PC. "Level" and "Peak" LEDs let you know the status of your input signal, and you can toggle between four displays screens that provide elapsed time, time remaining and other key data.
Restock Marantz PMD620 Digital Recorder
Restock Marantz PMD620 Digital Recorder
Restock Marantz PMD620 Digital Recorder

Features

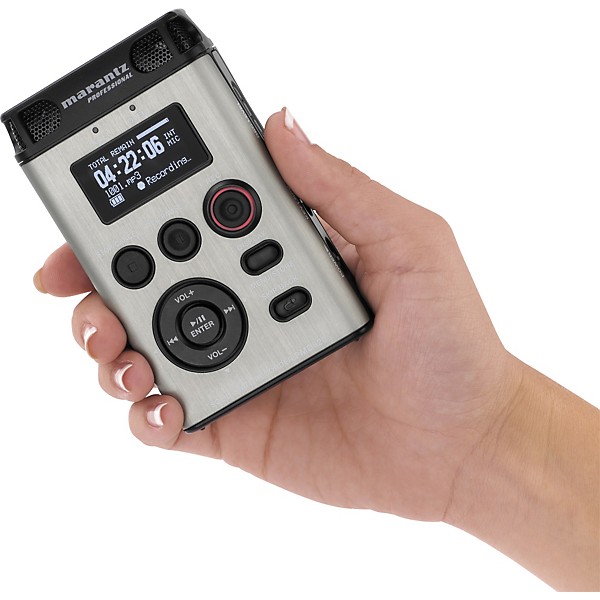

  • True handheld portability with one-touch stereo recording
  • Professional recording features and flexible file formats
  • Digital recording with file size limited only by SD card capacity
  • On-board editing and playback features
  • Full inputs and outputs, including USB 2.0 connectivity

Specs

Digital Audio System
  • System: Solid State Recorder
  • Usable Media: SD/SDHC Cards

  • Recording Format
  • MP3: MPEG1 Layer III Compression
  • WAV: 16/24 Bit Linear PCM

  • Recording MP3 Bit-rate
  • Stereo: 192/128/64 kbps
  • Mono: 96/64/32 kbps
  • Sample Rate: 44.1/48 kHz
  • Number of Channels: 2 (Stereo) / 1 (Mono)
Audio Performance
  • Frequency Response: 20 Hz to 20 kHz (±1 dB)

  • Signal-to-noise Ratio, IEC-A Weighted
  • MIC: 68 dB
  • LINE: 80 dB

  • Total Harmonic Distortion at 0 VU
  • MIC: 0.06%
  • LINE: 0.02%
  • Dynamic Range 81 dB

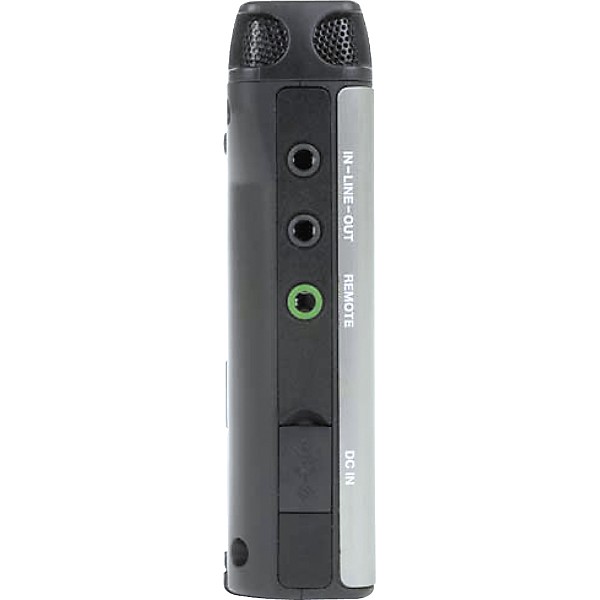

Inputs

  • External MIC
  • Type: 1/8" stereo jack
  • Input Sensitivity: 6 mVrms/30 kohms

  • LINE
  • Type: 1/8" stereo jack
  • Input Sensitivity: 500 mVrms/20 kohms
Outputs

  • LINE
  • Type: 1/8" stereo jack
  • Standard Level: 1.0 Vrms/10 kohms

  • Headphone
  • Type: 1/8" stereo jack
  • Standard Level: 16 mW/16 ohms

  • Speaker
  • Standard Level: 150 mW/8 ohms
General

  • Power Consumption
  • Recording/Playback: 1.5 W (DC)
  • Battery Life (Alkaline): 5 hours (Typical)
  • Phantom Power: 5V, 1mA (Max.)

  • Environmental Conditions
  • Operational Temperature: 0 to 40C (32 - 104F)
  • Operational Humidity: 25% to 85% (No condensation)
  • Storage Temperature: ”20 to 60C (”4 - 140F)

  • Dimensions
  • Width: 62 mm (2.5")
  • Height: 102 mm (4")
  • Depth: 25 mm (1")
  • Weight (Excluding Batteries): 110 g (4 oz)
Included Accessories
  • Audio Cable
  • USB Cable
  • AC Adapter
  • User Guide
  • CD-ROM
  • Handy Strap
  • Customer Registration Document (U.S. Only)
  • Tripod/Belt Clip Adapter
  • SD Card
