Dynaudio Acoustics

Description

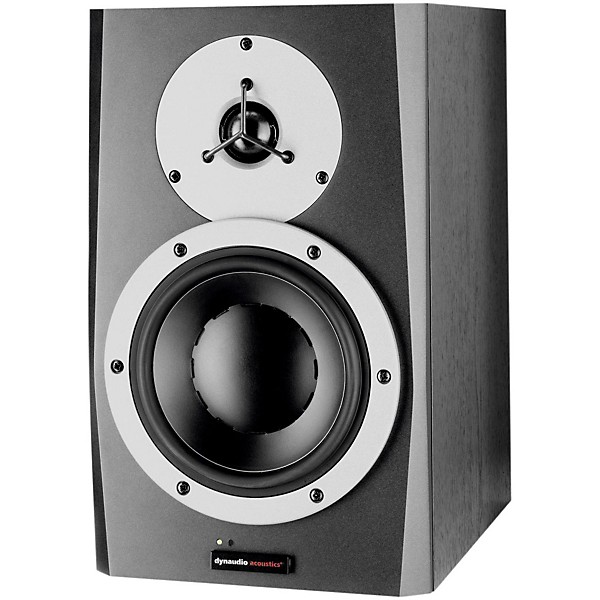

The Dynaudio BM6A Mk 2 is a two-way active analog nearfield monitor with a 7" woofer and a 1.1" soft dome tweeter delivers distinctive Dynaudio clarity and accuracy, exposing every audible detail for the critical and demanding engineer.

The BM6A Mk 2 monitor features onboard LF/MF/HF placement filters, as well as subwoofer high-pass filters which allow the audio monitor to easily adopt to any environment.

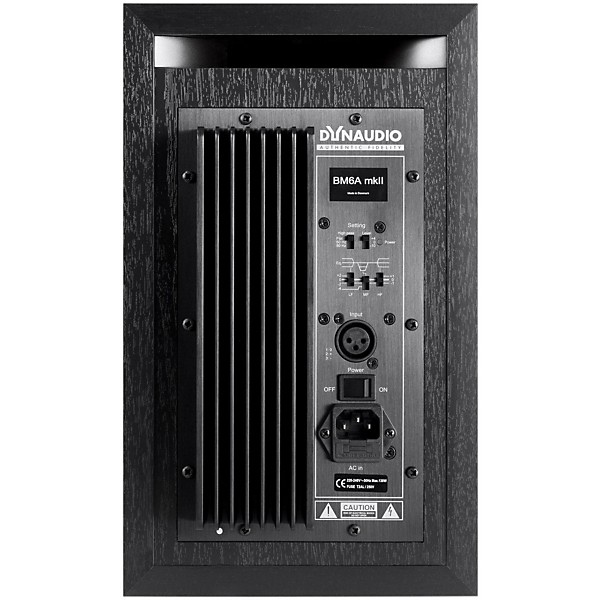

Restock Dynaudio Acoustics BM6A MK II Active Studio Monitor
Restock Dynaudio Acoustics BM6A MK II Active Studio Monitor

Features

  • Integrated positioning filters (LF/MF/HF shelving/notch)
  • 60/80Hz high-pass filter for subwoofer adaptation
  • Balanced analog XLR input
  • 100W/50W woofer/tweeter amplifier
  • Input sensitivity switch (-10/+4dB range)
  • Clip indicator LED
  • Slow attack optical HF protection
  • Thermal amplifier protection

Specs

  • Frequency Response:
  • (+/- 3 dB) 40 Hz - 21 kHz
  • Max SPL 1m, pair (IEC Long Term): 119dB peak
  • Max SPL 2m, 5.1 (IEC Long Term): 120dB peak
  • Input level for 85 dB
  • SPL @ 1m (+4/-10): -14dBu RMS @ 0dB setting
  • Input level for max peak SPL (+4/-10): +12dBu Peak @ 0dB setting
  • Power consumption: Idle: 15W/Max: 130W
  • Amplifier power: Woofer: 100W/Tweeter: 50W
  • Resonance Frequency: 37Hz
  • Internal Cabinet Volume: 11.7 liters
  • Bass Principle: Bass reflex
  • Crossover Frequencies: 1500Hz
  • Crossover Slope: 6dB/oct
  • Tweeter: Esotec 28mm/1.1" soft dome, rear chamber, Magnetic fluid. 4 mm die-cast alu front, Pure alu wire voice coil
  • Woofer: 175 mm/7", one-piece molded poly-prop cone, 75mm/3" pure alu voice coil
  • Weight: 10.5 kg / 23.12 lb.
  • Dimensions (WxHxL): 203 x 335 x 327 mm / 8" x 13.2" x 12.9"
