CHAUVET DJ

Description

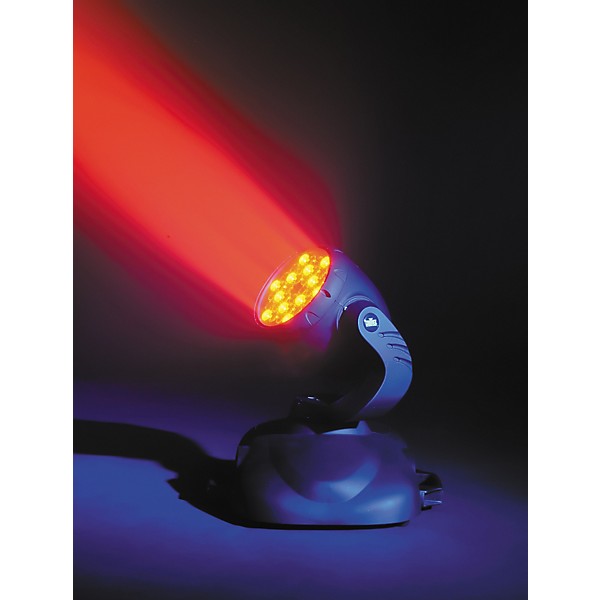

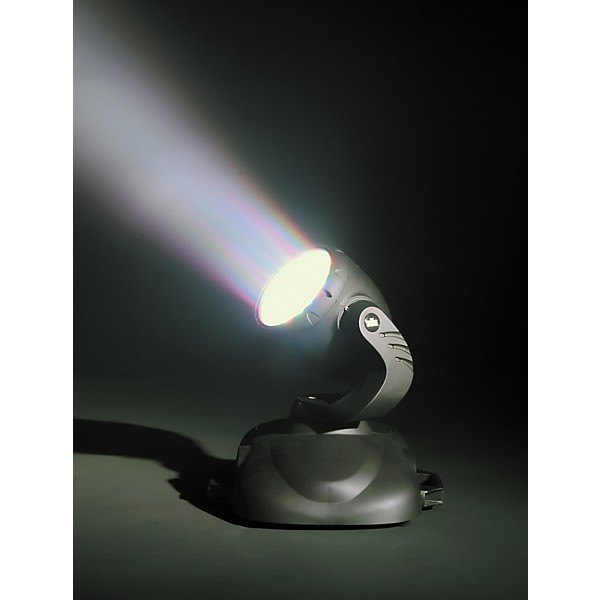

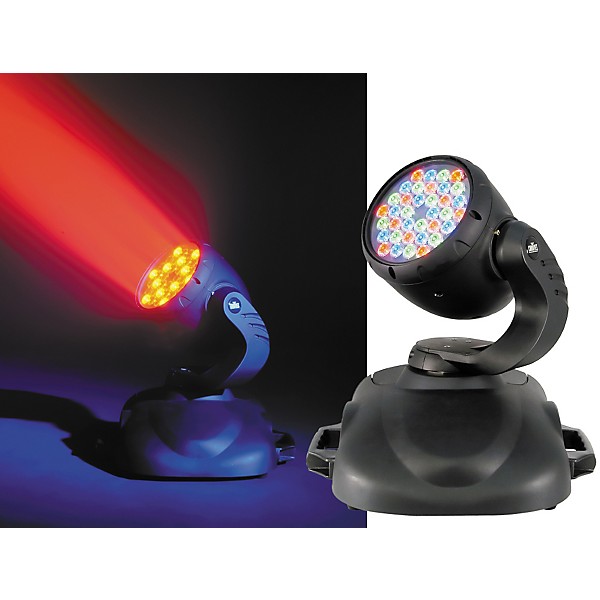

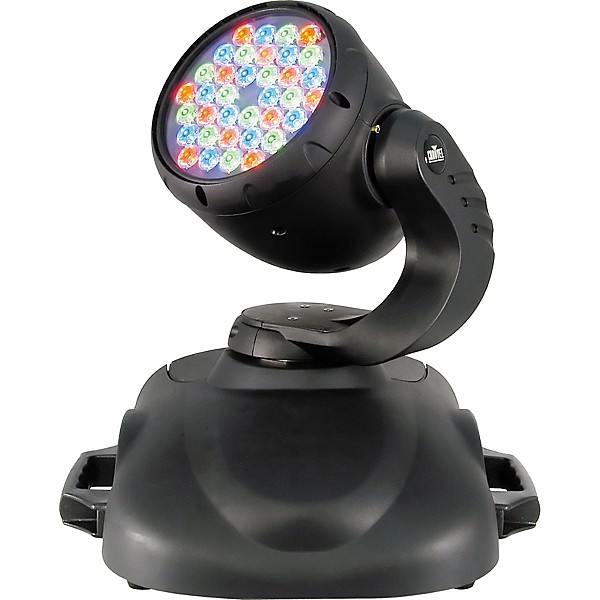

Although it only has 36 1W LEDs, the Q-Wash LED36 Lighting Fixture provides an amazingly bright beam of color. Able to pan to 540 and tilt 270, the 10-channel DMX-512 controlled moving yoke fixture can be used to concentrate a flush of one color to accentuate a particular area of architecture or, utilizing its RGB mixing capabilities and 100 user-programmable steps, you can create a dizzying array of multi-color light movement.

It also features variable electronic strobe, full-range dimming, built-in automated/sound-activated programs, a remote fixture reset, vector speed channel, and automatic pan/tilt correction, as well as reversible pan and tilt. The Q-Wash LED36 has a lot of options for such a small DMX lighting effect. When you take into account how little power it consumes thanks to the LEDs, and how cool they'll stay no matter how long you leave them on, it's more than worth it.
Restock CHAUVET DJ Q-Wash LED36 DMX Moving Yoke Lighting Fixture
Restock CHAUVET DJ Q-Wash LED36 DMX Moving Yoke Lighting Fixture
Restock CHAUVET DJ Q-Wash LED36 DMX Moving Yoke Lighting Fixture

Features

  • 10-channel DMX-512 LED moving yoke color wash
  • Pan: 540 /tilt: 270
  • RGB color mixing
  • Variable electronic strobe
  • Variable electronic dimmer (0 - 100%)
  • Remote fixture reset and vector speed channel
  • 100 user-programmable steps with or without DMX controller
  • Built-in automated programs via master/slave or DMX
  • Built-in sound activated programs via master/slave or DMX
  • Extremely bright 1W LEDs
  • 15 lenses installed
  • Automatic pan & tilt correction
  • Micro-stepping motors
  • LCD display
  • Reset to factory settings option
  • Low-power consumption
  • Reversible pan and tilt
  • Thermal switch
  • Fan cooled (adjustable speeds)
  • 2-year limited warranty

Specs

  • Beam angle: 13 (15 lenses)
  • Field angle: 26(15 lenses)
  • Footcandles: 1,281 (15 lenses)
  • Lux: 13,784 (15 lenses)
  • Light source: 36 (12 red, 12 green, 12 blue) 1W LEDs 100,000 hrs
  • Current draw: (peak 84W @ 120V) (inrush 447W @ 120V)
  • Power: Switchable 110V/230V 50/60Hz
  • Weight: 20.5lbs.
  • Size: 14"W x 13.5"D x 14.3"
