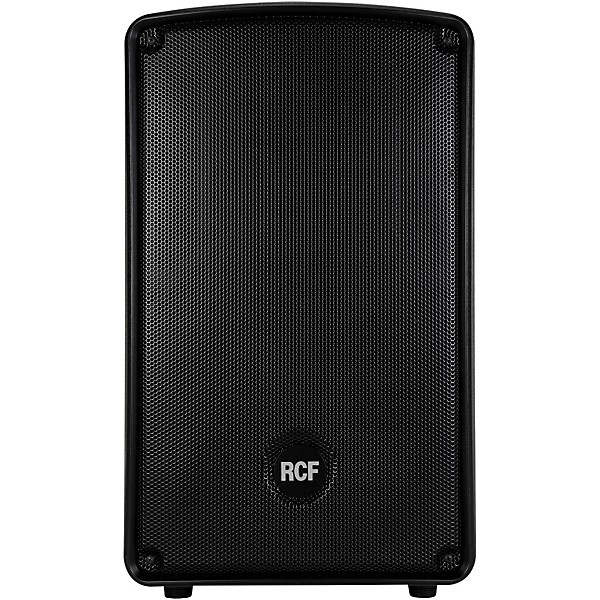

RCF HD 32-A Active Two Way Monitor

At the core of HD 32-A design is the new ND 840 compression driver. The ND 840 large format compression driver delivers one of the key advantages of the HD32-A, a 3.0” voice coil that allows a crossover point of 800Hz, which sends almost all of the vocal range through the driver. This allows better coverage and dispersion control, and superior efficiency. All Compression drivers and Transducers are precision built to take advantage of RCF’s superior molding and assembly technologies.

The HD32-A offers an extremely linear response and a precise, deep low frequency control. The 12” woofer guarantees superior sound projection indoors and outdoors. It is the ideal speaker for main front of house in small PA systems, for high power monitoring and it is the best solution where higher power is required for various applications in larger venues. The concept of this unique speaker derives from the touring industry, bringing all the experience of RCF professional sound into a compact cabinet.

RCF HD32-A is equipped with a new generation of 700-Watt Digital Amplifier. RCF Class-D power amplifiers technology packs huge performance operating with high efficiency into a lightweight solution. D Line amplifiers deliver ultra fast attack, realistic transient response and impressive audio performance. The amplifier features a solid mechanical aluminium structure which not only stabilizes the amplifier during transportation but also assists in the heat dissipation.

All the D-LINE amplifiers presents SMPS power supply section in order to produce maximum output and minimum transportation weight. The integrated DSP manages crossover, equalisation, soft limiter, compressor and dynamic bass boost. Switchable EQ Mode make it easier to select among two different equalization presets: Extended response switch, which slightly emphasizes the bass response for playback music and low volume applications and Linear response switch, for using the speaker to amplify a live mix.

A useful Mic/Line switch to adjust the input sensitivity is provided. When
used just for speech, the Mic setting allows to use a microphone directly with the speaker. Set the selector to Line when using the speaker for live music or playback.

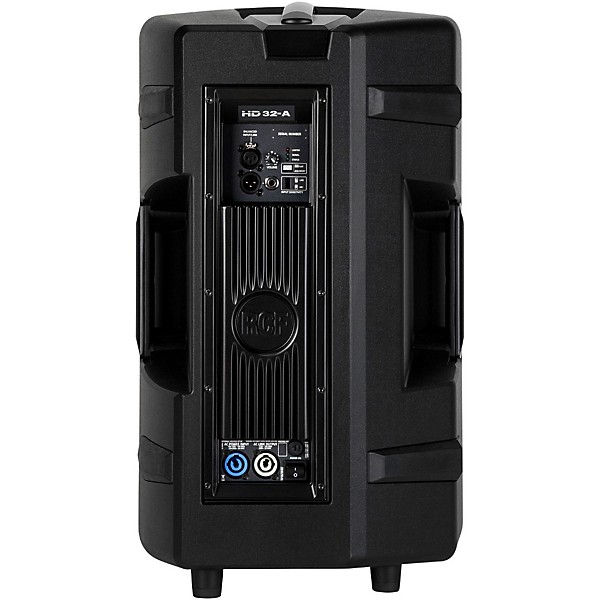

An easy to reach volume knob on the back allows to set the overall volume of the speaker according to its application.

3 status LEDs – Power / Signal / Status are provided for monitoring the system.
D LINE cabinets are molded using a special polypropylene composite material designed to dampen down vibrations even at maximum volume settings. From molding to the final texture, D LINE offers the maximum reliability and strength for the intensive use on the road. The reflex porting has been resized to offer a better efficiency. The HD32-A features 3 ergonomically designed forged handles with rubber handgrip, 2 on the sides and one at the top. At the bottom a rugged steel pole mount has been installed in all models. The new cabinet shape will allow every D-LINE model to be used in the standard configuration as well as in stage monitor
