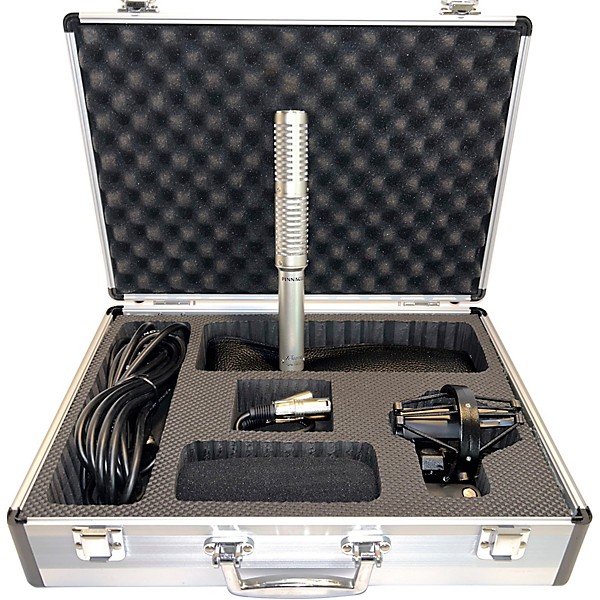

Pinnacle Microphones X-Treme Stereo Ribbon Microphone With Lundahl Transformer

Stereo ribbon recording typically requires careful microphone placement, but the Pinnacle Microphones X-Treme stereo ribbon microphone with Lundahl transformer integrates a complete Blumlein configuration into a single housing for consistent, repeatable results. Built with two matched, hand-tuned ribbon elements positioned vertically and offset at 90 degrees, it captures true stereo imaging without the need for multiple microphones or complex alignment. The addition of a Lundahl LL2912 transformer improves signal definition and extends frequency response, providing a more refined presentation across the stereo field. Its symmetrical figure-8 polar patterns and extended sensitivity support accurate spatial detail with minimal off-axis coloration, while 135dB SPL handling maintains clarity across both subtle dynamics and higher-output sources. This design makes the X-Treme mic well suited for drum overheads, acoustic instruments, room capture and ensemble recording applications where stereo accuracy and workflow efficiency are critical.

Integrated Blumlein Design for Accurate Stereo Imaging

The X-Treme features two ribbon elements arranged in a fixed Blumlein configuration, allowing it to capture stereo sound with precise spatial detail and strong channel separation. The 90-degree offset between the ribbons preserves phase coherence while maintaining a stable stereo image across the soundfield. By housing both elements in a single chassis, the design eliminates the need for multi-microphone alignment, simplifying setup while ensuring consistent results across sessions.

Symmetrical Ribbon Design With Lundahl Transformer

Each ribbon element is constructed from corrugated aluminum and positioned centrally within the magnetic field, supporting a true symmetrical figure-8 polar pattern. The integrated Lundahl LL2912 transformer improves signal definition while extending low- and high-frequency response, contributing to a more detailed and controlled stereo image. This design captures sound evenly from both the front and rear while reducing off-axis coloration and maintaining tonal consistency across the stereo field. With fast transient response and 135dB SPL handling, the microphone adapts to a wide range of sources, from close overhead placement to room and ensemble recording. For engineers seeking a compact stereo ribbon solution with refined detail and reliable performance, the Pinnacle X-Treme stereo ribbon mic with Lundahl transformer provides an efficient and consistent approach to stereo capture.
