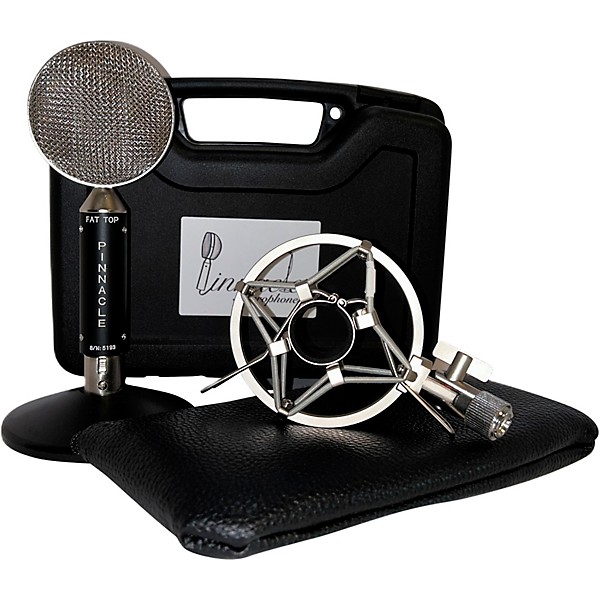

Pinnacle Microphones Fat Top Ribbon Microphone - Black
Description
Some recordings demand more than accuracy—they need warmth, depth and the kind of character that turns a good performance into a memorable one. The Pinnacle Microphones Fat Top is a passive ribbon microphone designed to bring classic analog smoothness and rich tonal balance to modern recording environments. Built around a precision aluminum ribbon element and a symmetrical figure-8 polar pattern, it naturally softens brittle high frequencies, tames harsh transients and adds a full-bodied quality that often requires little to no corrective EQ. Whether capturing vocals, guitar cabinets, piano, brass or percussion, the Fat Top delivers the rounded, musical response that has made ribbon microphones a studio staple for generations. The result is a sound that feels warm, smooth and natural from the moment you press record.
Classic Ribbon Warmth and Natural Tone
At the core of the Fat Top is a precision aluminum ribbon element designed to capture sound with the smoothness and depth that have made ribbon microphones studio favorites for decades. The microphone's natural high-frequency roll-off helps tame harsh or overly bright sources while preserving detail and articulation. Vocals sound full and natural, guitars become smoother and more balanced, and brass or percussion instruments retain their energy without becoming abrasive. The result is a microphone that consistently delivers polished, mix-ready recordings with minimal EQ.
Figure-8 Performance With Creative Flexibility
The Fat Top employs a symmetrical figure-8 polar pattern that captures sound equally from both the front and rear of the microphone while providing strong rejection at the sides. This design offers excellent source isolation and opens the door to a variety of creative recording techniques. Whether capturing a vocalist and instrument simultaneously, isolating stage sources or using a pair of microphones in a Blumlein stereo configuration, the Fat Top provides the flexibility and natural spatial response that engineers expect from a high-quality ribbon microphone.
Built for Demanding Recording Applications
Despite its refined sound character, the Fat Top is capable of handling demanding recording situations with ease thanks to its impressive 135dB maximum SPL rating. It excels on guitar cabinets, piano, brass sections, percussion instruments and a wide range of studio sources that benefit from added warmth and smoothness. Supplied with a deluxe shockmount, leatherette carrying pouch and molded flight case, the Pinnacle Fat Top arrives ready for professional studio use. For engineers looking to bring analog richness and musicality into their recordings, the Fat Top offers a versatile passive ribbon microphone with timeless appeal.

Features
- Passive ribbon microphone for warm, rounded studio tone
- Short-ribbon design helps tame harsh highs without EQ
- Symmetrical figure-8 pattern captures front and rear sound
- Large side nulls support source isolation in multi-mic setups
- 135dB max SPL handles guitar cabinets, brass and percussion
- 30Hz-15kHz response captures full lows and smooth highs
- Phantom power-safe design supports modern studio workflows
- Includes deluxe shockmount, pouch and molded flight case
Specs
- Product type: Passive ribbon microphone
- Model: Fat Top
- Microphone type: ribbon velocity microphone
- Ribbon material: 99.99% pure aluminum
- Ribbon thickness: 2.5 microns
- Ribbon dimensions: 1.75" x 0.19"
- Polar pattern: symmetrical figure-8
- Frequency response: 30Hz-15kHz (±3dB)
- Sensitivity: -49.2dB (3.5mV/Pa)
- Impedance: ≤200 Ohm
- Recommended load impedance: 1000 Ohm
- Maximum SPL: 135dB SPL (1% THD @ 1kHz)
- Equivalent noise level: 17dB (A-weighted)
- Signal-to-noise ratio: 70dB re 1Pa
- Output connector: 3-pin male XLR
- Phantom power safe: Yes
- Overall length: 6.5"
- Grille diameter: 3"
- Body diameter: 0.88"
- Deluxe shockmount
- Leatherette carrying pouch
- Molded flight case
- Warranty period: 1 year
- Warranty registration required within 14 days of receipt
