Description

Evox 8 combines the quality and reliability of RCF transducers with a built-in high output power amp and crossover network. It is equipped with eight 2 in. full-range transducers in the satellite and a 12” woofer in a bass reflex enclosure. It is a perfect high output solution for live music and DJs, and its astonishing clarity makes Evox 8 the perfect tool for larger presentations and corporate events

EVOX array design features constant horizontal directivity coverage of 120°, offering a perfect listening experience to the audience. The vertical array design is progressively shaped to guarantee a correct listening from the first row and to avoid the high frequency beaming that is typical of straight array systems. Extensive testing with instruments and voices during the design process as well as power and reliability testing make the EVOX system the perfect workmates for solo musicians or bands. Its extremely deep response, precise low frequency control and incredible audio quality likewise make it a smart choice for DJs.

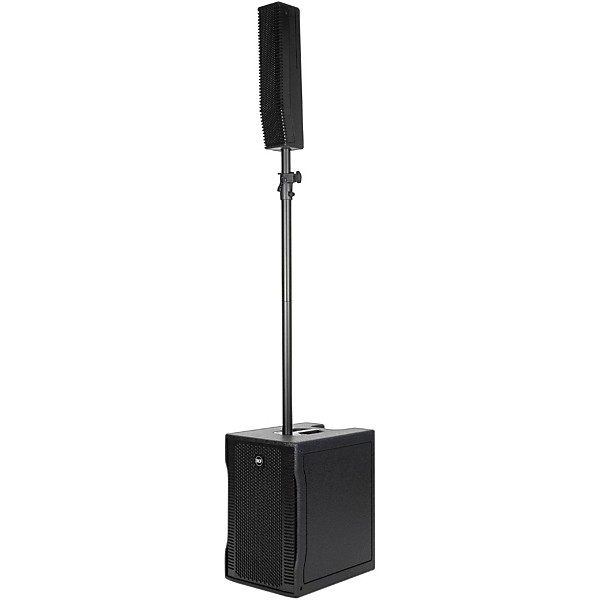

Open Box RCF EVOX 8 Personal Line Array PA System Level 1

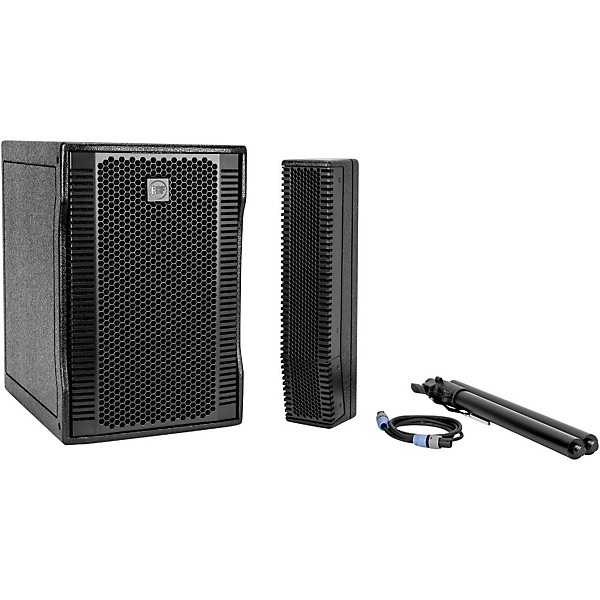

Open Box RCF EVOX 8 Personal Line Array PA System Level 1

Features

Speaker configuration
  • Active/passive: Active
  • Type: Full range
  • LF driver: 12 in.
  • MF driver: N/A
  • HF driver: 8 x 2 in.
Power
  • Amplifier class: D
  • Wattage: 700W RMS, 1400W peak
  • Mixer/preamp: N/A
Audio
  • Frequency response: 40Hz - 20kHz
  • Coverage pattern: 120° x 30°
  • Max SPL: 128 dB
Inputs
  • XLR/TRS: 1
  • TRS: N/A
  • TS: N/A
  • RCA N/A
Output/thru
  • XLR: 1
  • TRS: N/A
  • TS: N/A
  • SpeakON: N/A
Enclosure
  • Cabinet material: Baltic birch plywood
  • Width: 13.6 in.
  • Height: 20.9 in.
  • Depth: 18.1 in.
  • Weight: 50.7 lb.

Specs

Speaker configuration
  • Active/passive: Active
  • Type: Full range
  • LF driver: 12"
  • MF driver: N/A
  • HF driver: 8 x 2"
Power
  • Amplifier class: D
  • Wattage: 700W RMS, 1400W peak
  • Mixer/preamp: N/A
Audio
  • Frequency response: 40Hz - 20kHz
  • Coverage pattern: 120° x 30°
  • Max SPL: 128 dB
Inputs
  • XLR/TRS: 1
  • TRS: N/A
  • TS: N/A
  • RCA N/A
Output/thru
  • XLR: 1
  • TRS: N/A
  • TS: N/A
  • SpeakON: N/A
Enclosure
  • Cabinet material: Baltic birch plywood
  • Width: 13.6 in.
  • Height: 20.9 in.
  • Depth: 18.1 in.
  • Weight: 50.7 lb.
