Description

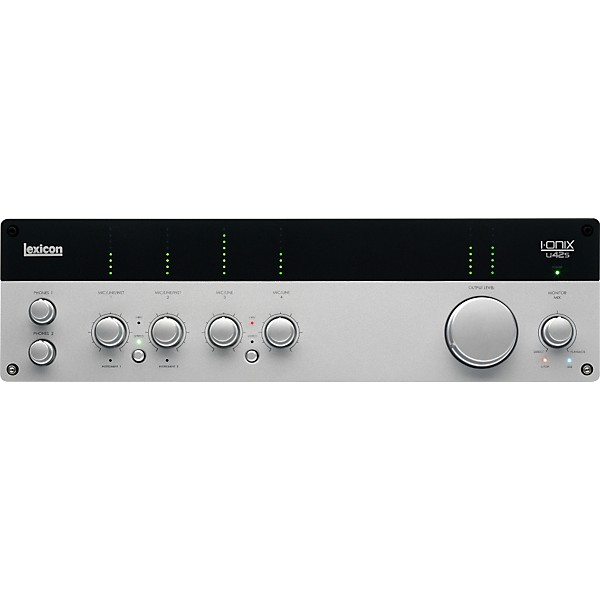

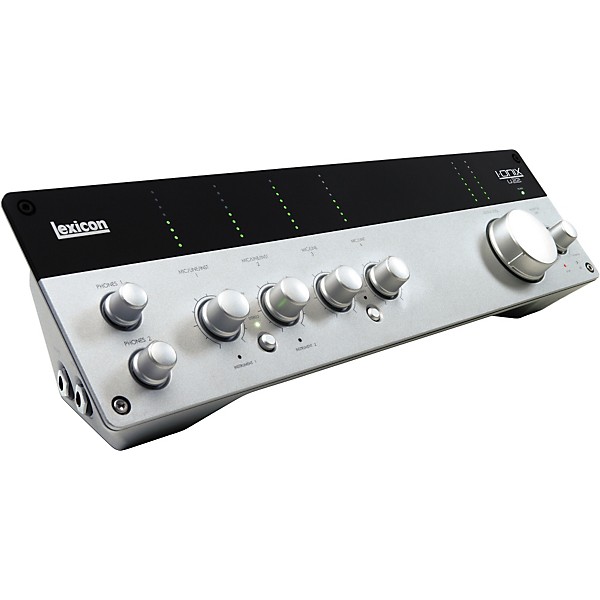

Brilliantly designed, the I-ONIX U42S recording interface from Lexicon fits where it makes the most sense, between your keyboard and monitor. Lexicon understands you care passionately about your music, and that it's more than just a pastime, which inspired them to create the I¢ONIX U42S, putting all monitor and input level controls at your fingertips.

Featuring dbx microphone preamps on every channel, the I¢ONIX series recording interfaces are more than equipped to provide professional recordings that keep your music sounding its best. The preamps run on a high-voltage supply to guarantee stability and provide you with a superior recording across a wide dynamic range. Performance driven A/D - D/A converters ensure pristine 24-bit/96kHz audio to capture every subtle detail of your performance.

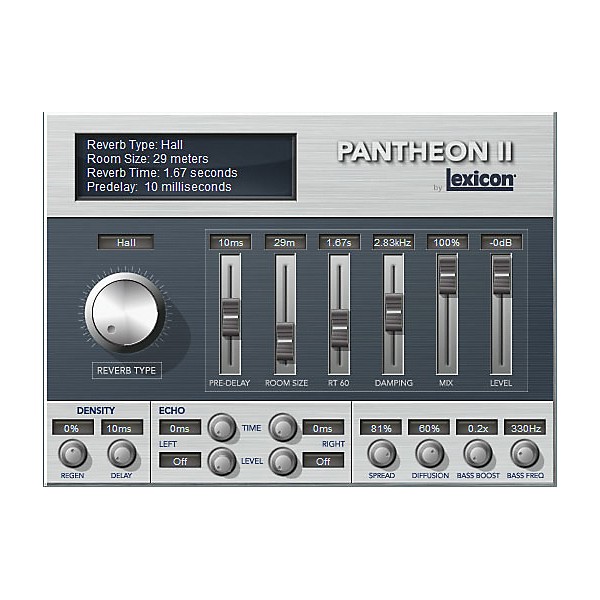

The included Pantheon II VST/AU reverb plug-in features 6 reverb types with 16 adjustable parameters, as well as 35 factory presets that range from Vocal to Live Sound and Special Effects. It's easy to complete your mix and make your music sound its best with these exquisitely rich, full reverbs that have made Lexicon famous.

Also included with the Lexicon U42S is a software suite featuring Steinberg's Cubase LE4 and Toontrack EZdrummer Lite.
Open Box Lexicon I-ONIX U42S USB 2.0 Audio/MIDI Interface Level 1
Open Box Lexicon I-ONIX U42S USB 2.0 Audio/MIDI Interface Level 1
Open Box Lexicon I-ONIX U42S USB 2.0 Audio/MIDI Interface Level 1

Features

  • USB 2.0 connection to DAW”up to 480Mbps
  • 44.1 to 96KHz sample rates, 24-bit resolution

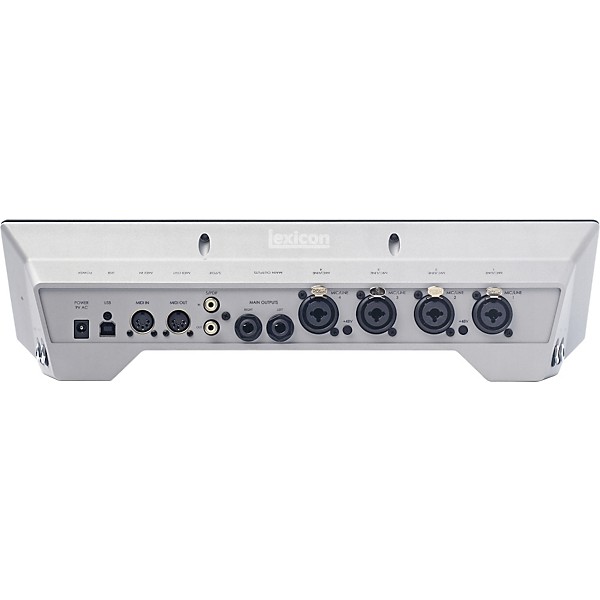

  • 4 Analog 1/4" and XLR combi-jack inputs on the rear panel for mic/line inputs
  • Record up to 6 sources at once
  • 2 Analog 1/4" TRS (Stereo Main) outputs
  • dbx high-voltage, ultra-low noise mic preamp's on all analog mic/line inputs (4 total)
  • 2 Hi-Z instrument inputs
  • Supports Windows and Mac platforms
  • 48V phantom power for each input pair
  • Input signal metering via 8 LED's per channel
  • Signal mixing and stereo bus signal metering
  • 2 1/4" high-output
  • headphone connections
  • MIDI In/Out
  • S/PDIF I/O
  • Zero-latency monitoring
  • Low-latency ASIO drivers
  • Lexicon Pantheon II VST/AU reverb plug-in
  • Software suite includes Steinberg's Cubase LE4, and Toontrack
  • EZdrummer Lite

Specs

  • Microphone Inputs: Female XLR Pin 2 Hot
  • Input Impedance: 3k? balanced
  • Phantom Power: +48 Volts
  • Maximum gain: +55dB
  • E.I.N. (at max gain): 127dB @ 55dB gain typical (150? source), 130dB @ 55dB gain typical A-weighted (150? source)
  • Maximum Input Level: +8dBu
  • Frequency Response: +/ 1.5dB, 20Hz-20kHz
  • THD+N: <0.02%, 20Hz-20kHz, <0.002%, 1kHz, -6dBu
    Line Inputs: 1/4" TRS balanced or unbalanced
  • Input Impedance: 20k? balanced, 13k? unbalanced
  • Maximum Input Level: +18dBu
  • Frequency Response: +/ 1.5dB, 20Hz-20kHz
  • THD+N: <0.02%, 20Hz-20kHz, <0.002%, 1kHz, +18 dBu
    Instrument Input: 1/4" TS unbalanced
  • Input Impedance: 1M?
  • Maximum Input Level: +10dBu
  • Frequency Response: +/ 2.5 dB, 20Hz-20kHz
  • THD+N: <0.08%, 1kHz, +4dBu
    Line Outputs: 1/4" TRS balanced or unbalanced
  • Level: +18dBu maximum
  • Impedance: 32? Balanced, 16? Unbalanced
  • Headphone Output: 1/4" stereo jack 250mW per channel at 50?
  • MIDI Interface: 5-pin DIN connectors for MIDI in and MIDI out
  • Sample Rate: 44.1, 48, 88.2, or 96kHz (determined by computer application)
  • Dynamic Range: A/D (24 Bit) 108dB typical, A-weighted, 20HZ-20kHz
  • D/A (24 Bit) 110dB typical, A-weighted, 20Hz-20kHz
  • A/D/A (24 Bit) 106dB typical, A-weighted, 20Hz-20kHz
  • Power requirements: Power adaptors for 100”240 VAC, 50/60Hz, 15W
