Description

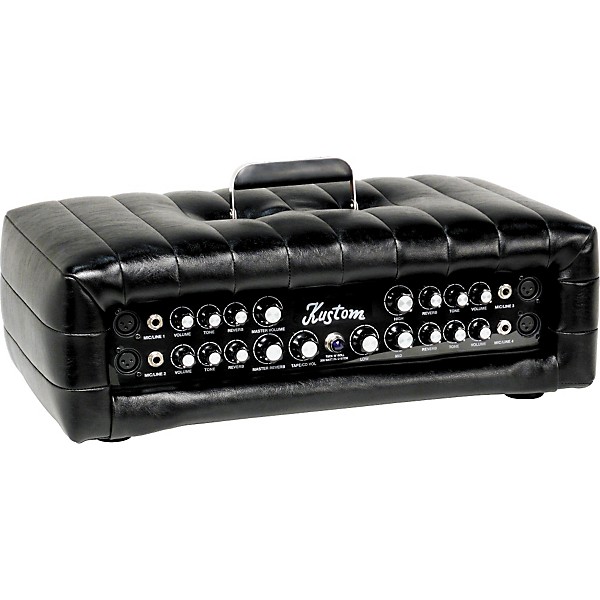

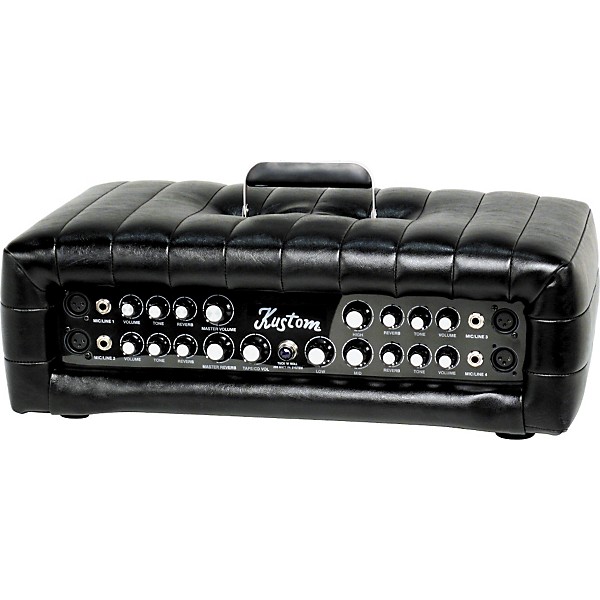

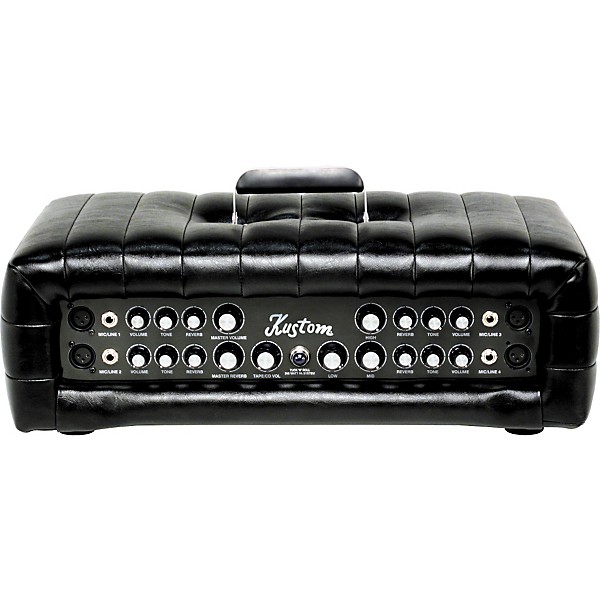

The Kustom KPM4200TNR mixer is styled after the vintage "Tuck n' Roll" Kustom P.A. systems of the 1960s and '70s. This model not only captures that classic vibe, but also offers top-notch tone and dependable performance. Four Channels and 200 Watts provide power and flexibility.
Open Box Kustom Tuck n' Roll PA Mixer Level 1 Black
Open Box Kustom Tuck n' Roll PA Mixer Level 1 Black
Open Box Kustom Tuck n' Roll PA Mixer Level 1 Black

Features

  • 200W Output Power
  • 4-Channels each with XLR Mic and 1/4" Mic/Line Inputs
  • Each Channel provides Volume, Tone and Reverb Controls

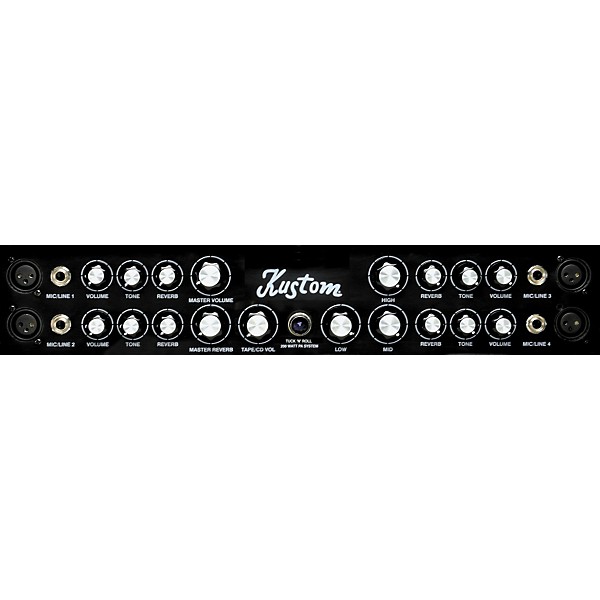

  • Master Controls: Volume, Low, Mid, High, Reverb, Tape/CD Volume

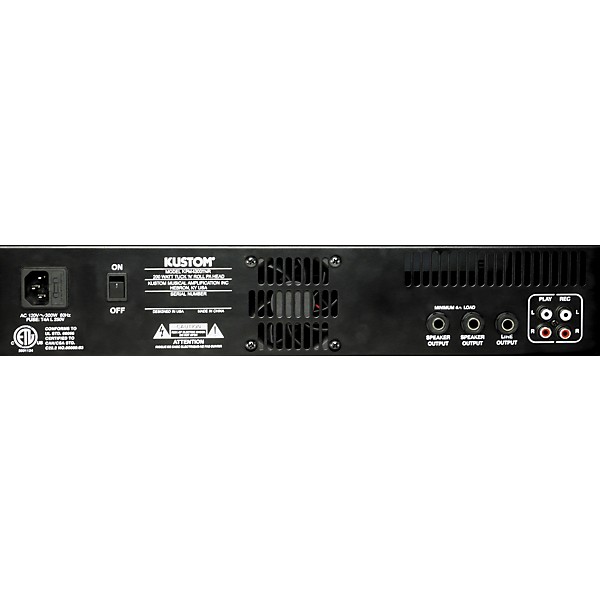

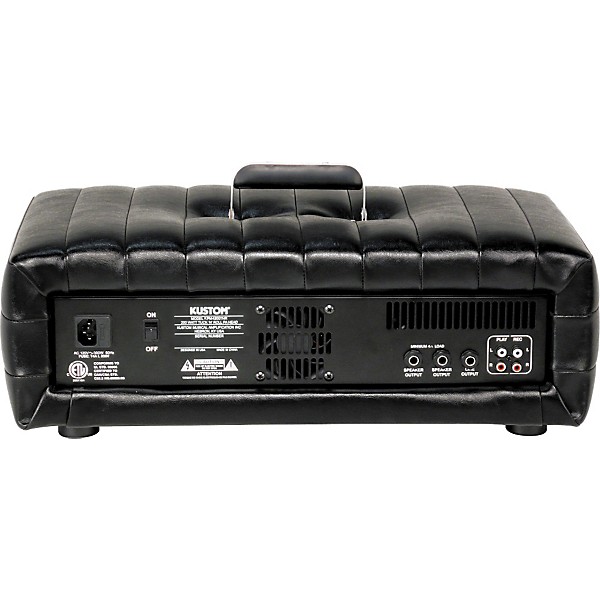

  • Rear Panel includes: RCA Playback Jacks; RCA Record Jacks; Line Out
  • Vintage "Tuck 'n Roll" Covering

Specs

  • Model: KPM4200TNR
  • Output Power: 200 W (4 ohm @ 5% THD); 120W (8 ohm @ 5% THD)
  • Frequency Response: 20 Hz - 20 kHz tailored for PA use
  • Total Harmonic Distortion: 0.1% Measured at 1V RMS (0 dBV) line output
  • Hum & Noise: -68dB residual noise, all level controls 0% (minimum); -50 dB nominal system noise, all level controls at 50%
  • system gain (all measurements made at 1kHz): 76dB MIC input to power amp Out; 60dB LINE input to power amp out; 40dB PLAY input to power amp out; 30dB Power Amp Gain
  • Power Requirements: 120VAC/60Hz, 300W nominal
  • Dimensions: inches 5-1„2 (height) x 20 (width) x 11 (depth); mm 140 (height) x 510 (width) x 280 (depth)
  • Weight: 17-1„2 lbs; 8 kg
