Eminence

Description

The Eminence Legend V128 12" 120 Watt Vintage British Tone Speaker has a British-manufactured cone that lends tonal characteristics to set rock guitarist's hearts afire. A Kapton bobbin for the voice coil allows this classic to handle up to 120W. Very mellow, but with lots of definition and rich tonal harmonic balance. Medium break-up modes. Very smooth.

Emminence recommends the Legned V128 as a direct replacement speaker for the Epiphone Triggerman and the Epiphone SoCal 412SL cabinets.

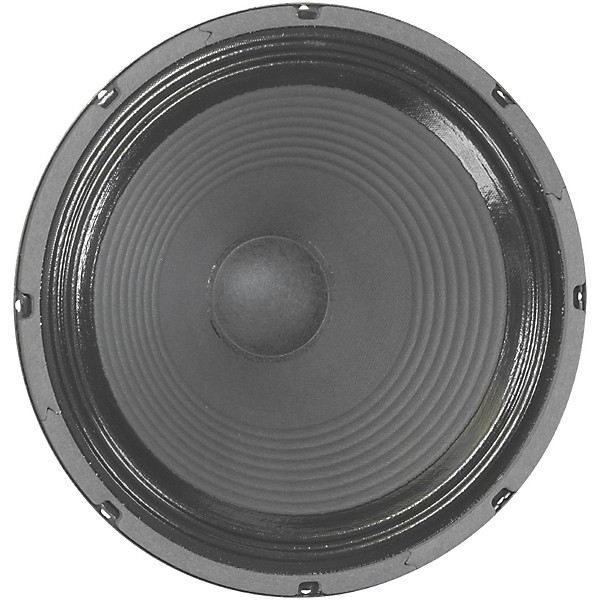

Open Box Eminence Legend V128 12" 120 Watt Vintage British Tone Speaker Level 1 8 Ohm

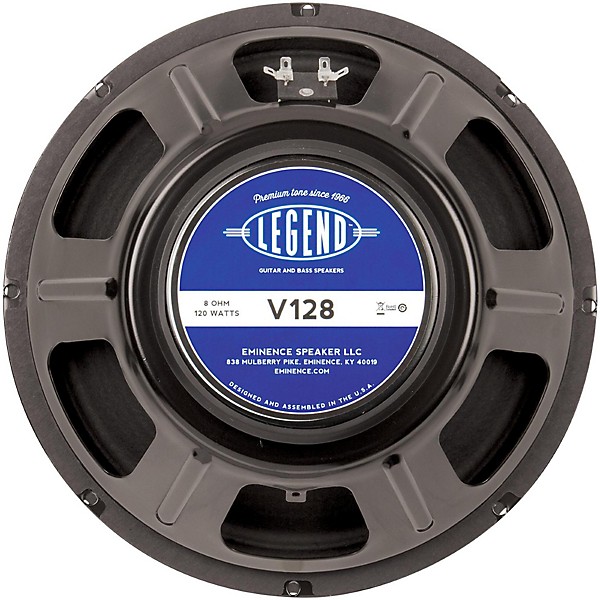

Open Box Eminence Legend V128 12" 120 Watt Vintage British Tone Speaker Level 1 8 Ohm

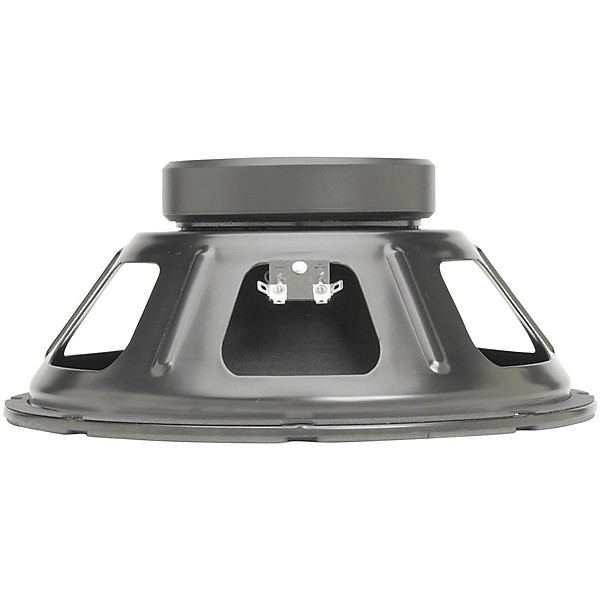

Open Box Eminence Legend V128 12" 120 Watt Vintage British Tone Speaker Level 1 8 Ohm

Specs

Specifications:
  • Basket diameter: 12" (304.8 mm)
  • Impedance: 8 or 16 Ohms
  • Power Rating**: 120Wrms**
  • Voice Coil Diameter: 1.75", 44.5mm
  • Coil Material: Copper
  • Flat/Round Coil Wire: Round
  • Coil Former Material: Kapton
  • Basket Type: Stamped Steel
  • Cone Surround Material: Paper
  • Dust Cap Material: Felt
  • Magnet Weight: 38oz.
  • Usable Bandwidth (Fs to -3dB): 80Hz - 4.5kHz
  • SPL*: 100dB*
Materials
  • Basket: Pressed Steel
  • Voice Coil: Polyamide-Imide Coated Copper
  • Dust Cap: Solid Composition Felt
  • Cone: Paper
  • Surround: Paper Cone Edge
  • Magnet: Ferrite
Mounting Information:
  • Nominal Basket Diameter: 12.02", 305.2mm
  • Baffle Hole Diameter: 10.97", 278.6mm
  • Mounting Holes Diameter: 0.25", 6.4mm
  • Mounting Holes B.C.D.: 11.63", 295.3mm
  • Depth: 6.06", 154mm
  • Shipping Weight: 9.4 lbs., 4.3 kg.
Thiele-Small Parameters:
  • Resonant Frequency (fs): 89Hz
  • Impedance (Re): 6.37 Ohms
  • Coil Inductance (Le): 0.64mH
  • Electromagnetic Q (Qes): 0.83
  • Mechanical Q (Qms): 11.98
  • Total Q (Qts): 0.77
  • Compliance Equivalent Volume (Vas): 39.4 liters, 1.39 cu. ft.
  • Peak Diaphragm Displacement Volume (Vd): 41cc
  • Mechanical Compliance of Suspension (Cms): 0.10mm/N
  • BL Product (BL): 11.5 T-M
  • Diaphragm Mass inc. Airload (Mms): 31 Grams
  • Equiv. Resistance of Mechanical Suspension Loss (Rms): 1.44N*sec/M
  • Efficiency Bandwidth Product (EBP): 108
  • Voice Coil Overhang (Xmax): 0.8mm
  • Surface Area of Cone (Sd): 519.5cm2
  • Impedance at Resonance (Zmax): 99 Ohms
