Description

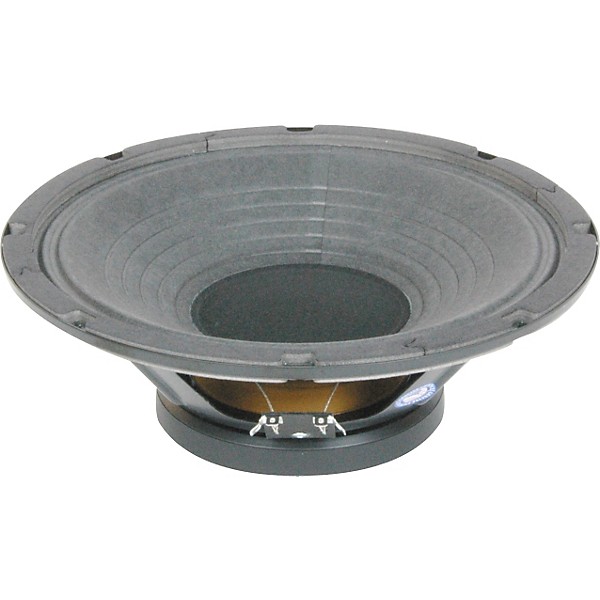

The Eminence Legend 10516 10" Guitar Speaker delivers a very meaty tone, but with sparkle, definition and a smooth top-end. This Eminence speaker works great for blues, country, and rock. High power, vintage, seamed cone tonality for guitar.
Open Box Eminence Legend 10516 10" Guitar Speaker Level 1
Open Box Eminence Legend 10516 10" Guitar Speaker Level 1

Features

  • Voice Coil Diameter: 1.5", 38.1mm
  • Magnet Weight: 16 oz.
  • Power Rating.: 75W
  • Sensitivity: 100

Specs

  • Nominal Basket Diameter: 10", 254mm
  • Nominal Impedance*: 16 ohms
  • Power Rating Watts: 75W
  • Resonance: 96Hz
  • Usable Frequency Range: 100Hz-5.8kHz
  • Sensitivity***: 100
  • Magnet Weight: 16 oz.
  • Gap Height: 0.25", 6.35mm
  • Voice Coil Diameter: 1.5", 38.1mm
  • THIELE & SMALL PARAMETERS
  • Resonant Frequency (fs): 96Hz
  • DC Resistance (Re): 10.20
  • Coil Inductance (Le): 0.64mH
  • Mechanical Q (Qms): 13.80
  • Electromagnetic Q (Qes): 1.32
  • Total Q (Qts): 1.21
  • Compliance Equivalent Volume (Vas): 21.8 liters / 0.8 cu. ft.
  • Peak Diaphragm Displacement Volume (Vd): 0cc
  • Mechanical Compliance of Suspension (Cms): 0.13mm/N
  • BL Product (BL): 9.9 T-M
  • Diaphram Mass inc. Airload (Mms): 21 grams
  • Efficiency Bandwidth Product (EBP): 73
  • Maximum Linear Excursion (Xmax): 0.0mm
  • Surface Area of Cone (Sd): 344.9 cm2
  • MOUNTING INFORMATION
  • Recommended Enclosure
  • Sealed: Acceptable
  • Vented: Acceptable
  • Overall Diameter: 10.11", 256.8mm
  • Baffle Hole Diameter: 9.13", 231.8mm
  • Front Sealing Gasket: fitted as standard
  • Rear Sealing Gasket: fitted as standard
  • Mounting Holes Diameter: 0.23", 5.7mm
  • Mounting Holes B.C. D.: 9.6", 243.8mm
  • Depth: 4.1", 104mm
  • Net Weight: 4.3 lbs., 2 kg
  • Shipping Weight: 5.4 lbs., 2.5 kg
  • MATERIALS OF CONSTRUCTION
  • Coil Construction: Copper voice coil
  • Coil Former: Polyimide former
  • Magnet Composition: Ferrite magnet
  • Core Details: Non-vented core
  • Basket Materials: Pressed steel basket
  • Cone Composition: Paper Cone
  • Cone Edge Composition: Paper cone edge
  • Dustcap Composition: Solid composition felt dust cap
  • FOOTNOTES
  • *Please consult www.eminence.com for specifications of models with alternative impedances.
  • **Multiple units exceed published rating evaluated under EIA 426A noise source and test standard while in a free-air, non-temperature controlled environment.

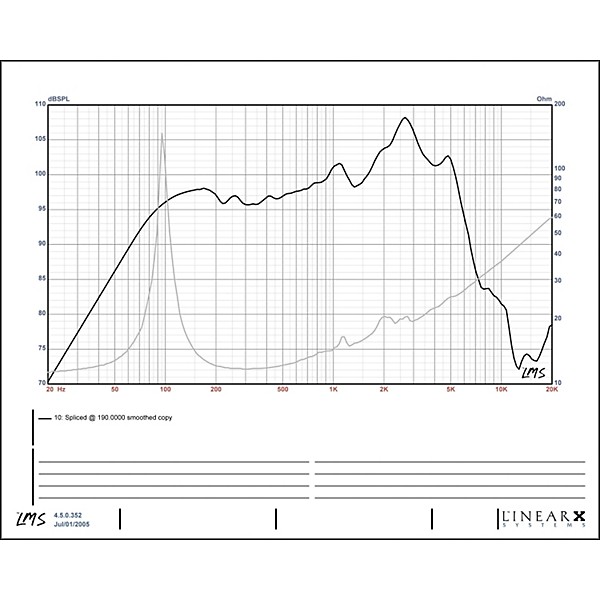

  • ***The average output across the usable frequency range when applying 1W/1M into the nominal impedance. Ie: 2.83V/8ohms, 4V/16ohms. Eminence response curves are measured under the following conditions: All speakers are tested at 1w/1m using a variety of test set-ups for the appropriate impedance | LMS using 0.25" supplied microphone (software calibrated) mounted 1m from wall/baffle | 2ft. X 2ft. baffle is built into the wall with the speaker mounted flush against a steel ring for minimum diffraction | Hafler P1500 Trans-Nova amplifier | 2700 cu.ft. chamber with fiberglass on all six surfaces (three with custom-made wedges).
  • ****BETA 8CX, 10CX, 12CX and ACOUSTINATOR CX2008 are coaxial speakers with tweeter sold separately. Published Usable Frequency response contingent upon use of APT 50 HF Driver.
