Description

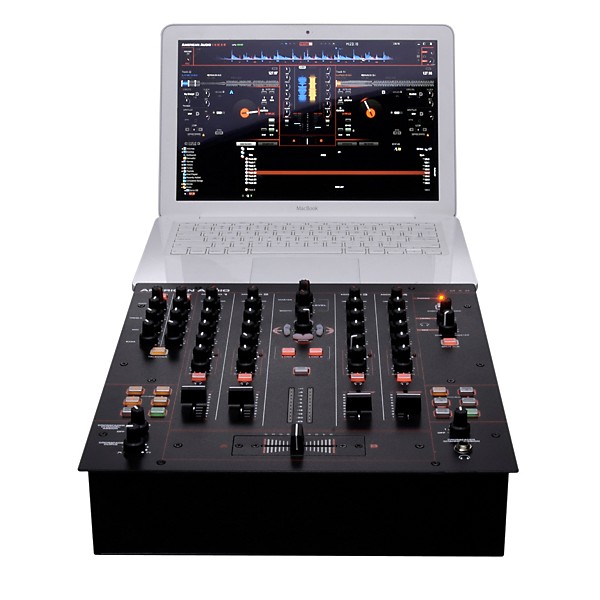

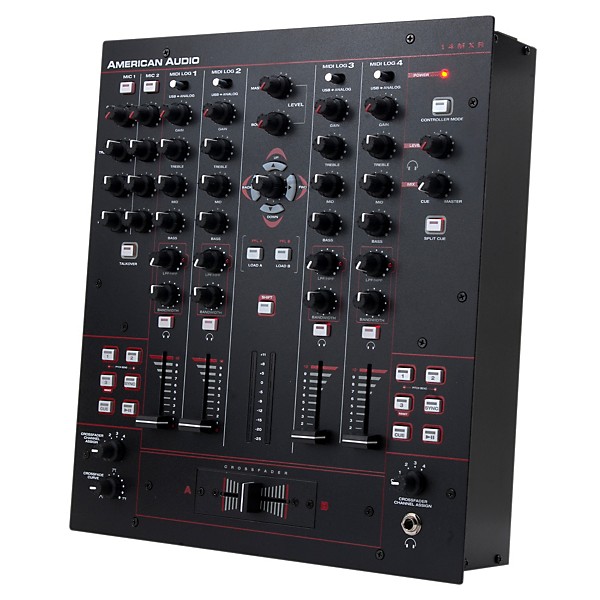

The American Audio 14 MXR is more than just a standard 4-channel DJ mixer; its a MIDILOG mixer that features both MIDI and analog control, with a DSP D-Core sound card that features a 4-in x 4-out audio interface. The 14 MXR gives you the tactile feel and operation of a traditional DJ mixer, with the ability to play and control music from software on your computer. There are two balanced XLR outputs, with MIDI Navigation Controls and user assignable control buttons to make it easy to customize and play your music.
Open Box American Audio 14MXR 4-Channel MIDILOG DJ Mixer Level 1
Open Box American Audio 14MXR 4-Channel MIDILOG DJ Mixer Level 1
Open Box American Audio 14MXR 4-Channel MIDILOG DJ Mixer Level 1

Features

14-inch, 4-Channel MIDILOG Mixer
Inputs: 4 Line, 2 Phono, 2 Mic
20 On-board Midi Control Buttons (Mapable)
MIDI interface (USB MIDI I/O)
Built-in DSP D-Core Sound Card with 4-In/4-Out audio interface
USB output streams are routed through master and headphone outputs in controller mode
Balanced XLR Outputs
3-Band EQ with Rotary Kills (Treble, Mid & Bass)
Midi Navigation Controls to allow easy software navigation of your music library
Crossfader Curve Adjustment
Crossfader Channel Assign
Master, Booth, Headphone Level & Mix Controls
Microphone Volume Control, Talkover + 3-Band EQ (Treble, Mid & Bass)
Low/High Pass Filter with Bandwidth Control per channel

Specs

10 segment VU meter
Audio inputs: RCA
Microphone inputs: 2 x Balanced TRS/XLR Combo
Headphone input: ¼ Stereo
Multi-voltage operation: AC 100V240V 50/60Hz
Dimensions (LxWxH): 14.25x13.75x 3.5 / 356x320x85mm
Weight: 10 lb. / 4.5 kg.
