Midas PRO SERIES DL154 Digital Stage Box

DL154 is a 2U 19" fixed-configuration rack I/O unit with 8 mic/line level inputs and 16 line level outputs and delivers legendary MIDAS sound quality utilizing time-tested and road-proven technologies. Featuring award-winning MIDAS microphone preamplifiers with 2.5 dB analogue gain steps and two AES50 network ports providing dual redundancy, the DL154 is the ideal partner to all MIDAS PRO and M32 Series digital consoles, enabling a digital snake connection from Front of House to stage.

Award-Winning MIDAS Microphone Preamplifier
The MIDAS microphone preamplifier is considered by leading live sound and recording engineers to be the very essence of the famous MIDAS sound. More than 40 years of design experience paired with the finest choice of premium-grade components lead to the acclaimed warmth and depth - bringing out subtle ambience, maintaining spatial positioning and more effectively capturing a precise sound image. The acclaimed sound of the award-winning MIDAS microphone preamplifier has inspired generations of live sound engineers to their best work, creating sonic panoramas that have captivated audiences worldwide.

Digital Audio Networking
SuperMAC (AES50-Compliant) digital audio networking technology from KLARK TEKNIK simultaneously provides high channel counts, ultra low and deterministic latencies, sample-synchronous and phase-aligned networked clock distribution, error detection and correction, network redundancy, and ease of deployment and use – to meet the demanding requirements of live concert touring.

High Output Drive Line Outputs with Mute

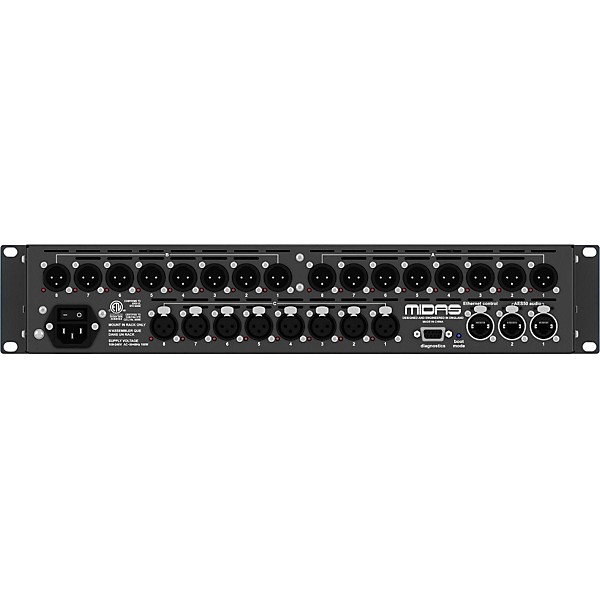

DL154 features 16 active servo-balanced low impedance line level outputs with high output current capability for driving long cable runs. The outputs feature an automatic mute facility if the audio signal path is muted by the mixing console operator, and individual LED indicators are provided for each output connector.

Remote Console or Front Panel Control

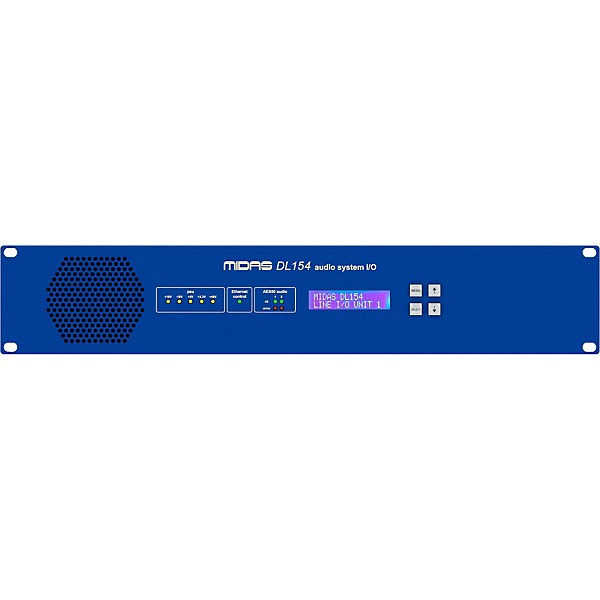

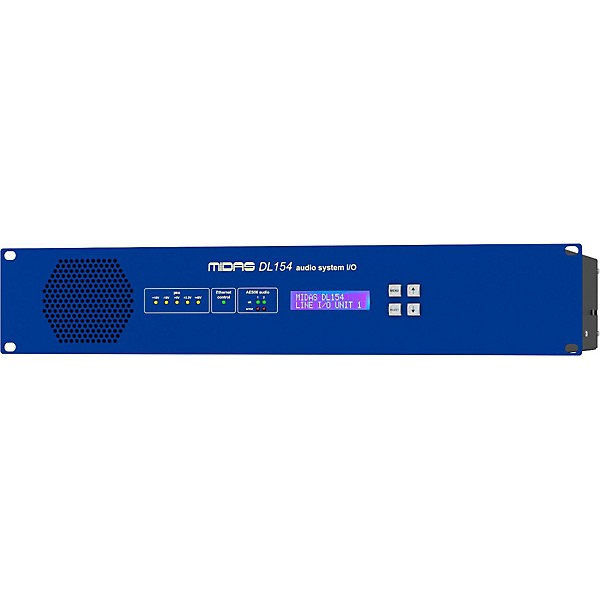

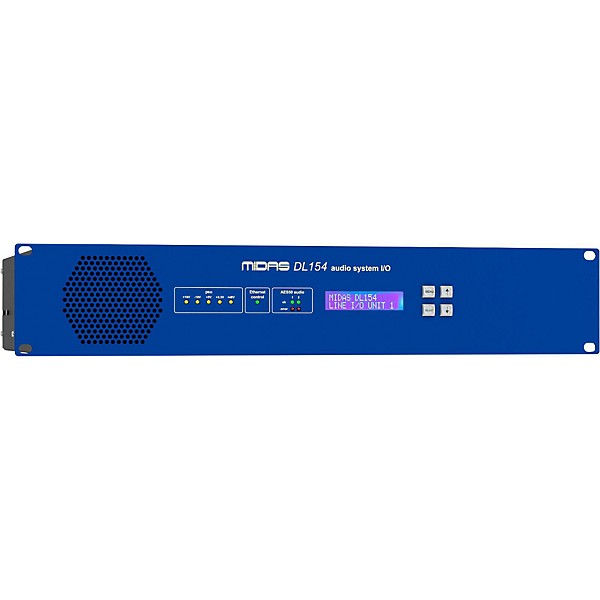

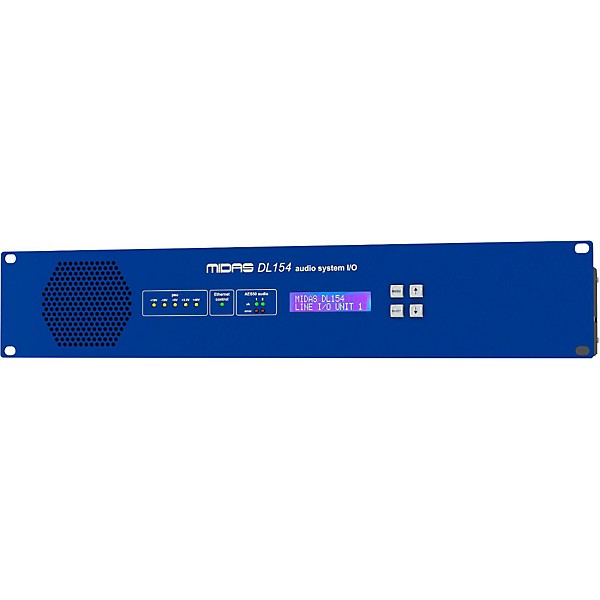

All configuration settings for DL154 can be set either remotely from the mixing console, or directly via the intuitive and easy to understand front panel. DL154 features a front panel LCD display with intuitive menu navigation for all configuration options with LED status indicators, which provide clear feedback of operational status over wide viewing angles and distances. Clear indication is provided showing power supply output rail condition and AES50 and Ethernet network connection status and activity.
