Description

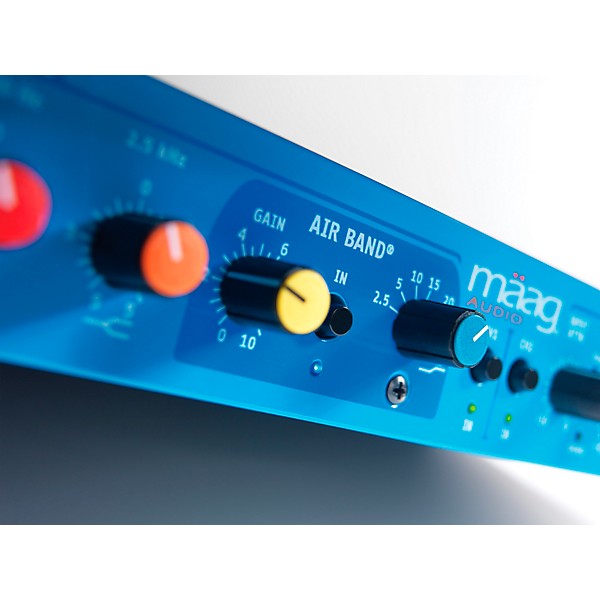

The EQ4m™ is a 6-band dual channel mastering EQ with Air Band® (shelf boost from 2.5 to 40khz), a true in/out bypass, a transparent input attn (attenuator), and stepped (detent) controls.

In 1993, Cliff Maag first introduced the Air Band® to the audio world in the NTI EQ3. The EQ3 was a dual channel 6-band EQ powered in a 19” inch rack and remains one of the most musical equalizers ever made. Over two decades later, MAAG Audio has captured the spirit of the EQ3 in the EQ4m™ by providing more power, more headroom, and more control than ever before.

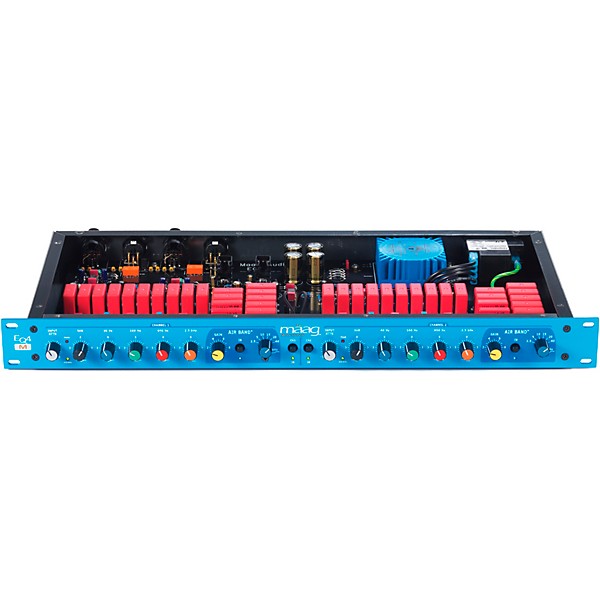

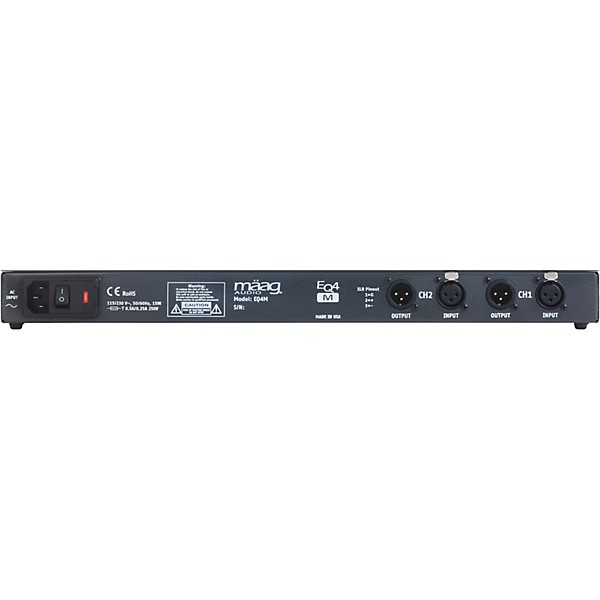

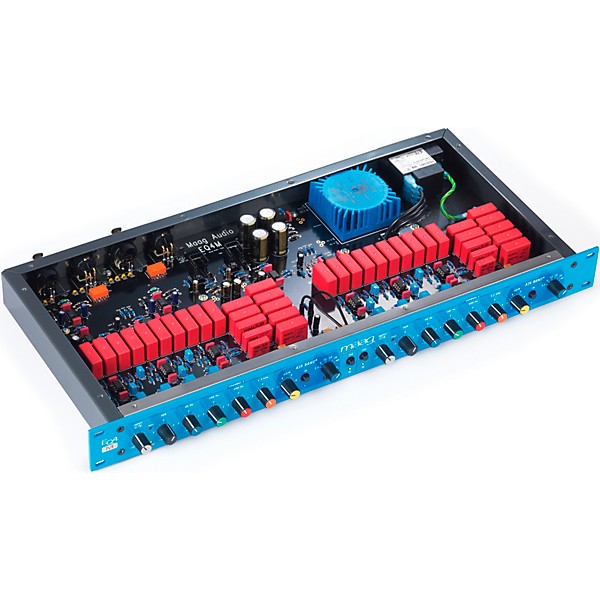

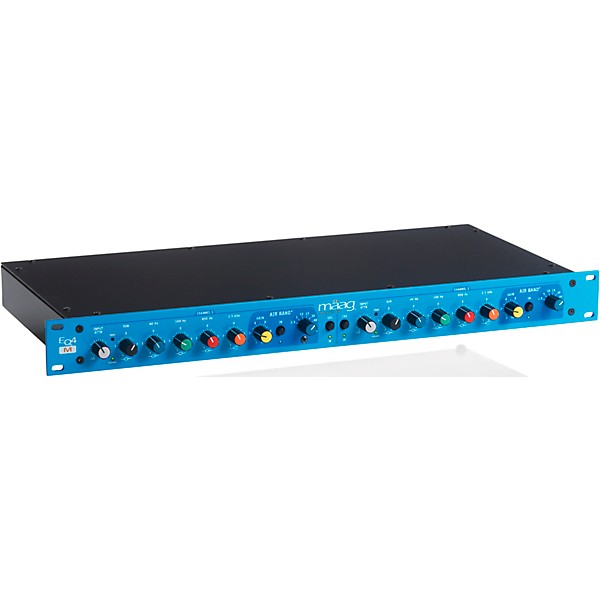

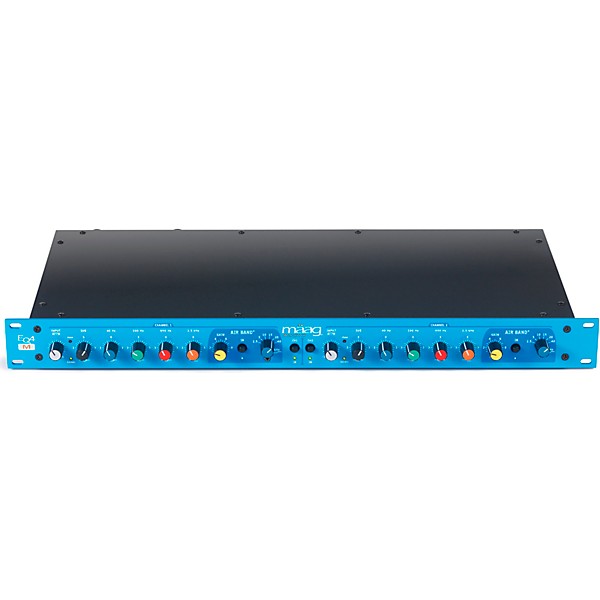

Maag Audio MAAG EQ4M 6 Band Dual Channel Mastering EQ
Maag Audio MAAG EQ4M 6 Band Dual Channel Mastering EQ
Maag Audio MAAG EQ4M 6 Band Dual Channel Mastering EQ

Features

  • The EQ4M™ rides on extremely clean +-18v rails without the need of any supporting chassis or power source
  • The EQ4M has an extra 2v compared to the EQ4M and boosts headroom to +29 dbu.\
  • The EQ4M offers true in/out bypass, a transparent input attn (attenuator), and a15 khz selection on Air Band®
  • All controls are stepped (detented)

Specs

  • Frequency Response: -2 dB points, 10Hz & 75kHz
  • Nominal Input Impedance (XLR): 48 K Ohms, balanced
  • Nominal Output Impedance (XLR): 50 Ohms, balanced
  • Headroom: +29 dBu @ 10 K Ohms, +28.5 dBu @ 600 Ohms
