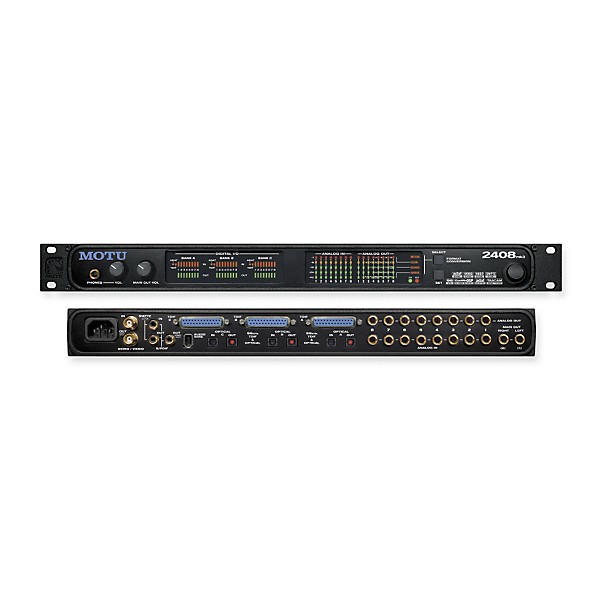

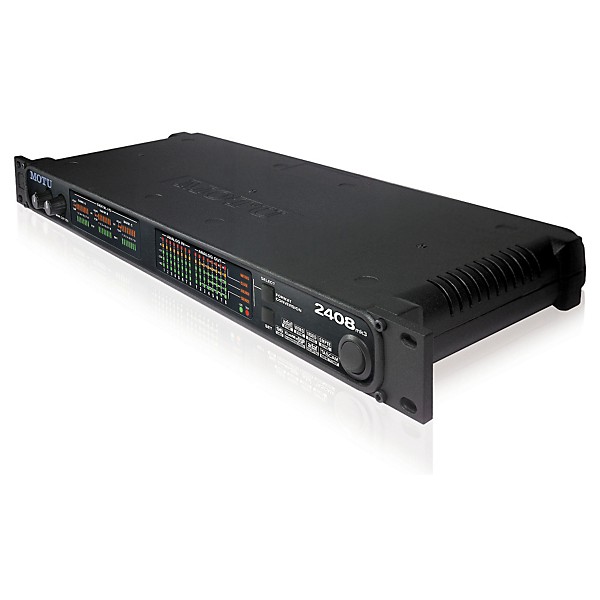

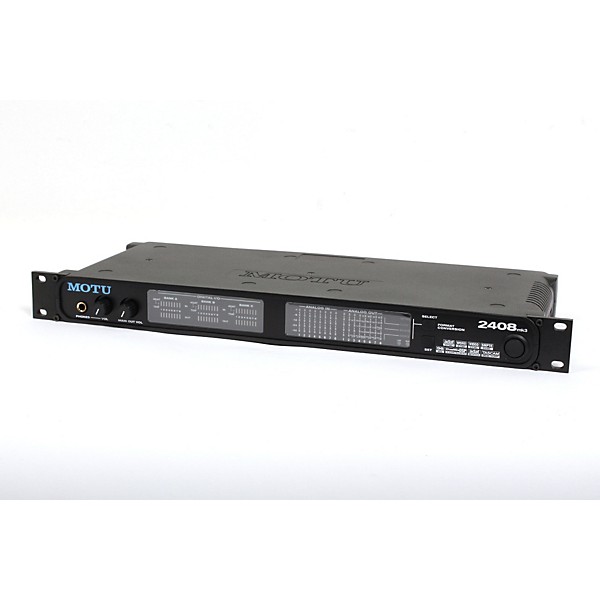

MOTU 2408mk3 Expansion I/O

The MOTU 2408mk3 contains everything you need to turn your computer into a powerful 24-bit/96kHz digital audio workstation. The 2408mk3 provides 8 channels of pristine 96kHz analog recording and playback, combined with 24 channels of ADAT and Tascam digital I/O - the most ever offered in a single rack space audio interface. Connect up to four interfaces to the included PCI-424 card for an expanded system capable of 96 simultaneous active input and output connections at 96kHz.

The 2408mk3 is ideal for both the computer-based studio with no mixing board and more elaborate studios built around a digital mixer of any size.

For the computer-based studio, the included PCI-424 card features CueMix DSP, a flexible DSP-driven mixing and monitoring matrix that eliminates the need for an external mixer or patch-bay. Connect all of your studio gear, including synths, keyboards, and even effects processors. Then control it all from your desktop with no audible monitoring latency and no processor drain on your computer.

With 24 channels of digital I/O, the 2408 is ideal for connecting your computer to a digital mixer. Both ADAT lightpipe and Tascam TDIF digital connections are supported at any sample rate up to 96kHz.

And here' another 2408mk3 first: built-in video and SMPTE synchronization. Slave your entire workstation directly to video or SMPTE time code with sub-frame accuracy”without a dedicated synchronizer.

The 2408mk3 provides cross-platform compatibility for Mac and Windows with all of your favorite audio software and host-based effects. Or you can use the included AudioDesk workstation software for Mac OS X, with 24-bit recording/editing and 32-bit mixing/processing/mastering.

The 2408mk3 upgrades the award-winning 2408 with many significant improvements including 96kHz support, SMPTE synchronization, support for four interfaces and a 96-channel DSP-driven monitor mixer.

Expansion
A core 2408mk3 system provides 24 inputs and outputs, but it also offers the most expansion ever offered in a single PCI card. Up to four interfaces can be connected to the PCI-424 for up to 96 channels of simultaneous input and output at sample rates up to 96kHz.

Think about the possibilities: you could connect 12 ADATs and 12 DA-88s to your computer, along with 32 channels of analog I/O, and simultaneously record and play as many tracks of audio as your computer allows. If you have a digital mixer, the 2408mk3 provides up to 96 channels of digital I/O at 44.1 or 48kHz, and 48 channels at 88.2 or 96kHz.
