IK Multimedia 7.1.4 iLoud MTM MKII Immersive Studio Monitor Bundle - Black

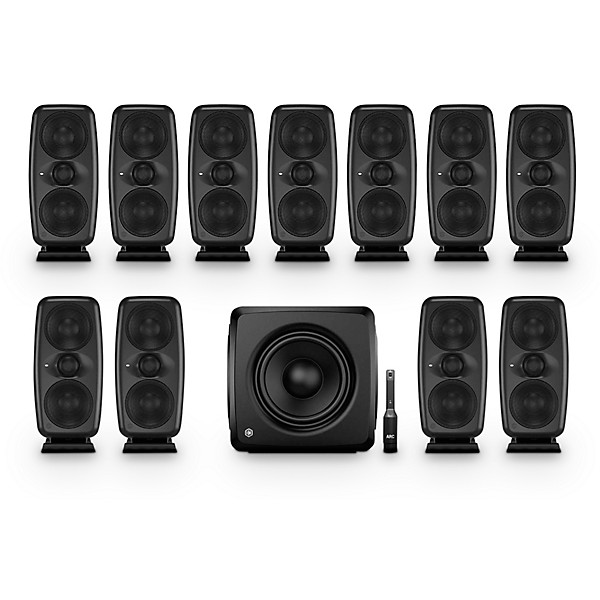

The IK Multimedia 7.1.4 iLoud MTM MKII immersive studio monitor bundle gives serious spatial audio rooms a complete 11-speaker monitoring layout built from matched MTM MKII monitors. The bundle includes 11 iLoud MTM MKII speakers for front, surround and height-channel placement, plus one iLoud Sub, an ARC microphone and ARC X Immersive software for system calibration. Using matched MTM MKII monitors across all 11 positions helps maintain consistent imaging, output and tonal response as sound moves between channels, which is critical in Atmos-style music production, post-production and immersive mixing rooms where placement accuracy shapes the listening experience. Each MTM MKII monitor pairs dual 3.5" mid-woofers with a 1" back-chambered silk-dome tweeter, 100W RMS Class D power and 48Hz–28kHz +/-2dB response for compact but capable monitoring. The iLoud Sub adds 25Hz low-end extension for LFE monitoring, bass management and deeper playback decisions across the full 7.1.4 system.

MTM Speakers for 7.1.4 Immersive Imaging

The iLoud MTM MKII 7.1.4 bundle builds a full immersive monitoring layout from 11 matched MTM MKII studio monitors: seven ear-level speakers, one subwoofer channel and four height channels. Each monitor uses dual 3.5" composite cellulose fiber mid-woofers and a 1" low-distortion back-chambered silk-dome tweeter in a 2-way, 3-speaker MTM configuration, giving the system the imaging accuracy and controlled dispersion needed for front, surround and overhead placement. In Dolby Atmos and spatial audio workflows, that consistency helps engineers judge how dialogue, vocals, effects, ambience and object-based movement translate around and above the listening position. With 48Hz–28kHz +/-2dB response, 112.5dB half-space peak SPL and coherent phase response within +/-15 degrees from 200Hz–20kHz, the MTM MKII speakers provide the detail, headroom and spatial precision needed for demanding compact mix rooms.

ARC X Immersive for Multi-Channel Calibration

ARC X Immersive supports multi-channel room correction, level matching and time alignment across the 7.1.4 system. That guided calibration workflow helps reduce setup complexity in rooms where speaker distance, mounting height, boundary placement and room response all affect the immersive image. Built-in digital calibration and ARC X control at the monitor level give users a more consistent way to manage the full system, from front channels and surrounds to height speakers.

iLoud Sub With 25Hz Low-End Extension

The included iLoud Sub supplies the low-frequency foundation for the system with a 6.5" aluminum woofer, dual 6.5" passive radiators and 160W RMS Class D amplification. Its 25Hz–150Hz response supports LFE monitoring, bass management, low-end editing and playback decisions for immersive music and post-production workflows. Built-in ARC X room correction helps align the subwoofer with the satellite monitors, while digital crossover control supports integration with the MTM MKII speakers.

Compact Professional System for Spatial Audio Rooms

The MTM MKII monitors include tilting stands, horizontal support feet and placement controls for LF extension, LF trim, HF trim and desk position, giving users practical options for immersive room layout. Balanced combo XLR-1/4" TRS inputs, ARC microphone input and USB-B connectivity support calibration and studio integration, while the iLoud Sub adds XLR, RCA, USB and Bluetooth options. For studios that need compact speakers but want greater output, imaging precision and calibration depth than an entry-level immersive setup, the IK Multimedia 7.1.4 iLoud MTM MKII immersive studio monitor bundle delivers a professional monitoring system built for serious spatial audio production.
