Description

The Hosa Edge DB25 to XLRF analog audio snake gives engineers an 8-channel balanced analog connection for routing DB25-equipped interfaces, patchbays, consoles and microphone preamps to XLR female breakout connections. Built with 24 AWG oxygen-free copper conductors, XLPE insulation and individual 58-strand spiral shields, this Hosa Edge snake is designed for low capacitance, RFI/EMI rejection and transparent studio signal transfer. Die-cast metal DB25 housing adds shielding and physical protection, while genuine Neutrik XX-Series XLR female connectors with black metal housings and gold contacts support reliable mating durability in professional environments. Wired to the analog TASCAM D-Sub standard for compatibility with Avid, RME, UA, Yamaha and other standard DB25 interfaces, this snake is available in multiple lengths for flexible studio wiring.

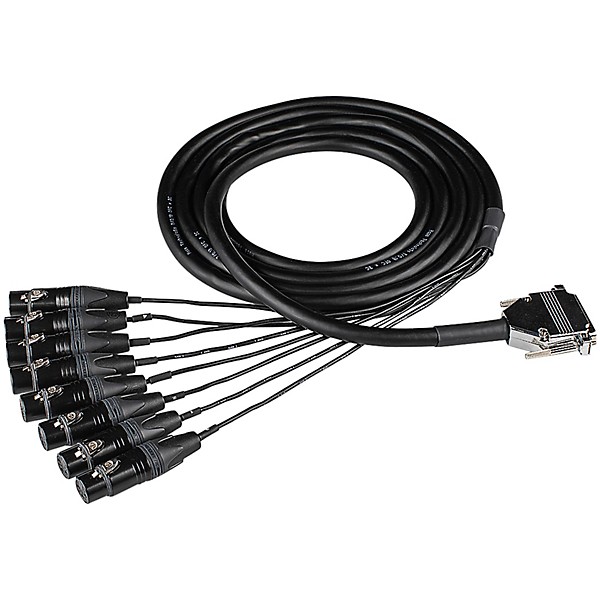

Hosa Edge Analog Audio Snake - DB25 to XLRF, 1 m

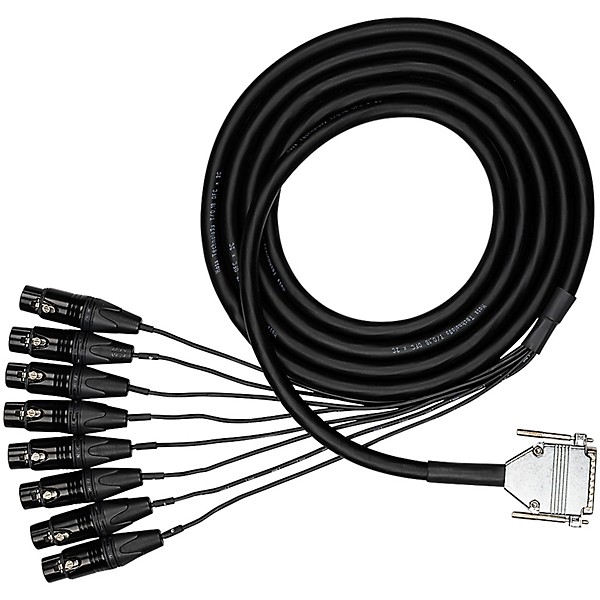

Hosa Edge Analog Audio Snake - DB25 to XLRF, 1 m

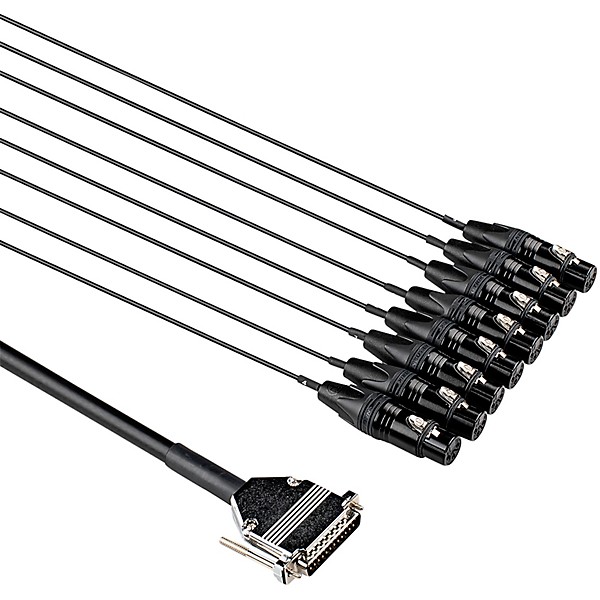

Hosa Edge Analog Audio Snake - DB25 to XLRF, 1 m

Features

  • 8-channel DB25 to XLRF analog audio snake
  • Wired to the analog Tascam D-Sub standard
  • 24 AWG oxygen-free copper conductors support signal clarity
  • XLPE insulation provides low capacitance and thermal stability
  • Individual 58-strand spiral shields help reject RFI and EMI
  • Die-cast metal DB25 hood adds shielding and physical protection
  • Neutrik XX-Series XLR female connectors feature gold contacts
  • Supports Avid, RME, UA, Yamaha and standard DB25 interfaces
  • Available in 1 m, 2 m, 3 m and 4 m lengths

Specs

General
  • Product type: Analog audio snake
  • Series: Edge
  • Model: EDGE DB25 to XLRF Snake
Configuration
  • Channels: 8
  • Connector format: DB25 to XLRF
  • Pinout: Analog Tascam standard
  • Compatibility: Avid, RME, UA, Yamaha and standard DB25 interfaces
  • Available lengths: 1 m, 2 m, 3 m, 4 m
Conductors & Shielding
  • Conductor material: Oxygen-free copper
  • Conductor gauge: 24 AWG
  • Dielectric: XLPE cross-linked polyethylene
  • Shielding: Individual 58-strand spiral shields
Connectors
  • DB25 connector: Die-cast metal hood
  • XLR connectors: Neutrik XX-Series XLR female
  • XLR housing: Black metal
  • XLR contacts: Gold
Use Case
  • Applications: Microphone preamps, patchbays, consoles, DB25 interfaces and studio routing
