Galaxy Audio

Description

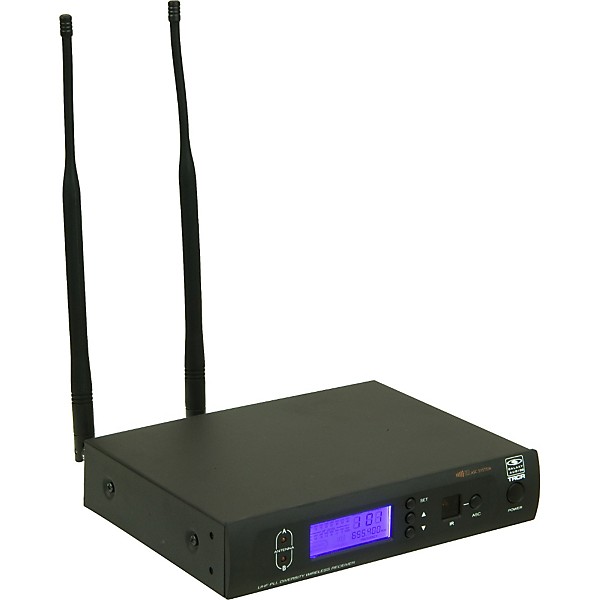

The Galaxy Audio TRC Wireless Microphone System features the TRCR UHF diversity receiver with 120 selectable channels. It uses IR Sync to link its frequency to the HH64SC microphone. The LCD display on the TRCR receiver shows channel number, frequency, volume output, and RF/AF indicator, while the HH64SC's LCD display has a 4-bar battery life indicator, and shows you what group, channel, and frequency you're on. The HH64SC mic has a super cardioid condenser with gain adjustment. The full wireless system gives you 300' of wireless freedom.

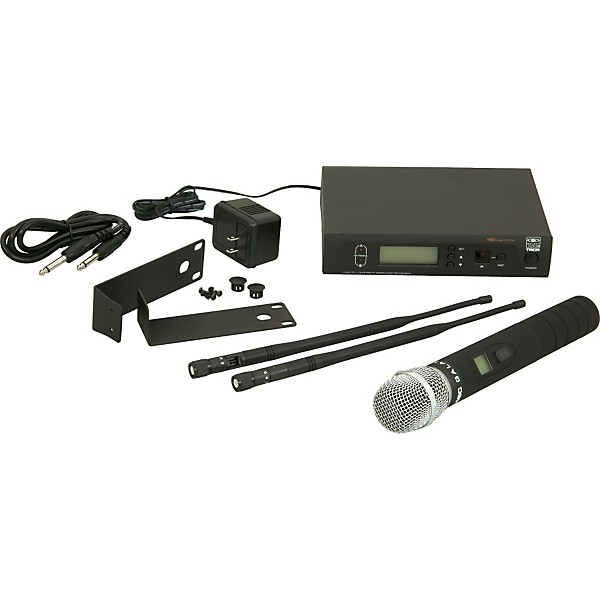

Galaxy Audio TRC/HH64SC Handheld Wireless System
Galaxy Audio TRC/HH64SC Handheld Wireless System
Galaxy Audio TRC/HH64SC Handheld Wireless System

Features

  • 300' range
  • UHF frequency

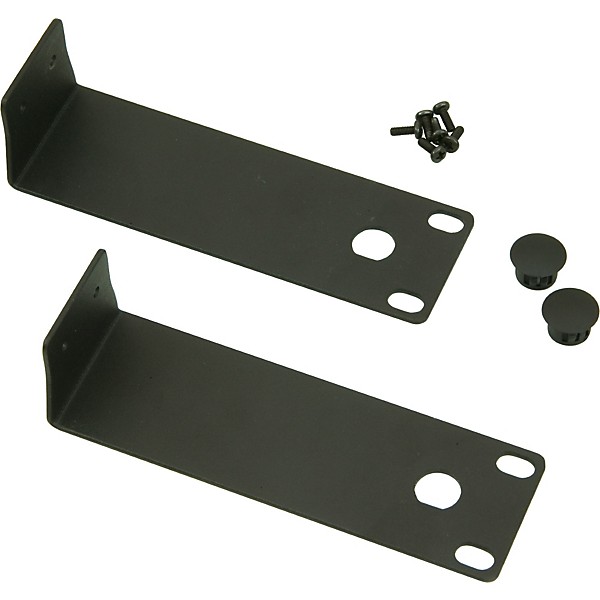

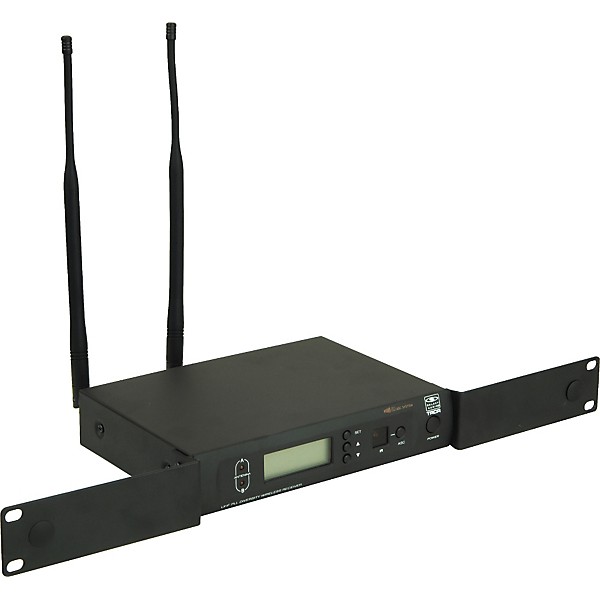

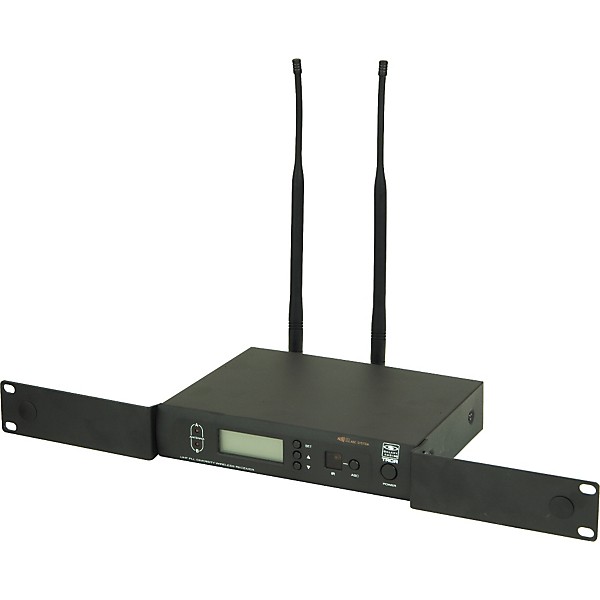

  • Single rackmount included

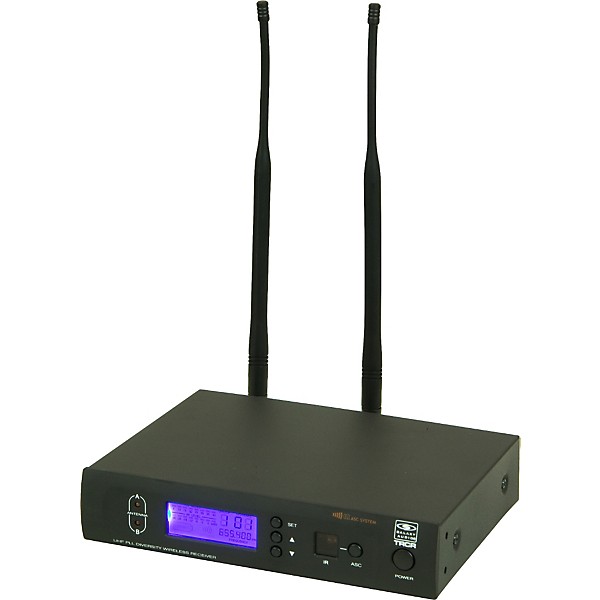

    • TRCR Wireless Receiver
    • 120 selectable channels
    • LCD display
    • AF/RF indicators
    • IR Sync
    • Diversity Antennas
    • Squelch Adjustment
    • XLR/1/4" Outputs

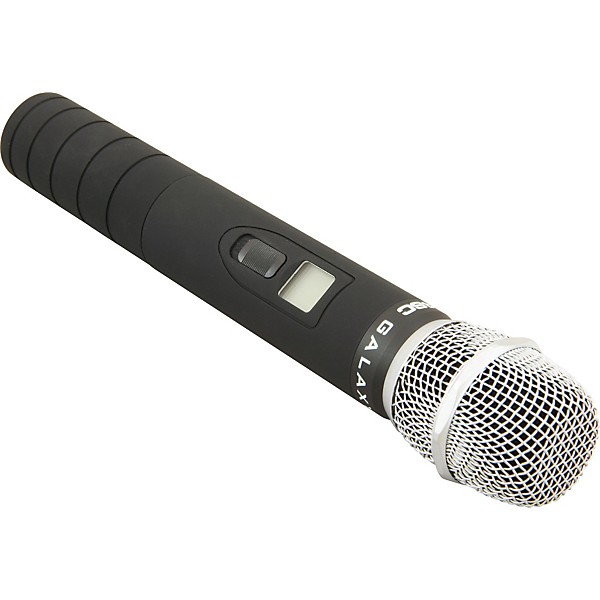

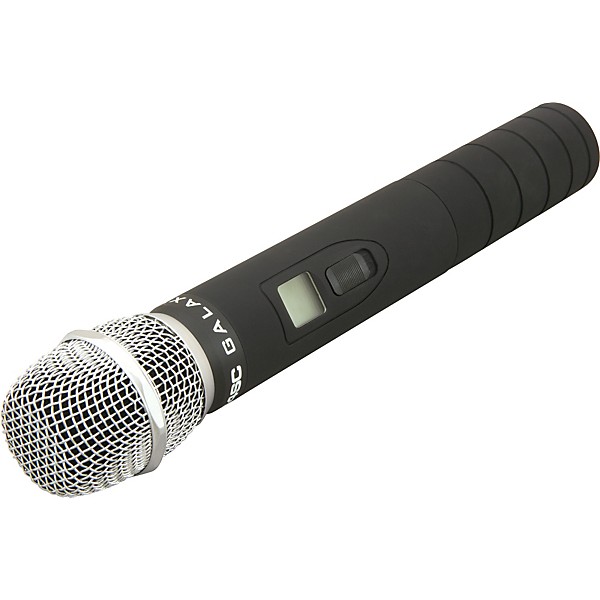

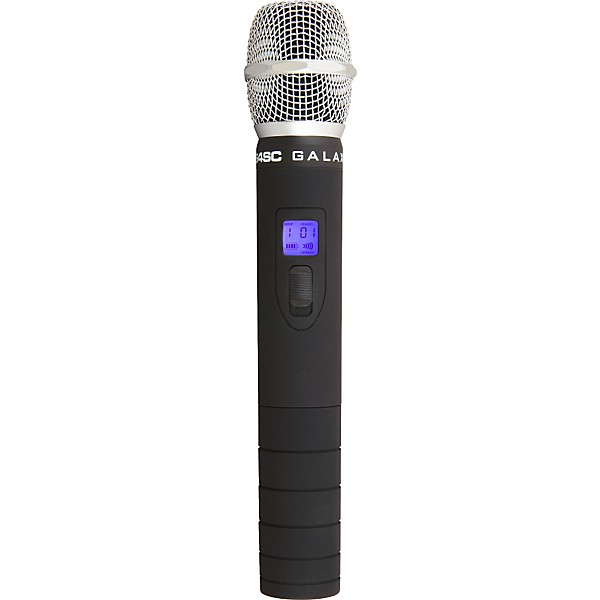

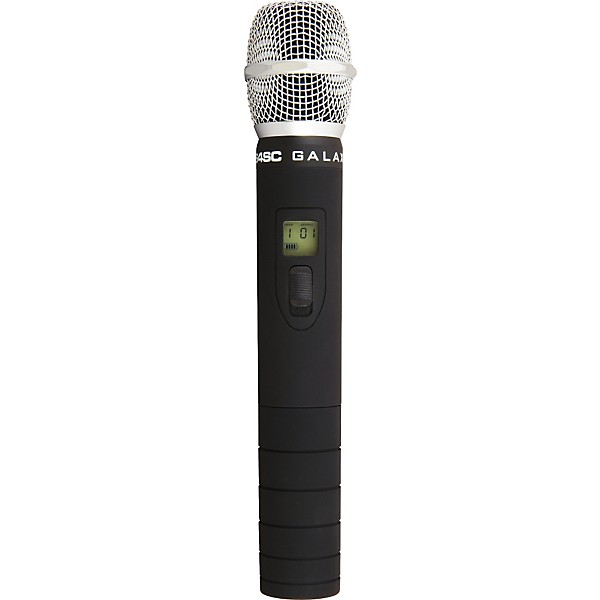

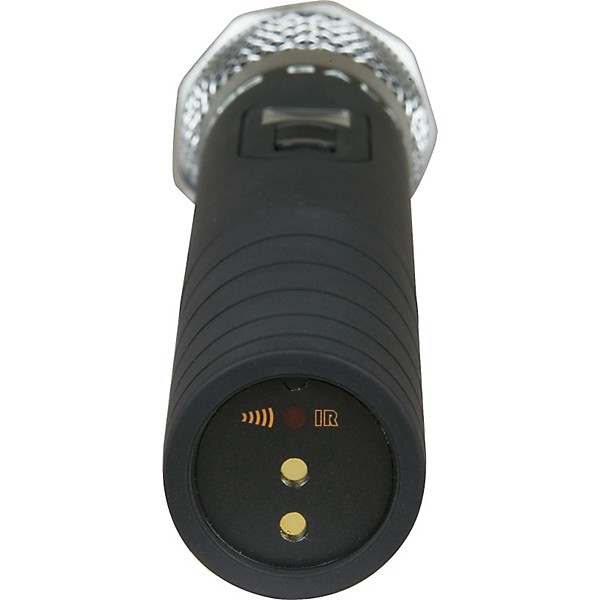

    HH64SC Wireless Microphone
    • IR Sync
    • 2 'AA; batteries
    • Mic/0/-10dB channel selector
    • Group, channel, and
    • frequency display
    • 4-bar battery life indicator
    • LCD display
    • 10mW
    • 3oz (85g)

    Specs

    System
    • Frequency Range: 655679MHz
    • Transmitter Output Level: 10dBm
    • Band: UHF
    • Operating Range: Under Typical Conditions 300' (92m)
    • Note: actual range depends on RF signal absorption, reflection, and interference
    • Audio Frequency response: ±3dB 70Hz-16KHz
    • Total Harmonic Distortion: ±30KHz deviation 1KHz tone <1%
      Dynamic Range: >90dB A-weighted
    • Operating Temperature: Range 14F to 122F (-10 C to +50 C)
    • Note: battery characteristics may limit this range

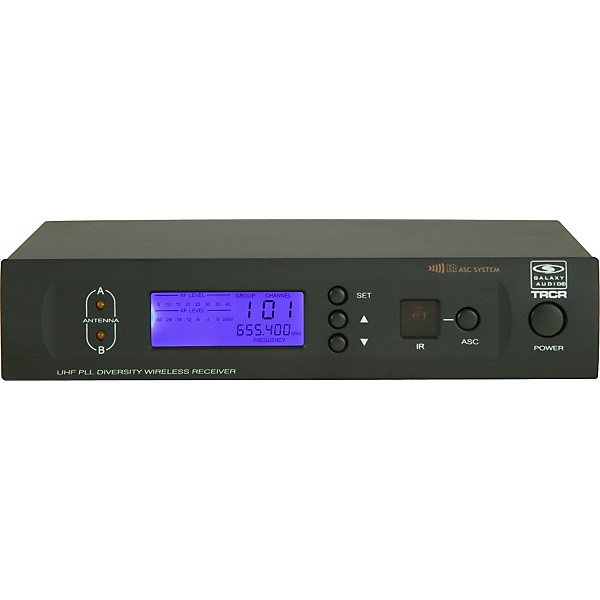

    TRCR Wirelesss Receiver

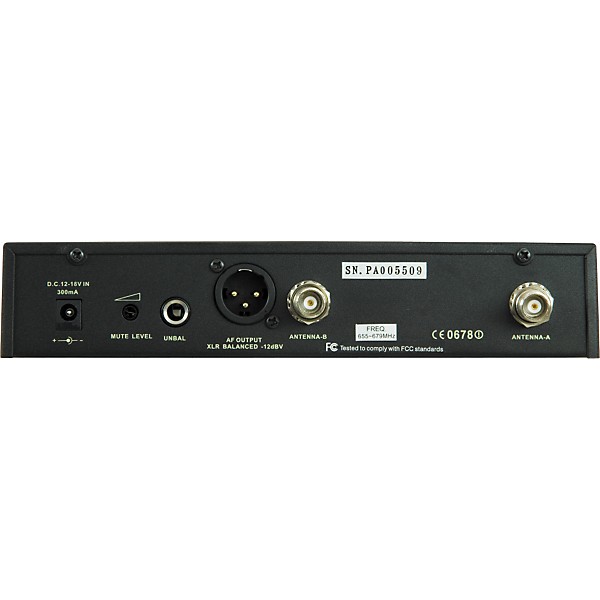

    • Audio Output Level: (±30KHz deviation, 1KHz tone) XLR connector (into 600Î load) -12dBV 1/4" connector (into 3KÎ load) -18dBV
    • Output Impedance: XLR connector 200Î 1/4" connector 1KÎ
    • XLR output: Impedance balanced
    • Pin1: Ground (cable shield)
    • Pin2: Audio
    • Pin3: No Audio
    • Sensitivity: -94dBm for 30dB SINAD, typical
    • Image Rejection: >80dB
    • Dimensions (HxWxD): 1.7" x 8.3" x 6.3", (44mm x 212mm x 160mm)
    • Weight: 32.5oz (920g)

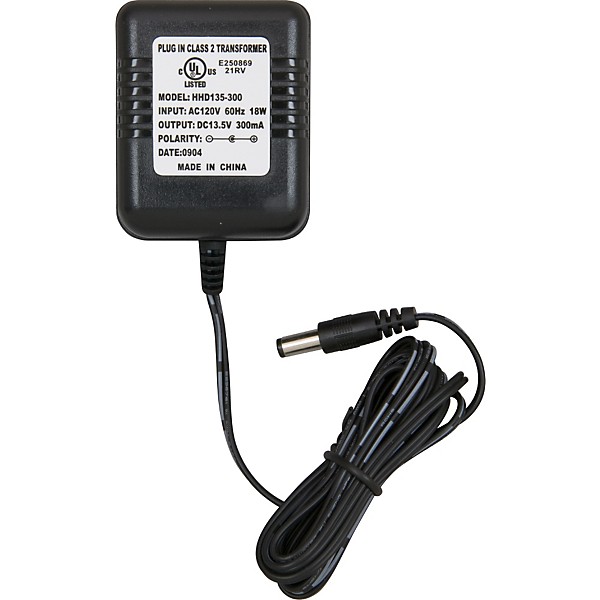

    • Power Requirements: 12-18 V DC at 400mA, supplied by external power supply
    HH64SC
    • Max Audio input level: 0dBV
    • Dimensions: 9.6" x 2" dia. (243mm x 50mm dia.)
    • Weight: 10.6oz. (300g) (without batteries)
    • Power Requirements: 2 'AA' size alkaline or rechargeable batteries
    • Battery Life: About 6 hours
