Description

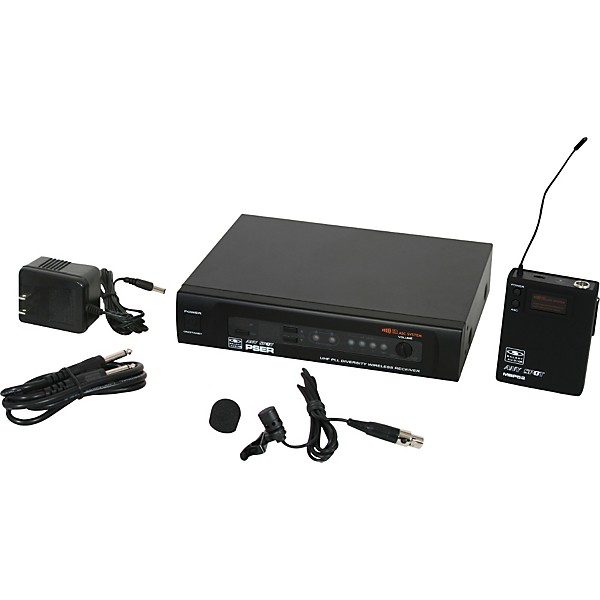

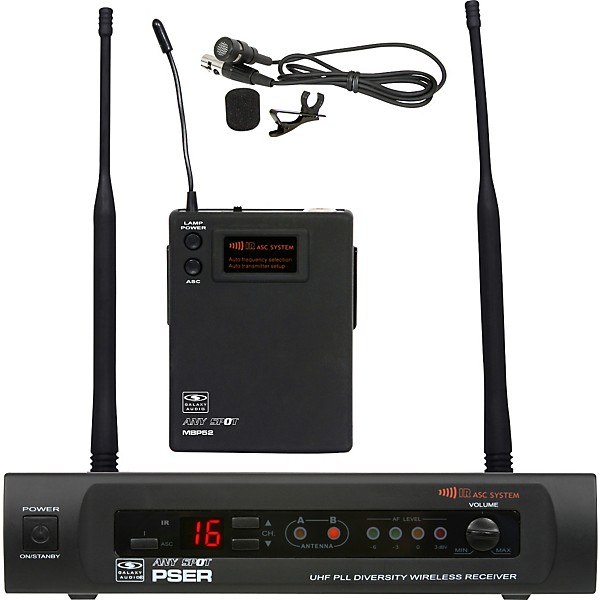

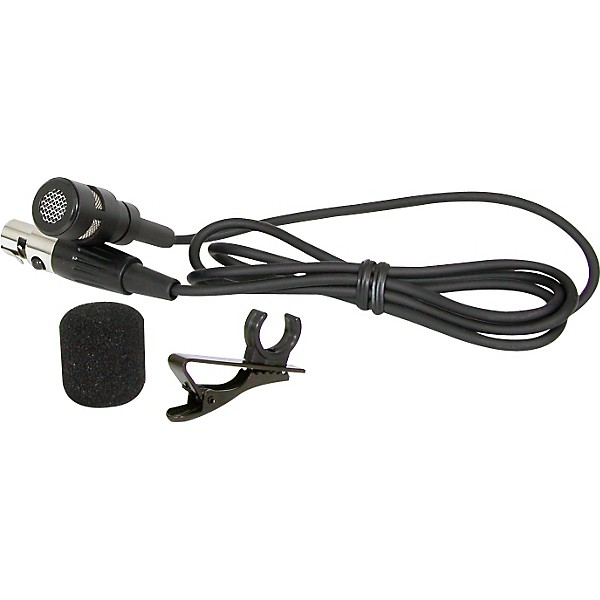

The PSE LAV system from Galaxy Audio features the PSER wireless receiver, a UHF diversity receiver with 16 selectable channels. The receiver features a volume control, channel display, and IR Sync. The PSE has an XLR ¼" output and squelch adjustment. It also comes with the MBP52 body pack and a lavalier microphone.

This microphone is ideal for worship leaders, business presenters, lecturers and others who require hands-free presentation of informational material.
Galaxy Audio PSE LAV System D
Galaxy Audio PSE LAV System D
Galaxy Audio PSE LAV System D

Features

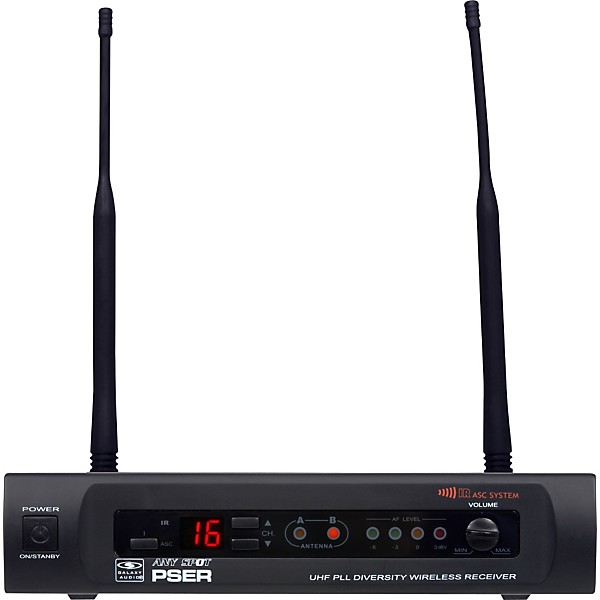

Receiver (PSER)
  • Output Volume Control
  • AF Level Indicator
  • IR Sync
  • Squelch Adjustment
  • XLR/¼" Outputs

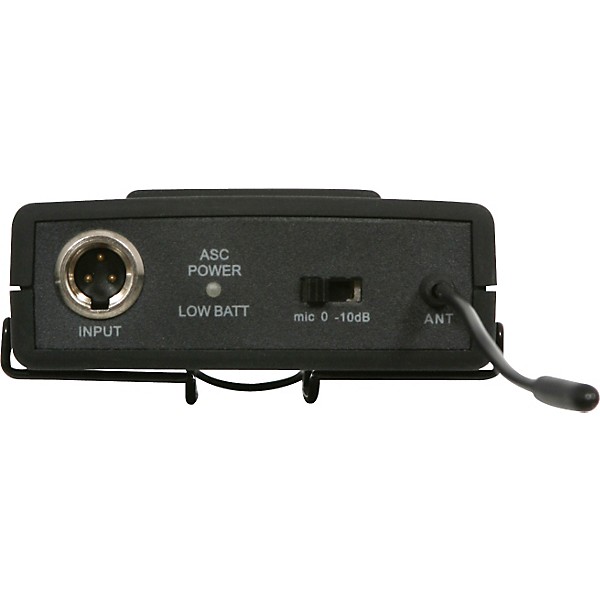

Body Pack (MBP52)
  • IR Sync
  • 2 AA Batteries
  • Mic/0/-10 dB
  • 3 Position Switch
  • Low Battery Indicator
  • 2.8 oz.

Specs

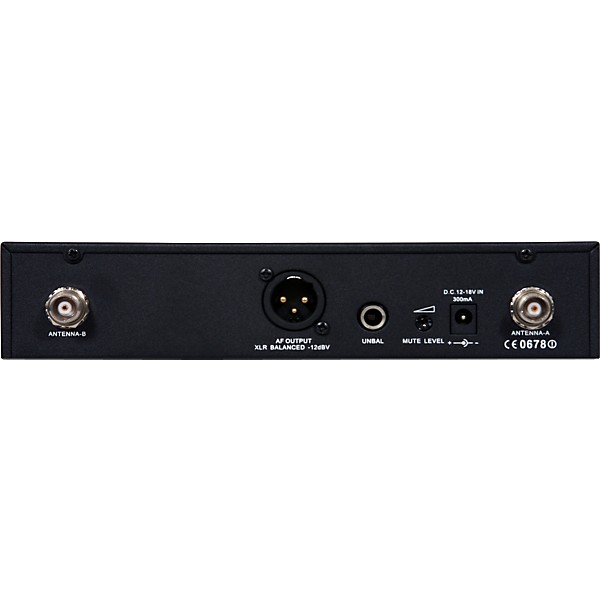

  • Audio Output Level: (+/-30KHz deviation, 1KHz tone) XLR connector (into 600 Ohms load) -12dBV ¼" connector (into 3KOhms load) -18dBV
  • Output Impedance: XLR connector 200Ohms ¼" connector 1KOhms
  • XLR output: Impedance balanced
  • Pin1: Ground (cable shield)
  • Pin2: Audio
  • Pin3: No Audio
  • Sensitivity: -93dBm for 30dB
  • Image Rejection: >90dB
  • Dimensions: 1.7" x 8.3" x 6.3"
  • (44mm H x 212mm W x 160mm D)
  • Weight: 31oz (880 g)
  • Power Requirements: 12-18 V dc at 400mA, supplied by external power supply.

Warranty

One year parts and labor warranty on all products, including power supply.
