Description

The PM-SUBmini is the small yet powerful subwoofer system which has been designed to fit perfectly with the best-selling Fostex PM0.3/0.3d as well as the newly announced PM0.1 monitor speaker system in both the sound characteristics and the physical size. The PM-SUBmini can also be added to your existing compact speakers thanks to the through-terminal for satellite speakers and variable crossover frequency control between 60/150Hz.

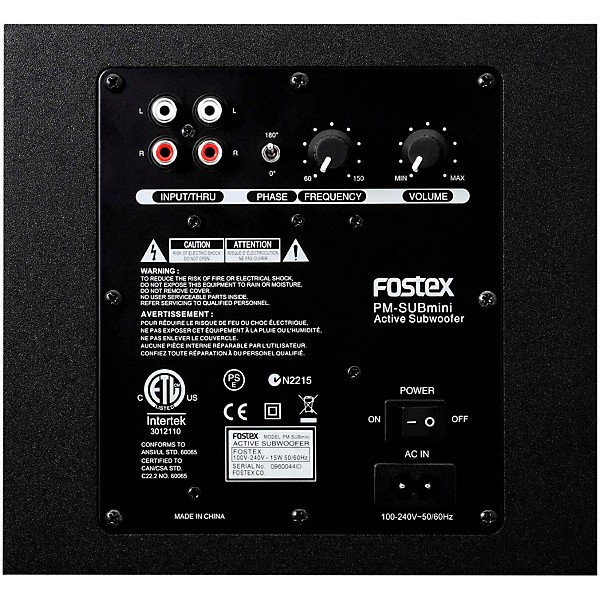

Fostex PM-SUBmini Subwoofer
Fostex PM-SUBmini Subwoofer

Features

  • The driver features high rigid fiber glass material for the diaphragm and the center cap
  • The voice coil is 4-layer wound to control the mid/highs for better lows
  • The physical measurements are exactly same as 2 x PM0.3/0.3d (except for the depth) which gives the perfect matching to the popular desktop speaker system
  • Closed type enclosure box with raftered front baffle
  • Highly efficient 50W digital amplifier with built-in PSU
  • Variable crossover frequency control between 60 / 150Hz and phase reverse switch for easy adjustment to match such main speakers as PM0.1, PM0.3/0.3d as well as any other compact speakers
  • Signal is fed to main speakers even while the power turns off
  • Automatic energy saving function puts the PM-SUBmini into sleep mode consuming only 0.5W or less after approx. 15 min. of no signal input

Specs

  • Type: Closed type
  • Speaker unit: 5" (13cm) woofer unit
  • Rated Output Power: 50W
  • Frequency Response: 40Hz - 150Hz
  • Crossover Adjustment: 40Hz - 150Hz
  • Signal to Noise Ratio: 80dB (A-Weighted)
  • Input Jack: RCA Pin Jack x 1
  • Input Impedance: 10k ohm or higher
  • Physical Dimensions WxHxD: 200 x 185 x 233 mm
  • Weight: approx. 7.4kg
  • Power Consumption: approx. 15W, less than 0.5W in stand-by mode
  • Accessories: Power cord (2m) x 1
  • Auido cable (RCA pin - RCA pin 1.5m) x 1
