Event

Description

The 20/20BAS V3 retains the character of the original EVENT 20/20 series, while incorporating massive acoustic performance advancements achieved over years of additional research. EVENT has designed and implemented an amplifier based on the topologies found in its flagship Opal monitoring system that delivers dramatically lower distortion artifacts, high dynamics and increased output.

The 20/20BAS V3 has much a lower distortion floor than many other studio monitoring systems, providing higher dynamic range, which is maintained as the output level is increased. This behavior is due to the incomparable
œsoft clipping nature of the 20/20' Class AB topology; audio playback is unfettered and remains unmasked by the distortion and inter-modulation artifacts produced by less sophisticated amplifier designs.

Fully discrete Class AB amplifiers for the tweeter and woofer provide up to 250 watts of burst power with less than .01% Total Harmonic Distortion (THD). This more than doubles the power provided by the original 20/20bas amplifier design with less than half the distortion. Sustained high output performance is ensured through a new oversized toroidal power supply that can ensure sustained extreme low frequency reproduction.

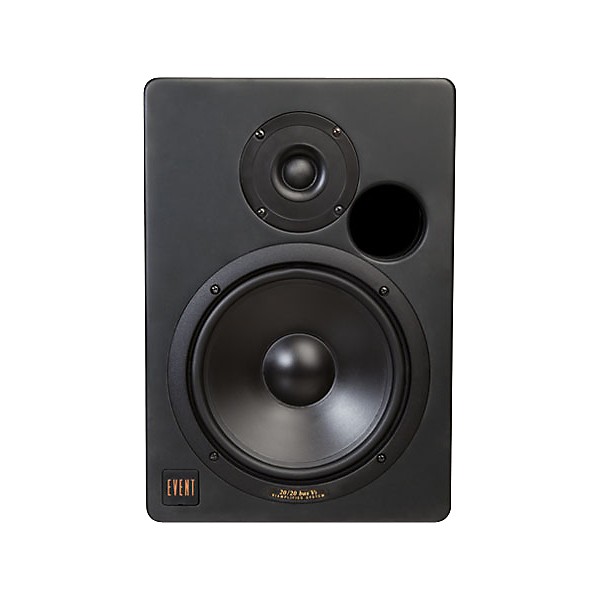

Event 2020BAS v3 Active 250W Studio Monitor with 7.1" Woofer and 1" Silk Tweeter
Event 2020BAS v3 Active 250W Studio Monitor with 7.1" Woofer and 1" Silk Tweeter
Event 2020BAS v3 Active 250W Studio Monitor with 7.1" Woofer and 1" Silk Tweeter

Features

  • Two-way front-ported speaker
  • 7.1" Woofer
  • 1" Silk Tweeter
  • Class AB amplifiers
  • 250 watts of burst power
  • Less than .01% Total Harmonic Distortion (THD
  • Two year manufacturer' warranty

Specs

System
  • Frequency Response: 35Hz - 20kHz ±2dB
  • Crossover Frequency: 2300Hz
  • 3rd Harmonic Distortion @ 90dB SPL, 1m, 500-7kHz: 0.08%
  • 3rd Harmonic Distortion @ 90dB SPL, 1m, 200 - 20kHz: 0.2%
  • 3rd Harmonic Distortion @ 90dB SPL, 1m, <200Hz: 1.5%
  • Acoustic Output - SPL @ 1m, Long term (80Hz - 20kHz): 105dB
  • Acoustic Output - SPL @ 1m, Peak (80Hz - 20kHz): 108dB
  • Signal Input: XLR, RCA (balanced/unbalanced)
Low Frequency Transducer
  • Piston Diameter: 180mm (7.1")
  • Voice Coil Configuration: High temperature single coil
  • Voice Coil Diameter: 38mm (1.5")
  • Former Material: High-strength Polyamide - Glass Fiber
  • Magnet Type: Ferrite
  • Cone Type: Mineral Filled Polypropylene
  • Magnetic Shielding: Bucking magnet and steel cap
High Frequency Transducer
  • Dome Diameter: 25.4mm (1")
  • Voice Coil Diameter: 25mm (0.98")
  • Magnet Type: Ferrite
  • Dome Type: Silk
  • Gap Design: Ferrofluid Cooled
  • Magnetic Shielding: Bucking Magnet
Amplifier - Low/high frequency
  • Frequency Response: 20Hz - 20kHz(±0.2dB)
  • Operating Band Pass: 20Hz - 2400Hz (LF)/2400Hz - 20kHz (HF)
  • Total Harmoic Distortion: 0.01% 120 Watts into 4 Ohm Load
  • Long Term Power @ 4 Ohms: 80 Watts
  • Burst Power @ 4 Ohms: 120 Watts
  • Output Topology: Class AB
  • LF Trim: Constantly variable ±3dB
  • HF Trim: Constantly variable ±3dB
  • Subsonic Filter: -3dB @ 30Hz
  • Driver Protection: Current Limiting
  • Temperature Protection: Thermal Cut-Off Switch
  • Indicators: Event badge 'On' mode
  • Cooling: Convection - Aluminium Heat Sink
  • Power Requirements: Voltage selector 110-120V or 220-240V, 50/60Hz, 180VA; Power via detachable 3 circuit IEC type linecord
Physical
  • Cabinet Construction: MDF
  • Low Frequency Vents: Front Port
  • Cabinet Dimensions: 260mmW x 375mmH x 300mmD; (10.2"W x 14.8"H x 11.8"D)
  • Cabinet Weight: 17kg (37.48lb)
  • Shipping Dimensions: 375mmW x 495mmH x 415mmD ; (14.8"W x 19.5"H x 16.3"D)
  • Shipping Weight: 19kg (41.88 lb.)
