Eminence

Description

Each Eminence Professional model can be identified by its cast aluminum Eminence chassis that is lightweight and strong. Aluminum does not conduct the magnetic field out of the gap, thereby making the motor strength higher and the stray magnetic field lower. Each chassis and all metal components are coated with an epoxy-acrylic finish using an in-house e-coat process. The thickness of that coating can be controlled to within 0.001"; critical when working with close tolerance transducer motor designs. Then front and rear sealing gaskets are added on each model to accommodate front or rear loading.

There are 26 unique models available in the Professional series. Each was designed with a specific application in mind. From heavy-duty subwoofers, low distortion woofers, and super high-power woofers to lightweight neodymium transducers in truncated frames for line arrays, there is an Eminence Professional model for your application. Each product includes a lot of Made in the USA pride.

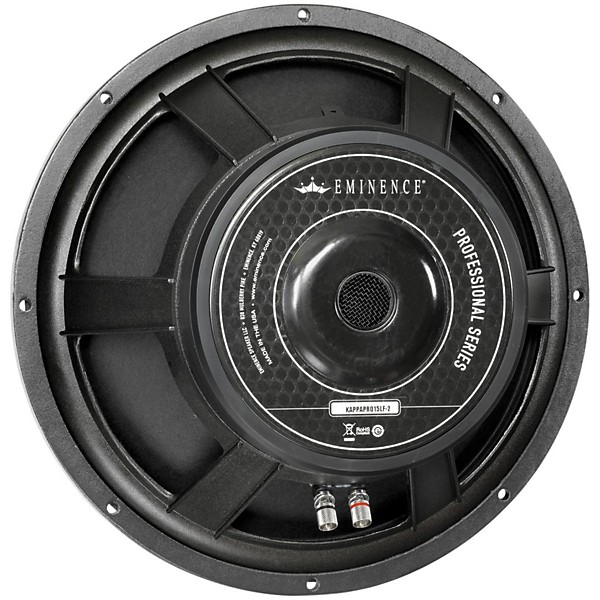

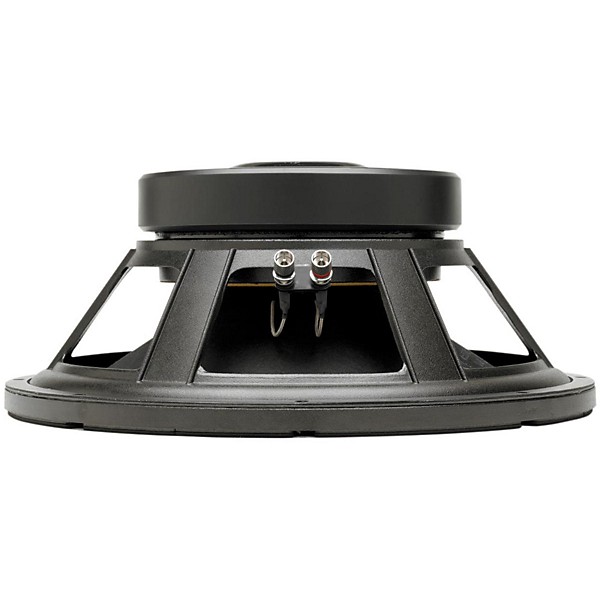

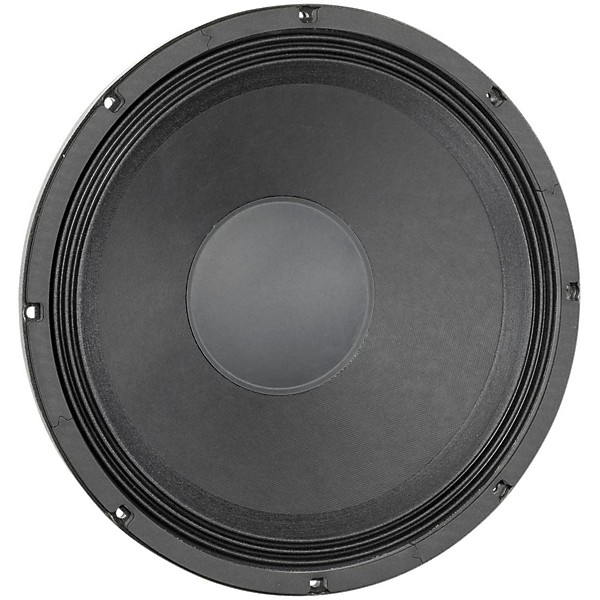

Eminence Professional KAPPA PRO-15LFC 15" 600W PA Replacement Speaker
Eminence Professional KAPPA PRO-15LFC 15" 600W PA Replacement Speaker
Eminence Professional KAPPA PRO-15LFC 15" 600W PA Replacement Speaker

Features

  • 15" low frequency driver
  • 600W power rating
  • 96.8dB sensitivity
  • Long throw, low frequency woofer
  • Recommended for pro audio in a vented bass enclosure

Specs

  • Nominal Basket Diameter 15", 381 mm
  • Nominal Impedance* 4 ?
  • Power Rating**
  • Watts 600 W
  • Music Program 1200 W
  • Resonance 37 Hz
  • Usable Frequency Range 38 Hz - 1.8 kHz
  • Sensitivity*** 96.8 dB
  • Magnet Weight 120 oz.
  • Gap Height 0.375", 9.5 mm
  • Voice Coil Diameter 3", 76 mm
  • THIELE & SMALL PARAMETERS
    • Resonant Frequency (fs) 37 Hz
    • DC Resistance (Re) 3.34 ?
    • Coil Inductance (Le) 0.94m H
    • Mechanical Q (Qms) 10
    • Electromagnetic Q (Qes) 0.33
    • Total Q (Qts) 0.32
    • Compliance Equivalent Volume (Vas) 183.23 liters / 6.47 cu.ft.
    • Peak Diaphragm Displacement Volume (Vd) 676.5 cc
    • Mechanical Compliance of Suspension (Cms) 0.18 mm/N
    • BL Product (BL) 15.4 T-M
    • Diaphragm Mass Inc. Airload (MMs) 99 grams
    • Efficiency Bandwidth Product (EBP) 114
    • Maximum Linear Excursion (Xmax) 7.9 mm
    • Surface Area of Cone (Sd) 856.3 cm2
    • Maximum Mechanical Limit (Xlim) 18 mm
    MOUNTING INFORMATION
    • Recommended Enclosure Volume
    • Sealed N/a
    • Vented 80.42-156.88 liters / 2.84-5.54 cu.ft.
    • Driver Volume Displaced 0.152 cu.ft. / 4.31 liters
    • Overall Diameter 15", 381 mm
    • Baffle Hole Diameter 14", 355.6 mm
    • Front Sealing Gasket Yes
    • Rear Sealing Gasket Yes
    • Mounting Holes Diameter 0.28", 7.1mm
    • Mounting Holes B.C.D. 14.56", 369.8mm
    • Depth 6.57", 166.9 mm
    • Net Weight 22.3 lbs, 10.12 kg
    • Shipping Weight 24.8 lbs, 11.25 kgs
    MATERIALS OF CONSTRUCTION
    • Coil Construction Copper voice coil
    • Coil Former Kapton former
    • Magnet Composition Ferrite magnet
    • Core Details Vented and extended core
    • Basket Materials Die-cast aluminum basket
    • Cone Composition Paper cone
    • Cone Edge Composition Cloth cone edge
    • Dust Cap Composition Solid composition paper dust cap
