Elation

Description

Light Emitting Diode (LED) Panel with 12 LEDs arranged in four rotating groups of three lights (red, green, and blue). The control features include eight built-in programs with speed control, adjustable strobe effect, adjustable dimming, master/slave auto program and music trigger, and each LED can be controlled independently. This panel is also DMX capable.

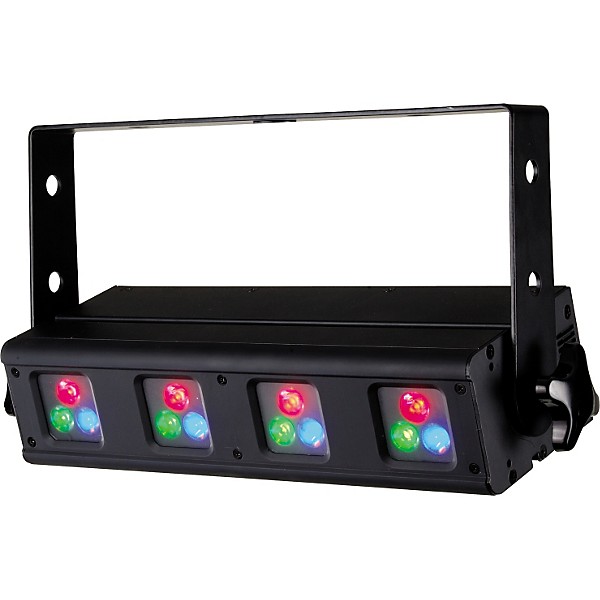

Elation Design LED 12 Brick Lighting Panel

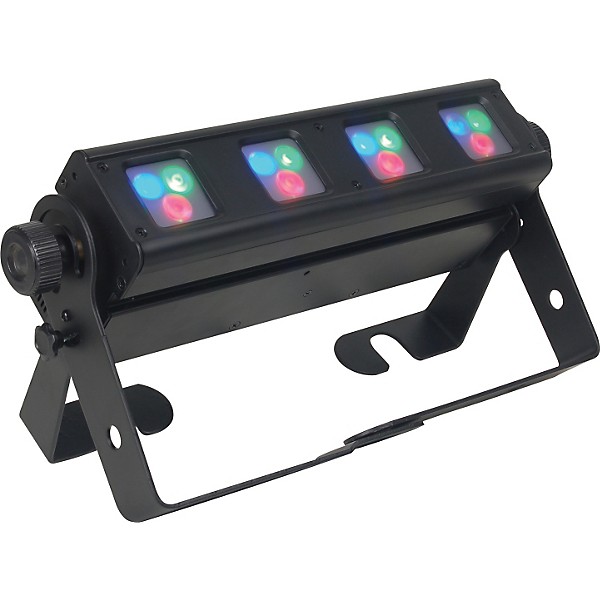

Elation Design LED 12 Brick Lighting Panel

Features

12 x 1W Luxeon LEDs - (4 Ea. R, G, B)
Seamless RGB color-mixing
Infinite Color possibilities
Compact design
44-degree beam angle
480 lumens @ 1m per unit
1340 lumens @ 1m per kit of 4 units
Long Life L.E.D. (rated at 100,000 hours)
Built-in power supply and DMX 512 control

Control Specifications
USITT-DMX 512
6, 12, or 15 channel operation modes
12-position binary dip switches
3- and 5-pin XLR in/out
IEC Power in/out

Control Features
Master/slave auto program and music trigger
8 built-in programs with speed control
Strobe effect (1-18 flashes per second)
Control each L.E.D. independently
0-100% dimming

Power Supply
90-250V AC, 50/60Hz
On/off power switch
Power consumption: 30 watts

Rigging
Mounting bracket and safety L-hook installed
Optional bracket kit for multiple units (DLEDKIT)

Dinemsions and Weight
4-1/2"H x 13"L x 3"W
4.5 lbs.
