CHAUVET Professional

Description

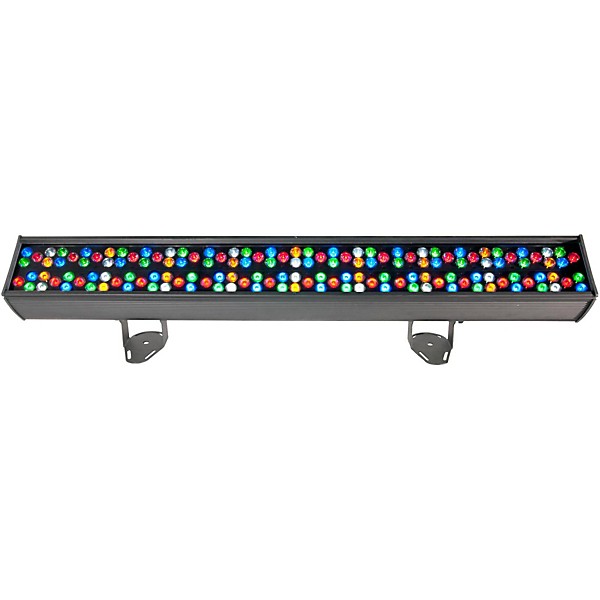

COLORado Batten 144 Tour is a batten-style wash with 144 calibrated red, green, blue, white and amber LEDs and five dimming curves. Dual 15- and 30-degree optics help cover long throws smoothly and evenly. This outstanding linear fixture can serve as an excellent cyc light. Thanks to versatile trunnions, floor or truss mounting is a breeze.
CHAUVET Professional COLORado Batten 144 Tour
CHAUVET Professional COLORado Batten 144 Tour
CHAUVET Professional COLORado Batten 144 Tour

Features

  • Built-in auto and custom programs recalled via DMX and Master/Slave
  • RGBWA color mixing via DMX or manually
  • Color temperature presets, from 2800K to 10000K
  • 3-pin and 5-pin DMX input/output connections
  • Selectable, smooth dimming curves for programming versatility
  • LED display with password protection
  • Neutrik powerCON power input/output connections
  • Simple and complex DMX channel profiles for programming versatility
  • Adjustable feet double as hanging brackets

Specs

  • DMX Channels: 3, 4, 5, 6, 7, 9, 12 or 15
  • Data Connectors: 3- and 5-pin XLR
  • Light Source: 144 LEDs (36 red, 36 green, 36 blue, 18 white, 18 amber) 1 W, (350 mA), 50,000 hours life expectancy
  • Shutter/Strobe: Electronic
  • Strobe Rate: 0 to 20 Hz
  • Stand Alone Color Mixing: Yes
  • Color Temperature Presets: Yes
  • Installed Optics: 15 and 30
  • Beam Angle: 17.3
  • Field Angle: 36.2
  • Dimming Modes: 5
  • Illuminance: 2,075 lux @ 5 m
  • Color Temperature (range): 2800 to 10000 K
  • IP Rating: IP20, dry location
  • Cable Length: 5 ft (1.5 m)
  • Power Connection: Edison plug to Neutrik powerCON
  • Power Input: Neutrik powerCON
  • Power Output: Neutrik powerCON
  • Power Linking: 3 units @ 120 V; 4 units @ 208 V; 5 units @ 230 V
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 171 W, 1.388 A @ 120 V, 60 Hz
  • Power and Current: 160 W, 0.798 A @ 208 V, 60 Hz
  • Power and Current: 158 W, 0.710 A @ 230 V, 50 Hz
  • Weight: 19.60 lb (8.89 kg)
  • Dimensions: 39.3 x 5.2 x 8.2 in (998 x 132 x 209 mm)
  • Approvals: CE, ETLC
