Description

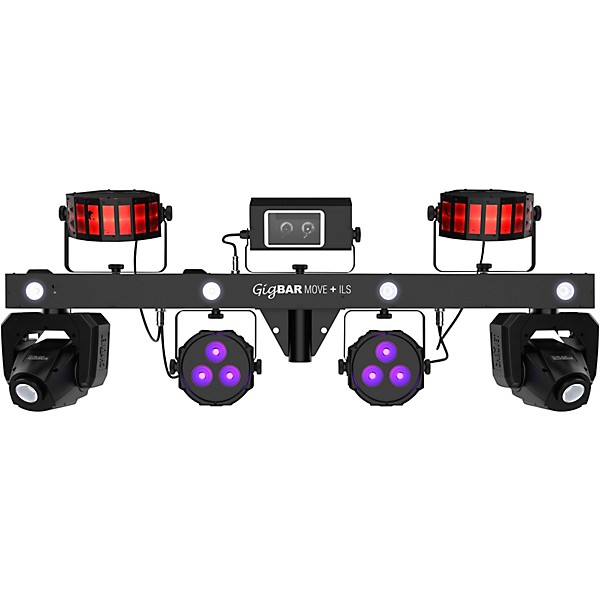

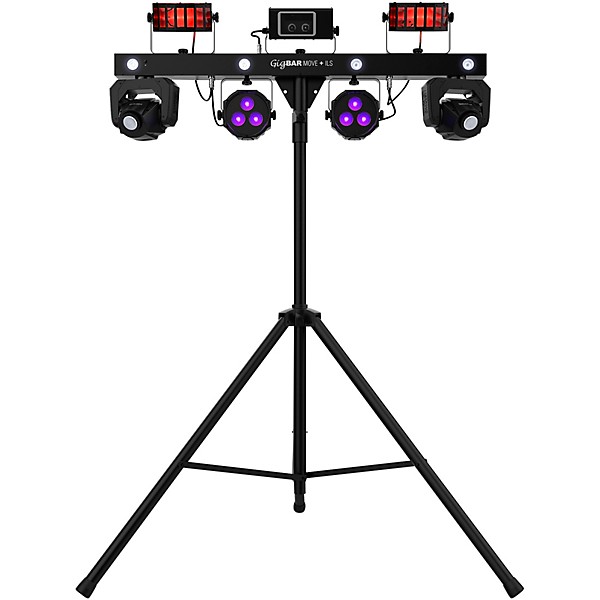

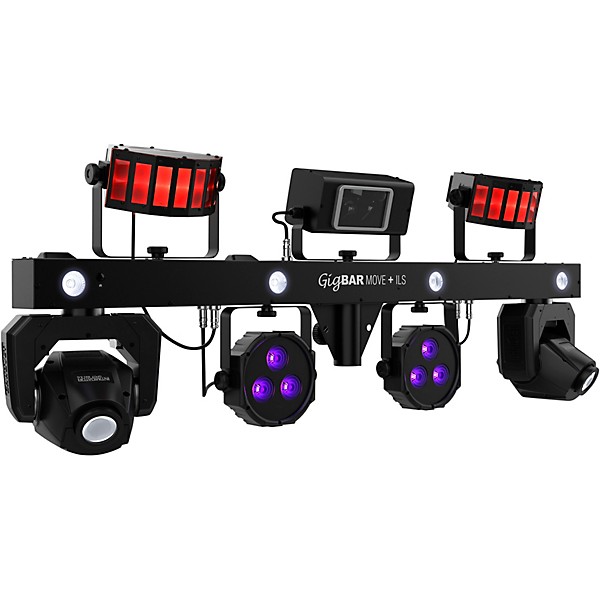

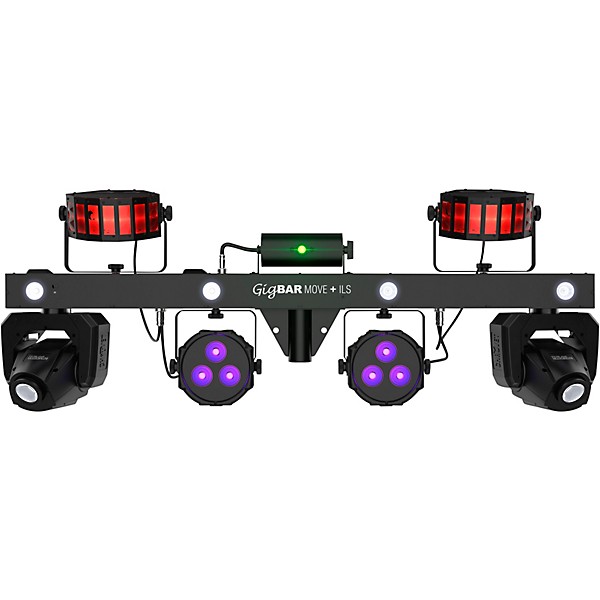

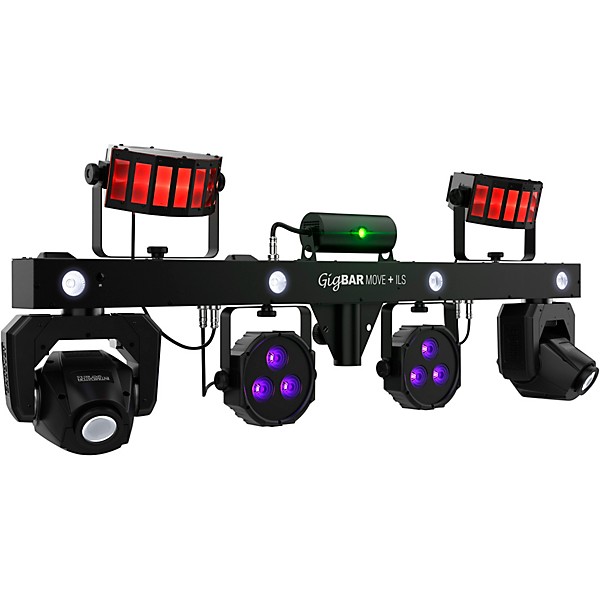

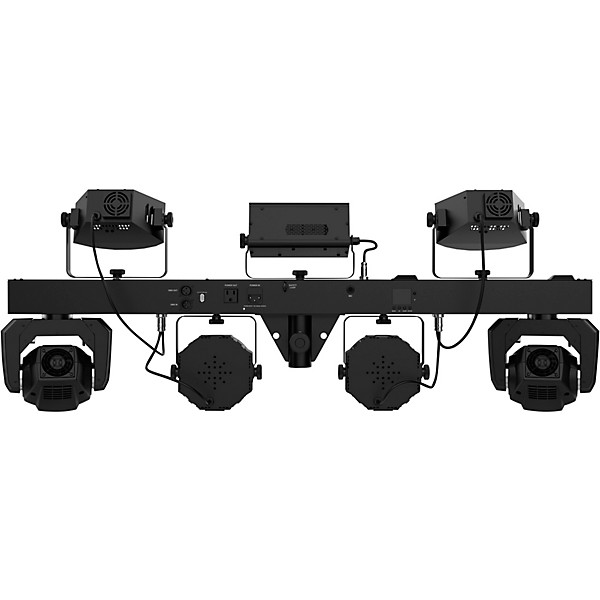

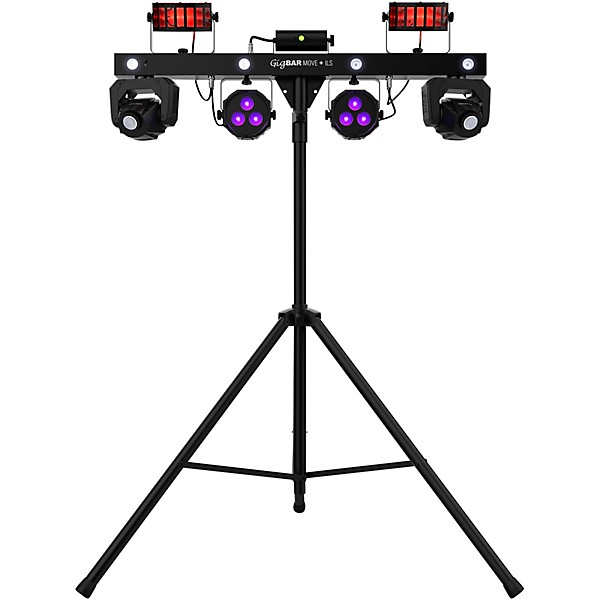

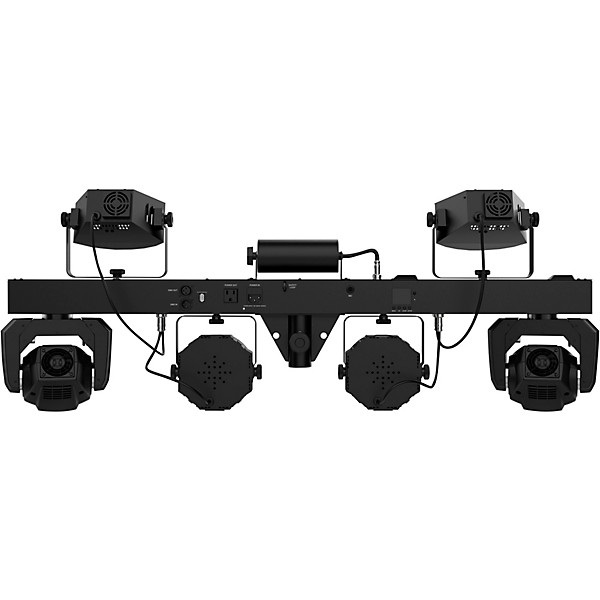

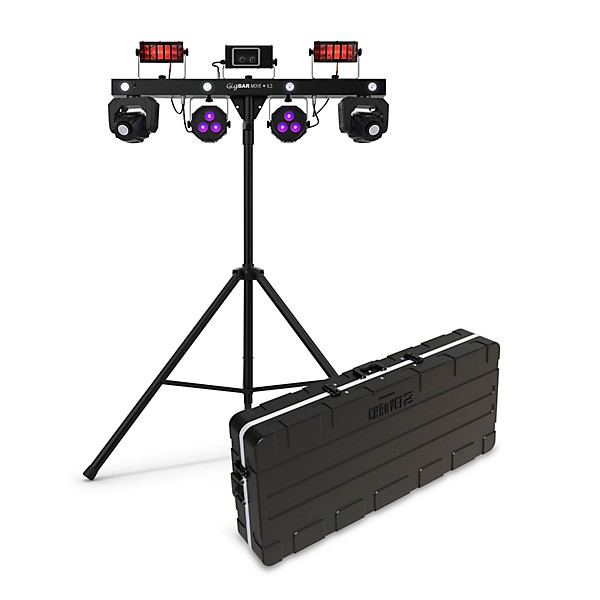

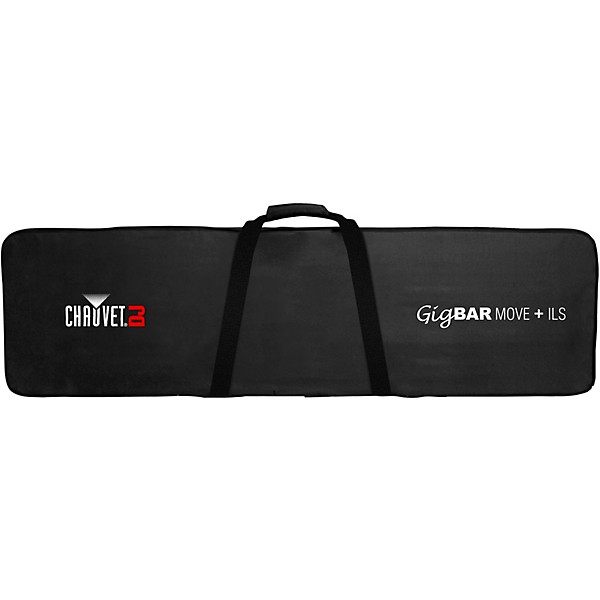

The CHAUVET DJ GigBar Move + ILS and Travel Case is a 5-in-1 lighting system that includes moving heads, derbies, washes, and a laser and strobe effect pre-mounted on a single bar. The Integrated Lighting System (ILS) is a complete lighting ecosystem technology that provides an advanced, coordinated light show across multiple fixture types. Separate color and gobo wheels allow for creative programming, and the Totem Mode keeps the moving heads focused on the dance floor. System includes a tripod, wireless footswitch, RF remote and free carry bags to ensure quick setup.

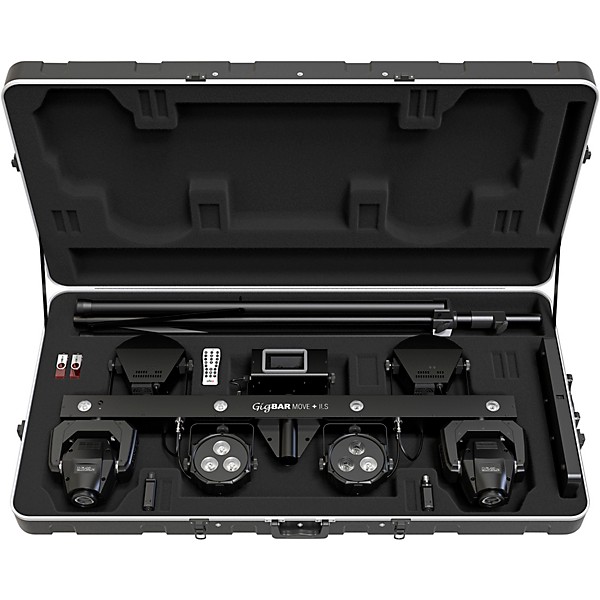

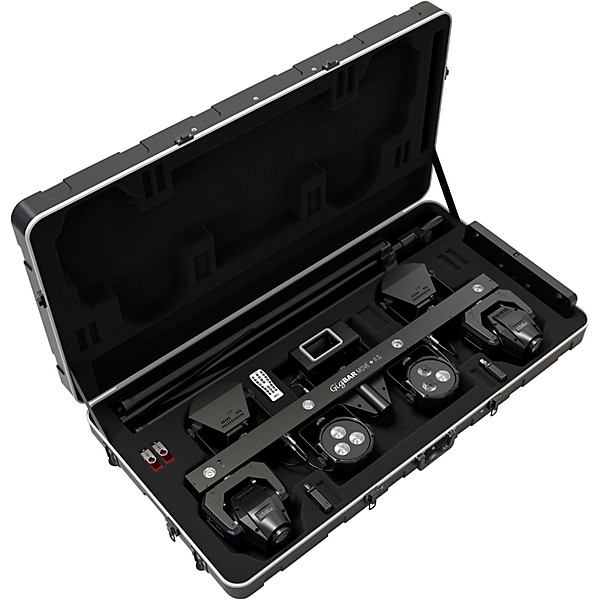

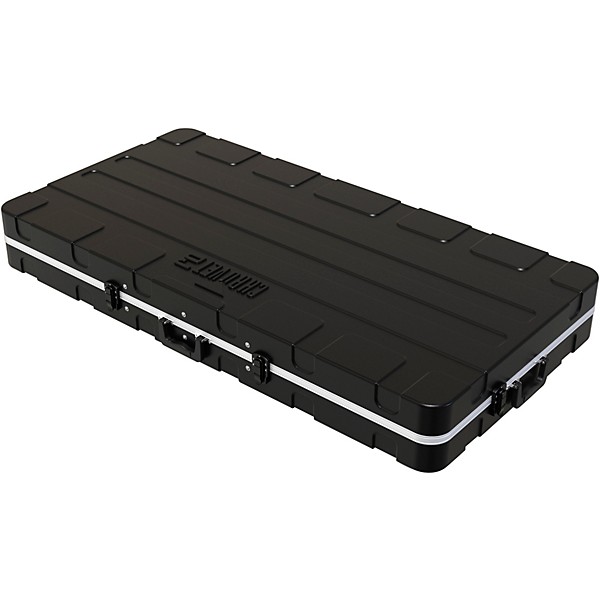

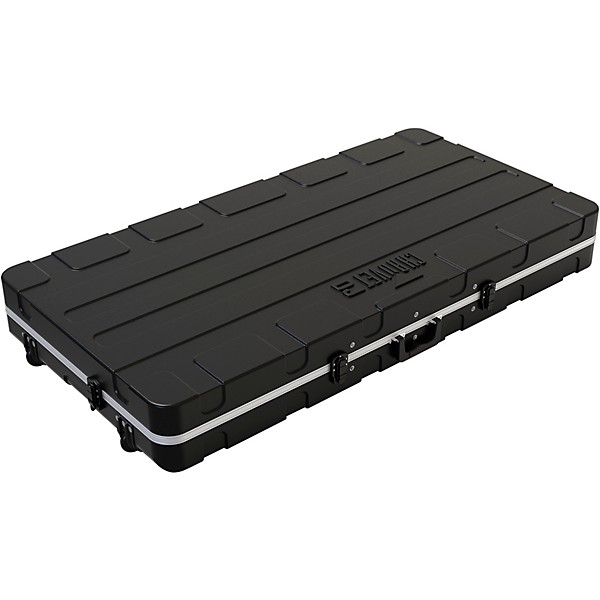

CHAUVET DJ GigBar Move + ILS and Travel Case
CHAUVET DJ GigBar Move + ILS and Travel Case
CHAUVET DJ GigBar Move + ILS and Travel Case

Features

  • Built-in UV LEDs illuminate florescent objects for dazzling blacklight effects
  • Easy control via stand-alone, DMX, wireless RF remote or wireless footswitch

Specs

  • DMX Channels: 3, 28, or 50
  • Colors (moving head): 9 + open, split colors, continuous scroll
  • Gobos (moving head): 9 + open, continuous scroll
  • Light Source (pars): 3 LEDs (hex color RGBAW+UV) 6 W (2 A)
  • Light Source (strobe): 4 LEDs (cool white) 5 W (1.2 A)
  • Light Source (derby): 8 LEDs (2 red, 2 green, 2 blue, 2 white) 6.5 W (2 A)
  • Light Source: (moving head) 1 LED (cool white) 32 W, (3 A)
  • Light Source: (Laser) 638 nm/30mW (red) laser diode, 520 nm/20 mW (green) laser diode, 450 nm/ 50 mW (blue) laser diode
  • Strobe Rate: 0 to 30 Hz
  • Stand Height: 4.8 ft to 8.3 ft (1.5 to 2.5 m)
  • Beam Angle (moving head): 17°
  • Beam Angle (pars): 22°
  • Beam Angle (strobe): 30°
  • Coverage Angle (derby): 131°
  • Coverage Angle (laser): 93°
  • Illuminance (pars): 1,205 lux @ 2 m (per par)
  • Illuminance (moving head): 5,140 lux @ 2 m (per head)
  • Illuminance (strobe): 130 lux @ 2 m
  • Footswitch Max Unobstructed Distance: 100 ft (30.5 m)
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 250 W, 3 A @ 120 V, 60 Hz
  • Optional Controllers: RF
  • Classified per 21 CFR 1040.10 & .11
  • Complies with US FDA CDRH laser safety standards 21 CFR 1040.10 & 1040.11
  • Approvals: CE, UKCA, RoHS, FCC, FDA

Warranty

All DMX products - 2 year limited warranty.
Special Effects controllers and fixtures - 1 year limited warranty.
"NV" products - 3 months limited warranty.
(All warranties are in effective from date of purchase.) No warranty on lamps, laser diodes, fuses, brushes, and belts.
