Description

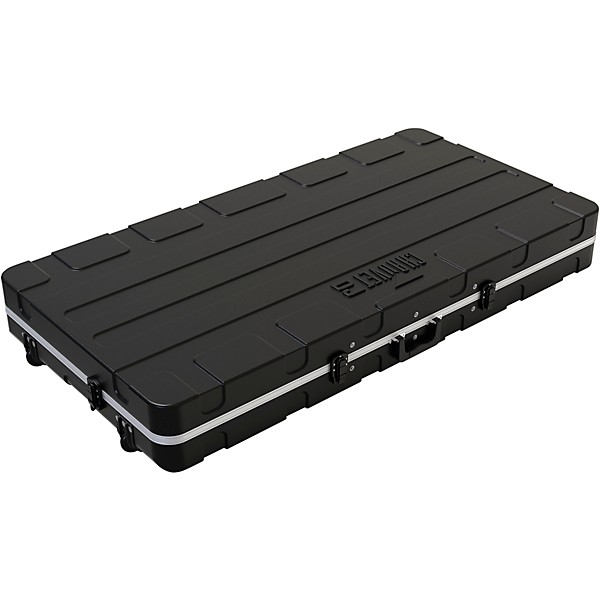

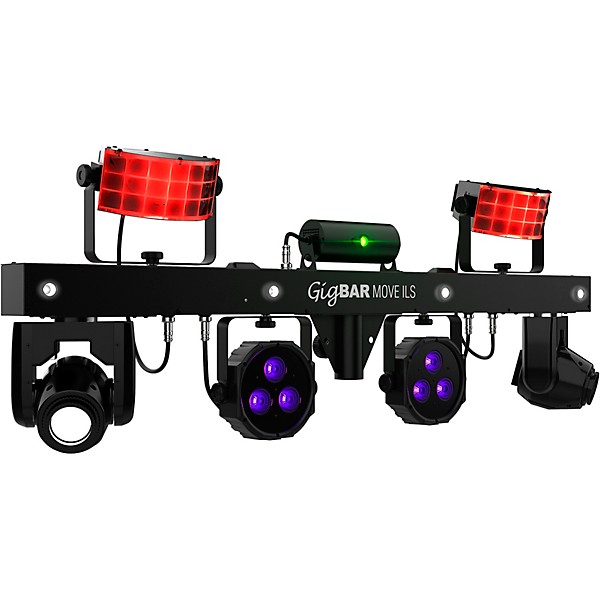

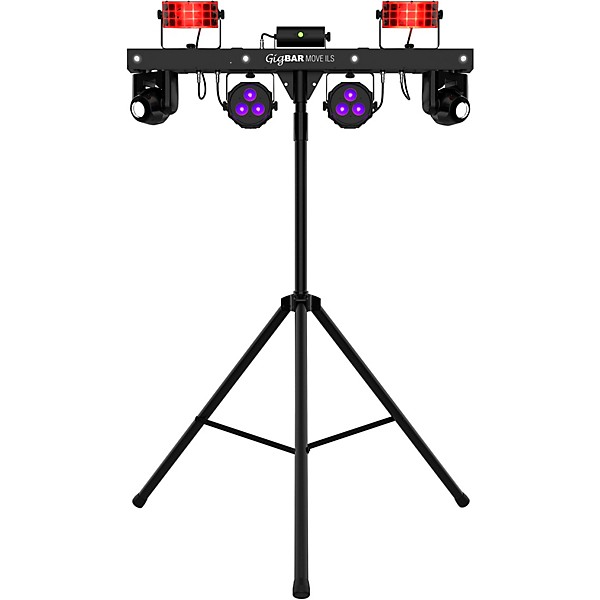

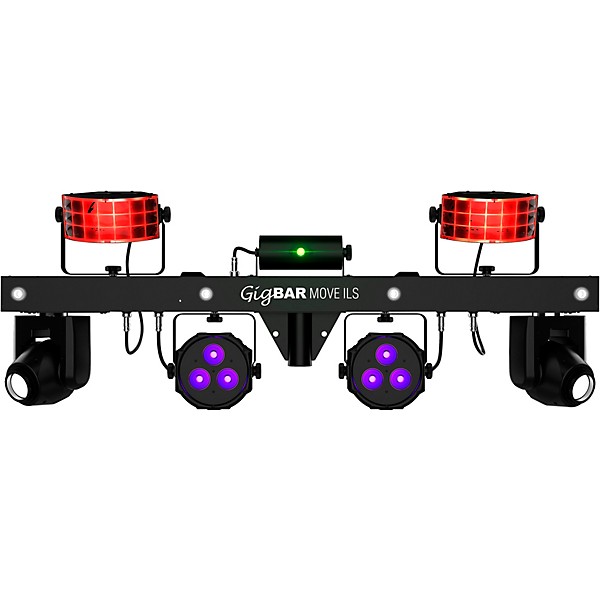

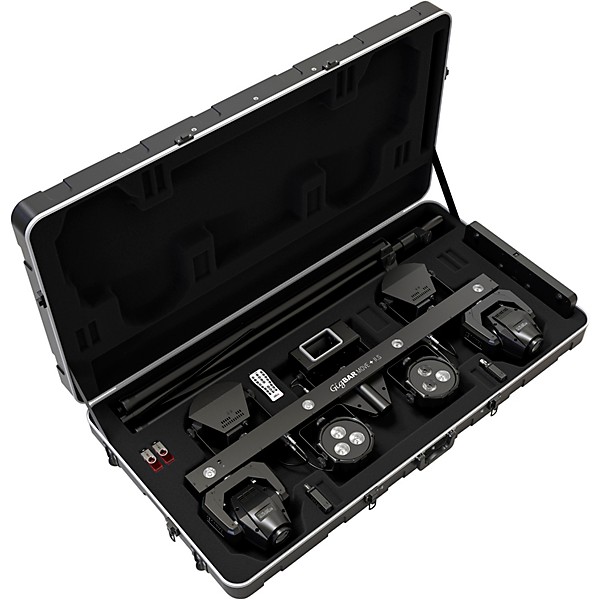

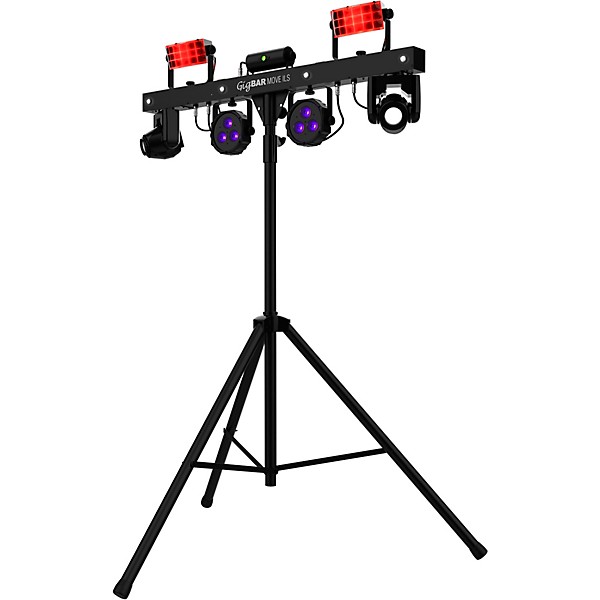

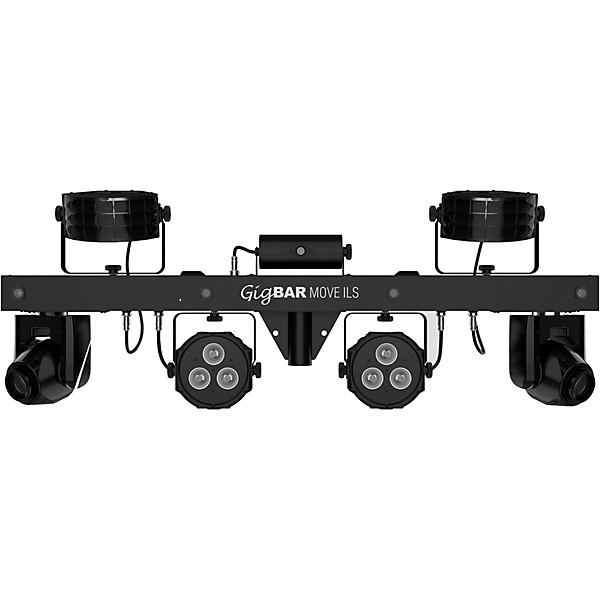

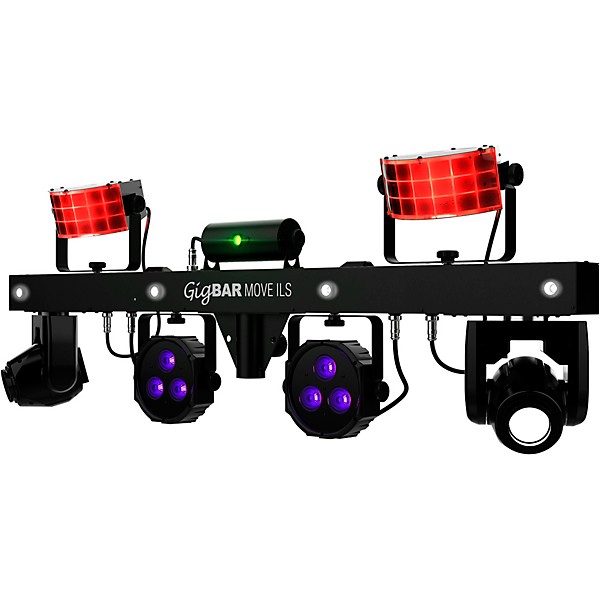

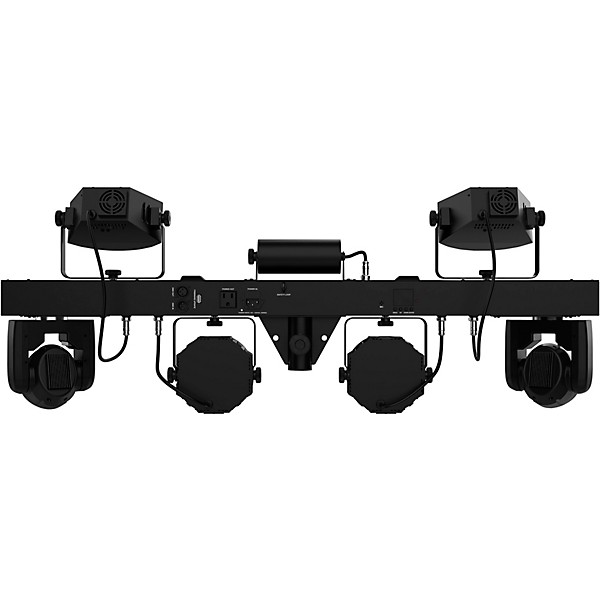

The CHAUVET DJ GigBar Move ILS and Travel Case is a 5-in-1 lighting system that includes moving heads, derbies, washes, and a laser and strobe effect pre-mounted on a single bar. The built-in D-Fi transceiver means complete Integrated Lighting System (ILS) compatibility, including wireless control of other ILS products. Separate color and gobo wheels in moving heads allow for creative programming, and the Totem Mode keeps the moving heads focused on the dance floor. System includes a tripod, wireless footswitch, RF remote and carry bags to ensure quick setup.
CHAUVET DJ GigBar Move ILS and Travel Case
CHAUVET DJ GigBar Move ILS and Travel Case
CHAUVET DJ GigBar Move ILS and Travel Case

Features

  • Built-in UV LEDs illuminate florescent objects and make them pop
  • Individual control of each effect ensures your show looks the way you need it to
  • Easy control via stand-alone, DMX, wireless RF remote or wireless footswitch

Specs

  • DMX Channels: 3, 27 or 46
  • DMX Connectors: 3- pin XLR
  • Pan and Tilt: 540°/180°
  • Colors (moving head): 7 + white, continuous scroll at variable speeds
  • Gobos (moving head): 7 + open, continuous scroll at variable speeds
  • Light Source (pars): 3 LEDs (quad-color RGB+UV) 3.5 W (1 A)
  • Light Source (strobe): 4 LEDs (white & UV) 5 W (1 A)
  • Light Source (derby): 6 LEDs (2 red, 2 green, 2 blue) 1 W (1 A)
  • Light Source (moving head): 1 LED (cool white) 10 W (2.3 A)
  • Light Source (laser): 650nm/100 mW (red) laser diode, 532 nm/30mW (green) laser diode
  • Strobe Rate (all effects): 0 to 20 Hz
  • Stand Height: 4.8 ft to 8.3 ft (1.5 to 2.5 m)
  • Beam Angle (moving head): 11°
  • Beam Angle (pars): 19°
  • Beam Angle (strobe): 8°
  • Coverage Angle (derby): 131°
  • Coverage Angle (laser): 93°
  • Foot Switch Operating Frequency: 433 MHz
  • Foot Switch Max Unobstructed Distance: 100 ft (30.5 m)
  • Illuminance (pars): 1,205 lux @ 2 m (per par)
  • Illuminance (moving head): 1056 lux @ 2 m (per head)
  • Illuminance (strobe): 86 lux @ 2 m (per LED)
  • Power Linking: 7 units @ 120 V; 12 units @ 230 V
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 81 W, 1.1 A @ 120 V, 60 Hz
  • Power and Current: 79 W, 0.6 A @ 230 V, 50 Hz
  • Complies with FDA performance standards for laser products except for deviations pursuant to Laser Notice No. 56, dated May 8, 2019
  • Approvals: CE, RoHS, UKCA, FDA, FCC

Warranty

All DMX products - 2 year limited warranty.
Special Effects controllers and fixtures - 1 year limited warranty.
"NV" products - 3 months limited warranty.
(All warranties are in effective from date of purchase.) No warranty on lamps, laser diodes, fuses, brushes, and belts.
