Description

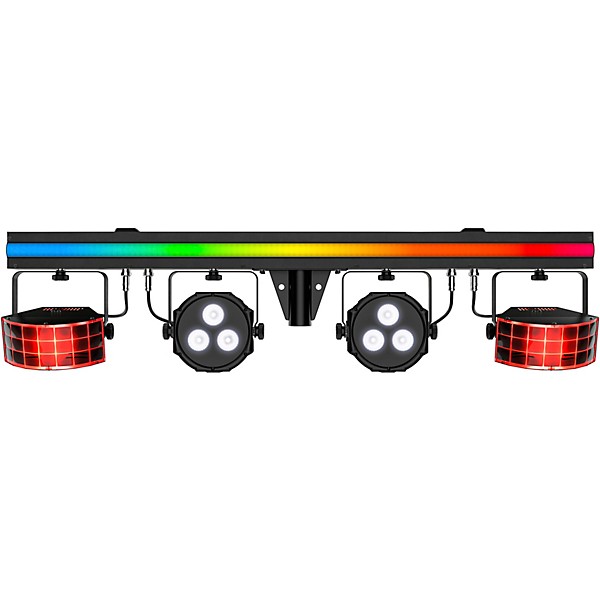

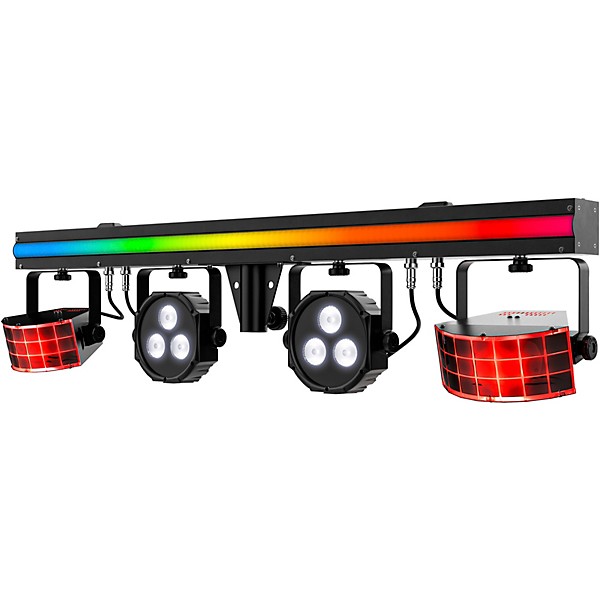

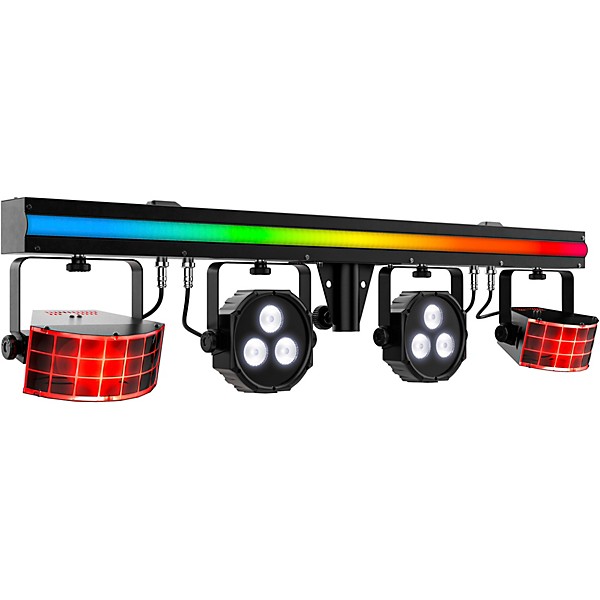

Transform any space into a vibrant light show with the CHAUVET DJ GigBAR 3 ILS, a 3-in-1 lighting system designed for mobile DJs, performers and event hosts. This compact rig combines multiple effects on a single bar, including dual LED derbies, RGBA+UV LED pars and a dynamic LED strip for layered beams, colorful washes and animated visual accents. ILS compatibility enables seamless integration with other fixtures in the ILS ecosystem, while built-in automated and sound-activated programs deliver complete shows right out of the box. With a full-color LCD display, multiple control options and a fast setup that includes a tripod stand, wireless footswitch and carry bags, the GigBAR 3 ILS delivers a professional lighting experience in a streamlined, portable package.

Multiple Lighting Effects Working Together

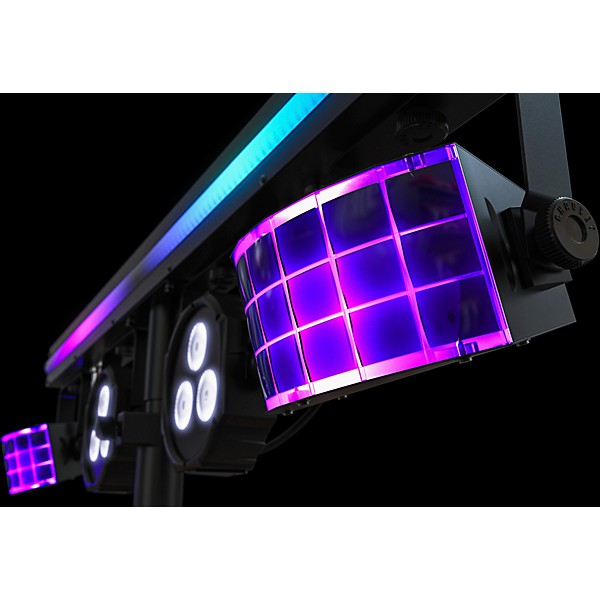

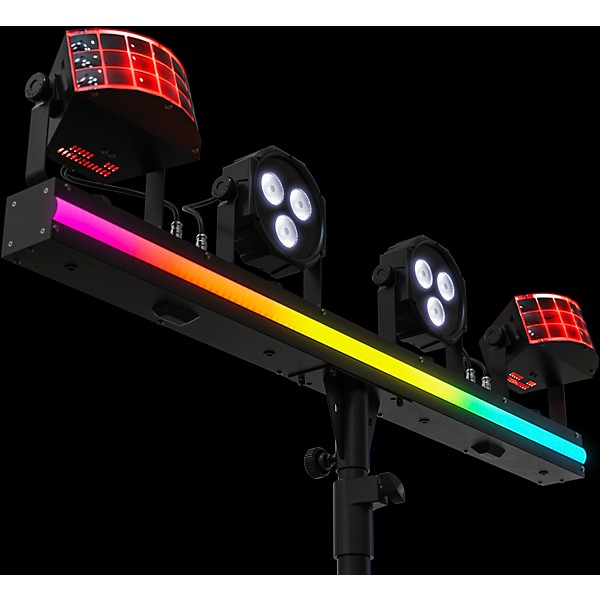

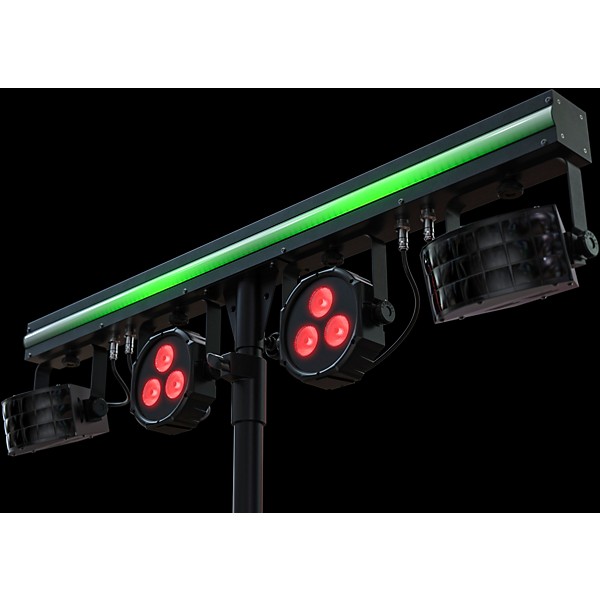

The GigBAR 3 ILS combines three lighting technologies to produce a complete and dynamic show from a single fixture. The pair of LED derbies generate wide, energetic beams, while the RGBA+UV LED pars deliver vibrant color washes with rich mixing and ultraviolet accents. A built-in LED strip adds motion and eye-catching visual effects that enhance the overall presentation. Together, these elements create layered lighting scenes that fill the room with color, movement and atmosphere for parties, events and live performances.

Flexible Control and Quick Setup for Any Gig

Designed for convenience and versatility, the GigBAR 3 ILS offers multiple control options. Operate it directly from the onboard display, use the included RF remote or wireless footswitch, or connect via DMX for expanded programming. ILS compatibility enables synchronized operation with other fixtures in the ILS ecosystem, making it easy to build coordinated lighting rigs. With power linking capability, a reversible tripod bracket and included carry bags, the Chauvet DJ GigBAR 3 ILS provides a fast, professional lighting solution ready for any event.

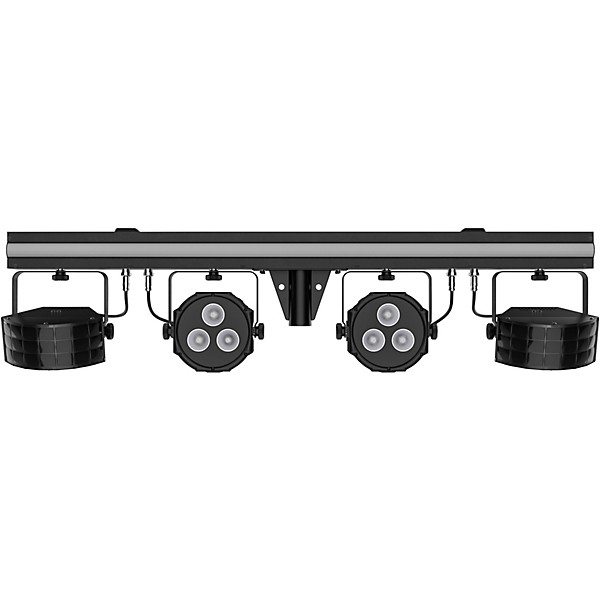

CHAUVET DJ GigBAR 3 ILS Multi-Effect 3-In-1 Lighting System
CHAUVET DJ GigBAR 3 ILS Multi-Effect 3-In-1 Lighting System
CHAUVET DJ GigBAR 3 ILS Multi-Effect 3-In-1 Lighting System

Features

  • Three-in-one lighting system delivers a complete show with multiple effects on one bar
  • Dual LED derbies, RGBA+UV pars and LED strip create layered beams and washes
  • Automated and sound-activated programs generate dynamic, synchronized light shows
  • ILS compatibility enables seamless control across compatible lighting fixtures

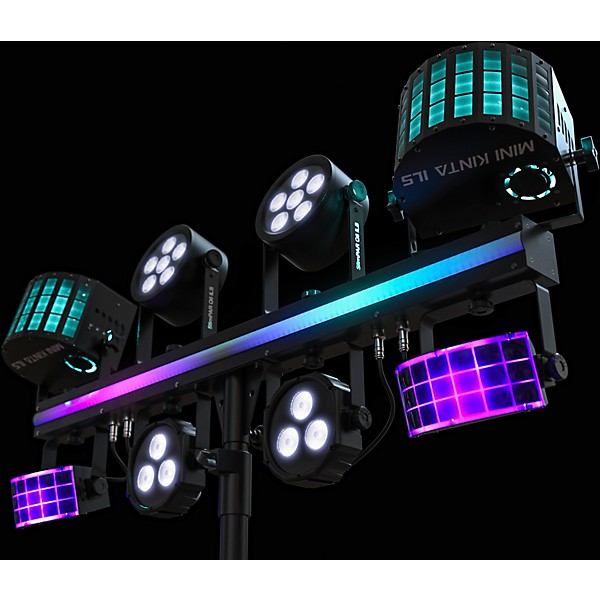

  • Mount up to four additional fixtures to expand coverage and visual impact

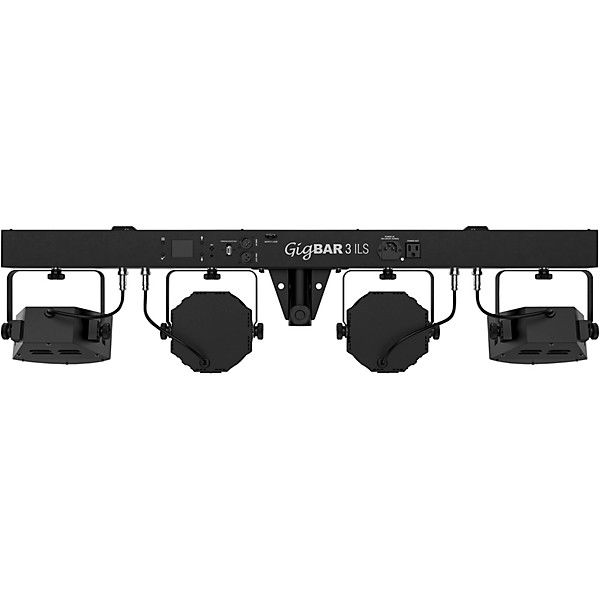

  • Full-color LCD display provides fast, intuitive access to settings and modes
  • Wireless footswitch and RF remote enable hands-free control during performances
  • Power linking supports up to 11 units at 120V to reduce cable runs

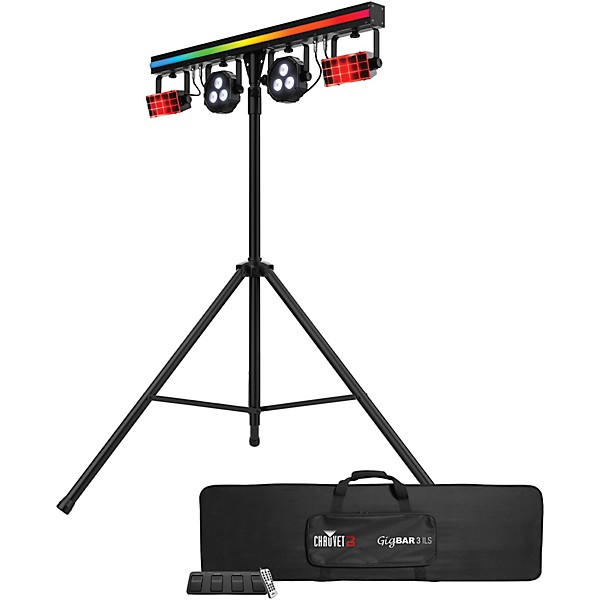

  • Adjustable tripod stand raises system from 4.8' to 7.8' for optimal placement
  • Included carry bags streamline transport, setup and teardown between gigs

Specs

General
  • Product type: Multi-effect lighting system
  • Model: GigBAR 3 ILS
  • Effects: LED pars, derby lights and LED strip
  • ILS compatibility: Yes
Light Sources
  • Pars: 6 × quad-color RGB + UV LEDs
  • Par LED power: 3.7W
  • Par LED life: 50,000 hours
  • Derby LEDs: 6 LEDs 2 red, 2 green and 2 blue
  • Derby LED power: 3W
  • Derby LED life: 50,000 hours
  • LED strip: 74 RGB LEDs
  • LED strip power: 5W
  • LED strip LED life: 50,000 hours
Photometrics
  • Par illuminance: 1205 lux at 6.5' per head
  • Par beam angle: 13°
  • Par field angle: 24°
  • Derby coverage angle: 114°
  • LED strip coverage angle: 174°
Effects
  • Strobe rate: 0–20Hz
Control
  • DMX channels: 2, 21 and 132
  • DMX connectors: 3-pin XLR
  • Control options: DMX, RF remote, wireless footswitch and onboard programs
  • Operating frequency D-Fi: 2.412–2.484GHz
Tripod
  • Stand height: 4.8" × 7.8"
  • Tripod leg width: 3.9"
  • Tripod mount size: 1.5"
Wireless Footswitch
  • Operating frequency: 433MHz
  • Max distance: 100'
  • Battery: 9V
Power
  • Voltage: 100–240V 50/60Hz
  • Power consumption at 120V: 47W 0.7A
  • Power consumption at 230V: 45W 0.4A
  • Power linking: 11 units at 120V and 18 units at 230V
Dimensions
  • Dimensions: 41.2" × 3.7" × 10.7"
  • Weight: 13.2 lb.
Approvals
  • Approvals: CE, RoHS and FCC
Included Accessories
  • Accessories: Tripod stand, wireless footswitch and carry bags

Warranty

All DMX products - 2 year limited warranty.
Special Effects controllers and fixtures - 1 year limited warranty.
"NV" products - 3 months limited warranty.
(All warranties are in effective from date of purchase.) No warranty on lamps, laser diodes, fuses, brushes, and belts.
