Description

Lighting designers and event professionals need linear fixtures that deliver consistent coverage and flexible control for dynamic stage and installation environments. The CHAUVET DJ EVE B-160Q RGBW linear batten fixture features 24 quad-color LEDs with eight controllable zones for pixel-mapped chases and smooth color transitions. Preset color temperature modes simplify white light tuning, while flicker-free operation supports on-camera applications. D-Fi USB compatibility enables wireless DMX control, and powerCON-compatible input and output connections support power linking for multi-fixture setups. Designed for mobile productions, stage lighting and permanent installations, the EVE B-160Q provides adaptable performance in a streamlined linear format.

Pixel Mapping and Control Flexibility

The EVE B-160Q offers 3-, 4-, 11- or 39-channel DMX modes, allowing users to choose between simplified operation and detailed control. Eight controllable zones enable dynamic chase effects and pixel-mapped programming, while onboard strobe functionality supports rhythmic lighting sequences. D-Fi USB compatibility allows wireless master/slave or DMX control, supporting flexible placement and streamlined rigging.

Linear Design and LED Performance

Equipped with 24 quad-color LEDs, the EVE B-160Q delivers even coverage across its linear format. The 15° beam angle and 30° field angle provide focused output, while optional filter angles expand coverage when needed. Preset color temperature modes simplify white light generation without manual color blending, supporting consistent output for stage and camera use.

Installation and Mobile Rig Integration

PowerCON-compatible power input and output connections support power linking for multi-fixture setups, reducing cable runs in larger lighting rigs. The aluminum housing and linear form factor allow flexible placement along trusses, risers or stage edges. Weighing 10.4 lb., the CHAUVET DJ EVE B-160Q RGBW linear batten fixture supports efficient deployment for mobile productions, event lighting and installation environments.

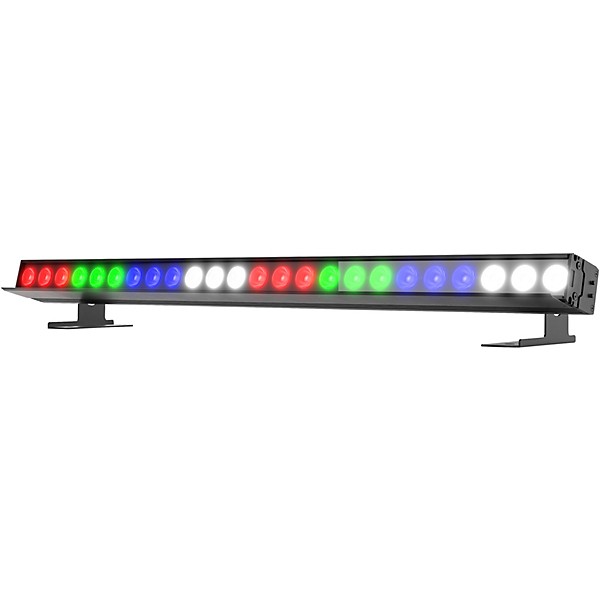

CHAUVET DJ EVE B-160Q RGBW LED Linear Batten

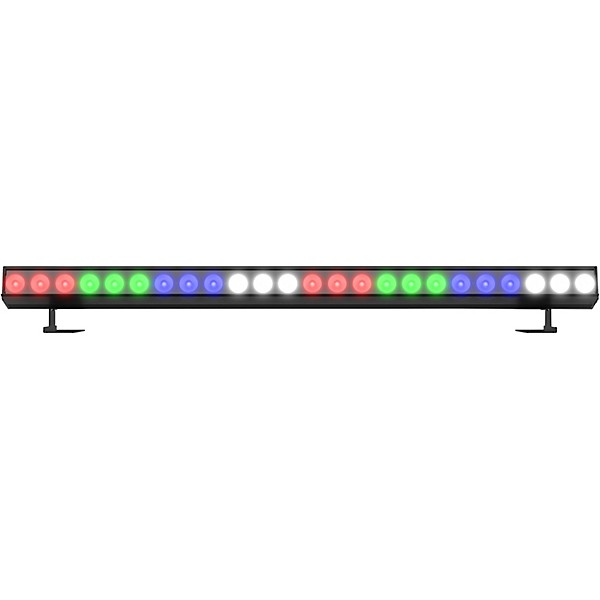

CHAUVET DJ EVE B-160Q RGBW LED Linear Batten

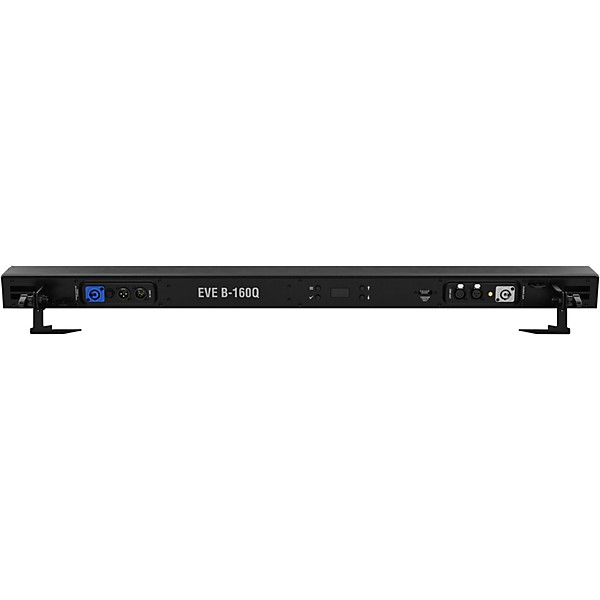

CHAUVET DJ EVE B-160Q RGBW LED Linear Batten

Features

  • Full-color linear batten delivers high-output washes and pixel effects
  • Eight controllable zones enable dynamic chases and segmented color scenes
  • 24 RGBW LEDs provide even coverage and vivid color mixing
  • Preset color temperatures simplify white light setup for stage and video
  • Flicker-free operation supports broadcast and on-camera use
  • D-Fi USB compatibility enables wireless DMX and master/slave control
  • PowerCON-compatible connections support reliable power linking
  • 3- and 5-pin DMX connectors integrate with pro lighting systems
  • 15° beam angle delivers focused linear wash output
  • 39.4" aluminum housing supports touring and installation use

Specs

General
  • Product type: LED linear batten
  • Model: EVE B-160Q
Light Source
  • LEDs: 24 × RGBW (4-in-1)
  • LED power: 6.5W per LED
  • LED lifespan: 50,000 hours
Optics
  • Beam angle: 15°
  • Field angle: 30°
  • Beam angle with filter: 24°
  • Field angle with filter: 52°
  • Illuminance: 8,300 lux @ 6.5'
  • Lumens: 3,909
Effects
  • Strobe rate: 0–20Hz
  • Zones: 8 controllable zones
Control
  • DMX channels: 3, 4, 11, 39
  • DMX connectors: 3-pin and 5-pin XLR
  • Wireless control: D-Fi USB compatible
Power
  • Input voltage: 100–240V AC, 50/60Hz
  • Power consumption: 105W @ 120V, 102W @ 230V
  • Power linking: 7 units @ 120V, 11 units @ 230V
  • Power connections: PowerCON-compatible in/out
Construction
  • Cable length: 5'
Dimensions
  • Dimensions: 39.4" × 5.9" × 7.6"
  • Weight: 10.4 lb.
Certifications
  • Certifications: CE, MET, RoHS

Warranty

All DMX products - 2 year limited warranty.
Special Effects controllers and fixtures - 1 year limited warranty.
"NV" products - 3 months limited warranty.
(All warranties are in effective from date of purchase.) No warranty on lamps, laser diodes, fuses, brushes, and belts.
