Description

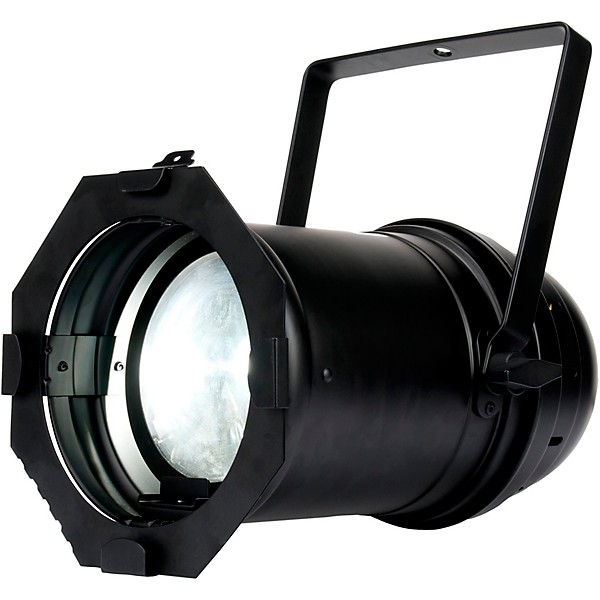

The ADJ Lighting PAR Z100 5K2 LED PAR can light brings together classic PAR can esthetics with modern LED technology. Designed for both mobile DJs and installed venues, this versatile unit packs a 100W LED engine that rivals the output of a traditional 1,000W PAR, with a fraction of the heat. With its focused beams and wide zoom ratios, the PAR Z100 5K2 allows you to sculpt precise lighting looks.

Flexible Zoom for Versatile Lighting

The PAR Z100 5K2 features a manual zoom with five beam angle options, from a tight 9-degrees to a wide 30-degrees. This gives lighting designers the flexibility to create both pinpoint backlighting and broad wash effects. The 3.3:1 zoom ratio also allows for smooth transitions between beam spreads. Position the PAR Z100 5K2s around the stage and zoom in for dramatic front light or zoom out to cover the whole stage evenly.

Intuitive Controls With OLED Display

With its easy-to-navigate 4-button control panel and OLED display screen, the PAR Z100 5K2 makes it simple to dial in your desired setting. Choose from two DMX channel modes or use the onboard buttons to adjust built-in programs and effects like strobe and dimming. The PAR Z100 5K2 is also RDM compatible for two-way communication with your lighting controller.

Built Tough for Demanding Stage Use

The PAR Z100 5K2 is constructed to withstand the rigors of mobile gigs and permanent installs. The housing has an IP20 rating to protect from splashing water and dust ingress. On the back panel, the power and DMX connections feature locking sockets to prevent accidental disconnections. You can also daisy chain up to 15 fixtures on 120V power. With a 50,000 hour LED lifespan rating, the PAR Z100 5K2 will deliver years of stellar performance.

Advanced Features for Custom Looks

Packed with advanced functionality, the PAR Z100 5K2 allows you to create unique looks for every event. Adjustable strobe speeds from 0.6Hz–7.5Hz let you add eye-catching pulse effects. Six dimming curve modes provide control over the dimming response. Stand-alone and master/slave modes enable self-contained operation without a DMX console. Shape your stage lighting with the brilliant versatility of the ADJ PAR Z100 5K2 LED PAR can.

American DJ PAR Z100 5K2 LED PAR Can Light
American DJ PAR Z100 5K2 LED PAR Can Light
American DJ PAR Z100 5K2 LED PAR Can Light

Features

  • 100W 5,700K C.O.B. LED with 50,000 hour life
  • Manual zoom from 9° to 30° beam angle
  • DMX-512 control with RDM and RDM Net compatibility
  • Six dimming modes and strobe from 0.6Hz to 7.5Hz
warning

WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, and to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Specs

Optical
  • 100-watt, 5,700K white C.O.B. LED (Chip On Board)
  • Life expectancy: rated at 50,000 hrs.
  • Manual Zoom: 9°, 15°, 20°, 25° or 30°
  • Zoom Ration: 3.3:1
Photometrics
  • 5,023 Lux (Zoomed In to 9° @ 5 meters)
  • 783 Lux (Zoomed Out to 25° @ 5 meters)
  • CRI: >90
Connection
  • DMX: 5-pin DMX In/Out
  • With Wired Digital Communication Network
  • Locking power In/Out connections
Controls
  • DMX-512
  • Two DMX control modes: (3 & 4 Ch. modes)
  • RDM and RDM Net Compatible
  • Primary/Secondary, stand-alone mode
  • On-board manual control mode
Features

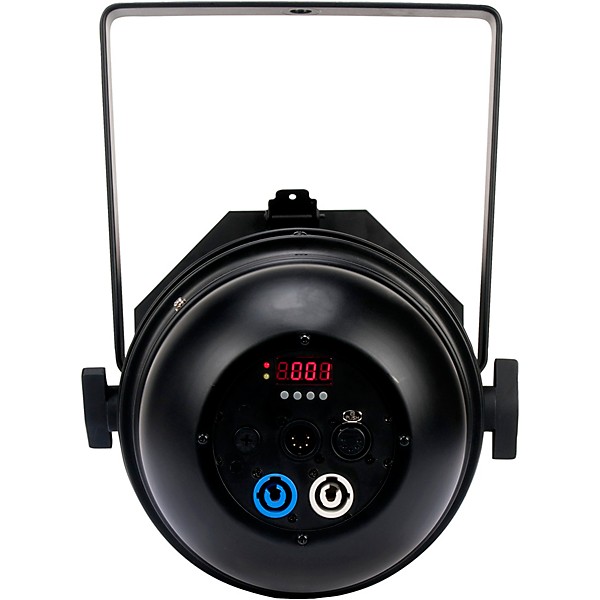

  • 4-button DMX menu display on rear panel
  • OLED display

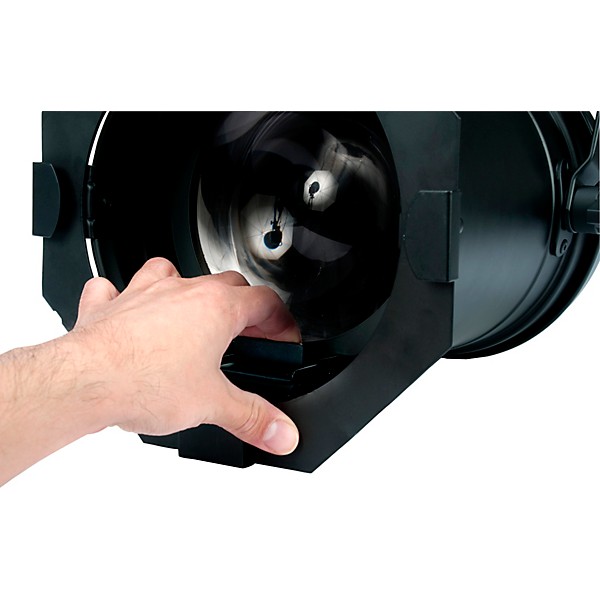

  • Adjustable latch to manually change beam angle
  • Includes gel frame for diffusion filters (Diffusion filter sold separately)
  • Strobe Rate: 0.6Hz to 7.5Hz
  • Refresh Rate: 1.2kHz
  • Electronic Dimming: 0-100%
  • 6 Dim Modes
Electrical
  • Power Draw Total (@ Full On): 115W
  • Power Consumption: 0.964A @ 120V/60Hz ; 0.5A @ 220V/50Hz
  • Multi-voltage operation: AC 100-240V, 50/60Hz
  • Daisy chain: 15 fixtures @ 120V; 25 fixtures @ 230V
  • Fuse protected: 3A/250V
Ambient Temperature Range (For Use)
    -4° ~ 113°F (-20°C ~ 45°C) Storage Temperature Range
    • -22° ~ 113°F (-30°C ~ 45°C)
    Dimensions
    • 19.25” x 10.94” x 10.68” / 489 x 277.7 x 271.1 mm
    • Weight: 7.94lb. / 3.6 kg
