Description

The M1624FX Compact Mixer represents American Audio's continuing commitment to produce the best and highest quality audio products possible at an affordable price. This mixer offers the best sounding preamps and EQ in its class and will suit a variety of needs from desktop recording to smaller live gigs. The American Audio mixing console has a total of 12 channels, with 10 XLR mic inputs, 8 mono line inputs, and 4 stereo inputs. Plus 100 effects presets. The M1624FX Compact Mixer is the answer for budget-conscious users who refuse to sacrifice sound quality or reliability.

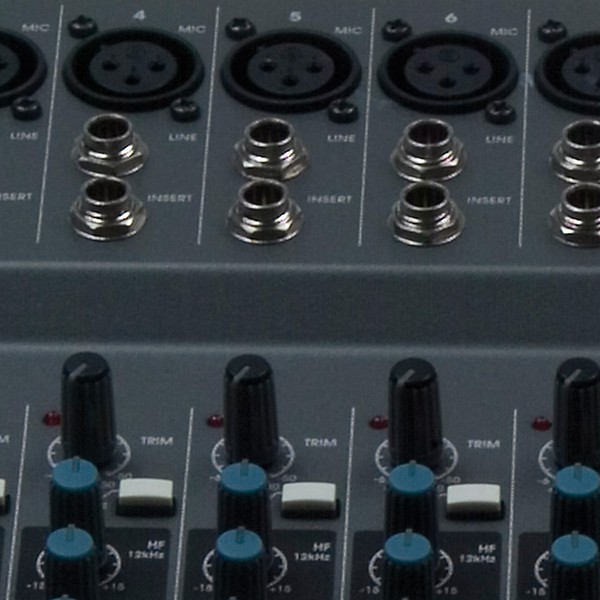

American Audio M1624FX Compact Mixer

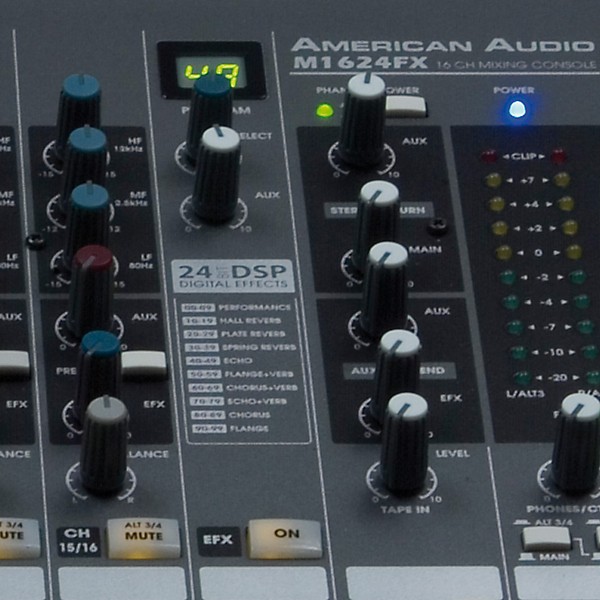

American Audio M1624FX Compact Mixer

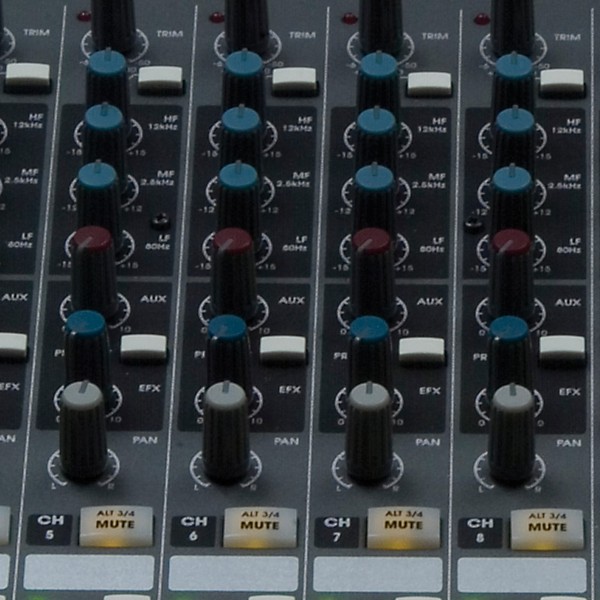

American Audio M1624FX Compact Mixer

Features

8 Mono & 4 Stereo Channel Inputs
Stereo Main Outputs & ALT 3/4 Output
3-band Eq, 1 Aux with Pre/Post Switch, 1 EFX, bAL, Mute, & PFL for Stereo Input Trim With Peak LED, HPF, 3-band Eq, 1 Aux With Pre/Post Switch, 1 EFX, Pan, Mute, & PFL
Switch for Mono Input
Trim With Peak LED, HPF (CH 9-12)
Main L/R With AFL Switch, ALT 3/4 With AFL, To Main Switch, AUX & EFX Send, AUX & EFX
Return
Tape With PFL Switch, HP/Control Room & Phantom Power
24-bit DSP Effect, 100 Presets, EFX On/Off & EFX Level
Tape With PFL Switch, HP/Control Room & Phantom Power
10 XLR Mic/Inputs
XLR & 1/4" Phone Jack balanced & 1/4" Phone Jack for Mono Input
XLR & 1/4" Phone Jack For Stereo (Ch 9-12) & 1/4" Phone & Phono Jack For Stereo Input
1/4" Phone Jack For Stereo Return & Phono Jack For Tape In
1/4" Phone Jack For Main, ALT 3/4, Aux Send, EFX Send, Control Room & Headphone
Phono Jack For Tape & 1/4" Phone Jack For Footswitch

Specs

Maximum Output Level: 24 dBm
Frequency Response (-1dB): 20 Hz - 20 kHz
T.H.D.: < 0.01%
Crosstalk: > 70 dB
Hum & Noise Ratio: EIN > 127 dB; Residual > 100 dB; Main, ALT3/4, AUX, EFX output > 80 dB
Equalization High: 12 kHz ±15 dB, Mid: 2.5 kHz ±12 dB, Low: 80 Hz ±15 dB
DSP Effect 24 bit / 100 presets - Power Source: AC 100240V, 50/60 Hz (external power supply)
Weight (Net): 13 lbs. / 5.6 kg
Dimensions: (W x H x D) 17.25"x16.5"x2.5" / 436 x 420 x 65 mm
