Tegeler Vari Tube Recording Channel
Description
Some recording chains capture sound—the Tegeler Audio VariTube Recording Channel captures character. Designed around a fully tube-driven Class-A signal path with transformer-balanced I/O, this all-in-one channel strip combines a rich microphone preamp, musical EQ and smooth optical/vari-µ compression into a cohesive analog recording tool built for modern studios. From subtle harmonic warmth and detailed tone shaping to smooth, responsive dynamic control, it brings depth, presence and dimensionality to vocals, guitars, drums and more. With intuitive controls and a naturally musical workflow, the VariTube Recording Channel makes it easy to craft polished, vibrant recordings that feel alive from the very first pass.
Tube Preamp, Musical EQ and Smooth Compression
At the front of the signal path is a low-noise tube microphone preamp with transformer balancing, true 48V phantom power and a high-impedance instrument input for direct recording. The preamp can move from clean and articulate to thick, harmonically rich character, giving you flexibility across a wide range of sources. Paired with it is a versatile equalizer section featuring selectable low-cut filtering, focused mid shaping and broad high-frequency enhancement that allows you to sculpt tone naturally without sounding harsh or clinical.
Optical and Vari-µ Compression for Analog Cohesion
The VariTube Recording Channel combines optical and vari-µ compression characteristics to deliver smooth, program-dependent dynamic control that responds musically to the source material. Its soft-knee behavior and adaptive timing preserve transients while adding cohesion, density and warmth to performances. Whether gently controlling vocals, tightening bass or adding glue to instruments, the compression enhances presence without sounding overly processed. This makes the unit equally effective for tracking, mix enhancement and subtle analog coloration within professional studio workflows.



Features
- Tube channel strip delivers analog warmth and dynamic tone shaping
- Low-noise tube mic preamp adds saturation for enhanced vocal presence
- Optical and vari-µ compression smooths dynamics without losing detail
- Stepped potentiometers give repeatable recall for critical mix sessions
- Switchable input impedance matches both microphones and instruments
- Phase switch and true 48V phantom power expand creative options
- Musical EQ section shapes frequency response for tracking or mixdown
- Program-adaptive attack and release respond to playing nuances
- Transformer-balanced I/O ensures clean signal flow and headroom
Specs
- Product type: Tube channel strip
- Model: Vari Tube Recording Channel
- Circuit type: Class-A tube design
- Tube complement: 3 triodes
- Configuration: Analog channel strip

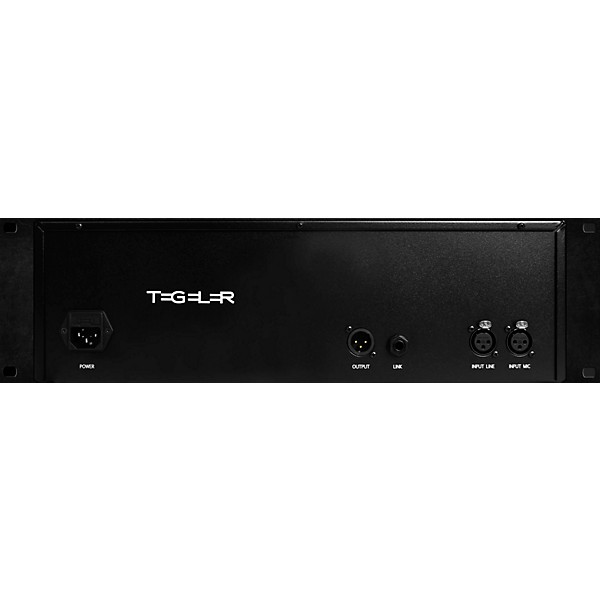

- I/O: Transformer-balanced inputs and outputs
- Phantom power: True 48V
- Phase invert: Yes
- Instrument input: High impedance (100 kohm)
- Character control: Variable from clean to fat
- Low-cut filter: 80Hz–160Hz
- Low-mid boost frequencies: 80Hz, 120Hz, 200Hz, 300Hz, 500Hz, 700Hz, 1kHz
- Mid-cut frequencies: 200Hz, 300Hz, 500Hz, 700Hz, 1kHz, 1.5kHz, 2kHz, 3kHz, 4kHz, 5kHz, 7kHz
- High boost frequencies: 1.5kHz, 2kHz, 3kHz, 4kHz, 5kHz, 7kHz, 10kHz, 12kHz, 16kHz, 20kHz, 24kHz
- Type: Optical Vari-Tube (Vari-µ)
- Knee: Soft-knee
- Timing: Program-adaptive attack and release
- Frequency response: 20Hz–20kHz ±1.5dB
- Potentiometers: Stepped
- Power supply: Internal with toroidal transformer
- Chassis: Rackmount enclosure (3U)
- Height: 5.20" (132 mm)
- Width: 19.0" (483 mm)
- Depth: 9.84" (250 mm)
