Description

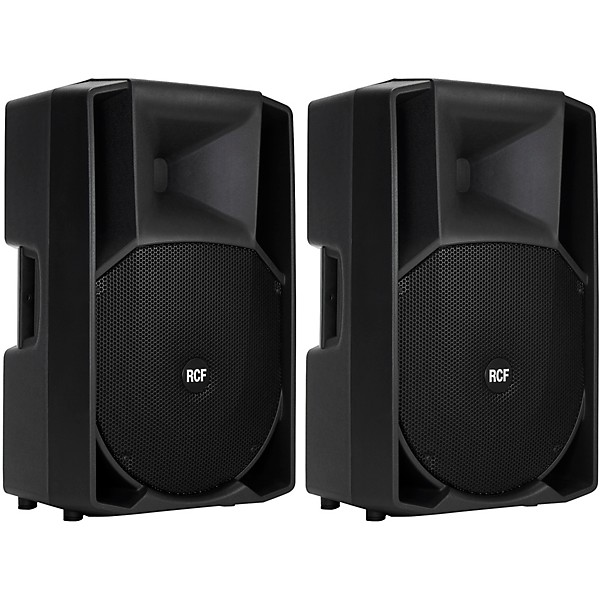

The ART 735-A is a full-range active PA loudspeaker with a 15 in. woofer, linear response and precise low-frequency control. Its ND 840 large-format titanium-dome compression driver is responsible for one of the key advantages of this product: the 3.0” voice coil enables a crossover point of 900 Hz, allowing the driver to produce almost all of the vocal range with unique vocal clarity and sound projection. This bundle includes a pair of ART 735-A speakers.
The large horn offers constant 60°x90° directivity, and the mid-high frequencies are transparent and free from distortion. All ART systems are driven by high-powered class D amplifiers. The amplifier delivers 1400 Watt peak performance and is controlled by a DSP that takes care of crossover, equalization, phase alignment, soft limiting and speaker protections.
The amplifier features both XLR/Jack (Combo) balanced inputs, XLR output link, volume and a switchable EQ Mode (Flat/Boost). The amplifier section features a solid mechanical aluminum structure for additional stability and heat dissipation. ART cabinets are molded from a polypropylene composite material that dampens vibrations even at high volume.
ART 732-A is equipped with ergonomically designed handles with rubber handgrips and can be used in standard configuration or in stage monitor mode.
The large horn offers constant 60°x90° directivity, and the mid-high frequencies are transparent and free from distortion. All ART systems are driven by high-powered class D amplifiers. The amplifier delivers 1400 Watt peak performance and is controlled by a DSP that takes care of crossover, equalization, phase alignment, soft limiting and speaker protections.
The amplifier features both XLR/Jack (Combo) balanced inputs, XLR output link, volume and a switchable EQ Mode (Flat/Boost). The amplifier section features a solid mechanical aluminum structure for additional stability and heat dissipation. ART cabinets are molded from a polypropylene composite material that dampens vibrations even at high volume.
ART 732-A is equipped with ergonomically designed handles with rubber handgrips and can be used in standard configuration or in stage monitor mode.

Features
Speaker configuration
- Active/passive: Active
- Type: Full range
- LF driver: 15 in.
- MF driver: N/A
- HF driver: 1 in., 3 in. VC
- Amplifier class: D
- Wattage: 700W RMS, 1400W peak
- Mixer/preamp: N/A
- Frequency response: 45Hz - 20kHz
- Coverage pattern: 90° x 60°
- Max SPL: 132 dB
- XLR/TRS: 1
- TRS: N/A
- TS: N/A
- RCA N/A
- XLR: 1
- TRS: N/A
- TS: N/A
- SpeakON: N/A
- Cabinet material: Composite
- Width: 17.2 in.
- Height: 27.9 in.
- Depth: 15.3 in.
- Weight: 45.9 lb.
