Phonic

Description

The Phonic AM 844D mixers is a compact and versatile mixing solution with 8 Mic/Line mono channels and 4 stereo inputs, two of which have microphone inputs. Ultra low noise pre-amps ensure high quality sound when used in project studios or sound reinforcement. Low-cut filters on mono channels eliminate unwanted sounds like stage rumble, P-pops, wind noise and low frequency recording studio room resonances. The multi-band EQ on mono channels gives you total control over your mix. The AM series also makes monitoring the mix easy with its dual multi-segment LED level meters and high volume headphone outputs.

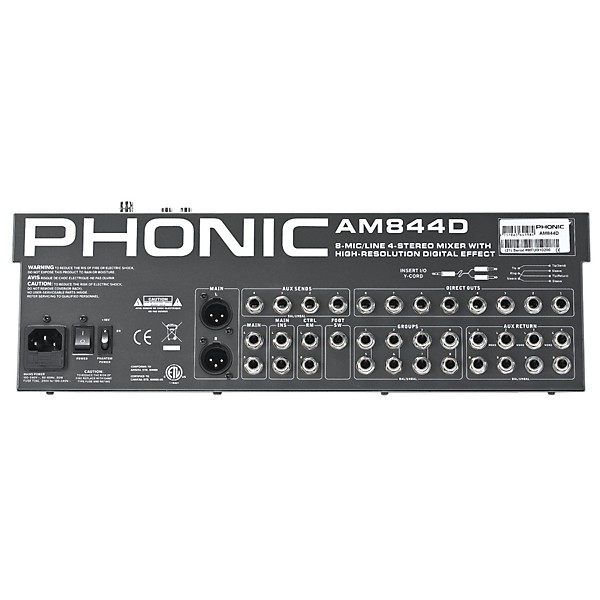

Phonic AM 844D Mixer with USB Interface

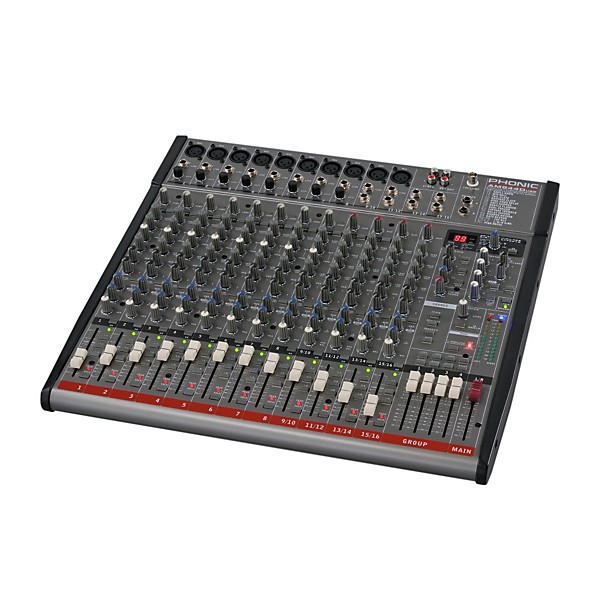

Phonic AM 844D Mixer with USB Interface
Phonic AM 844D Mixer with USB Interface

Features

  • 8 Mic/Line Mono channels
  • 4 stereo channels (two with Mic input)
  • 10 Mic preamps
  • Direct Outputs for Multitrack recording
  • 3 band EQ with swept mid range plus low cut on each mono channel
  • 18dB/oct, 75Hz Loc Cut Filter on each mic channels
  • 4 AUX Sends, AUX 1 & 2 with Pre/Post selector
  • 32/40-bit digital stereo multi-effect processor with 100 programs, tap-delay and test-tones
  • 4 stereo AUX Returns
  • Solo selector on each input channel
  • CTRL RM Phones with multi input source matrix selector
  • 8 Subgroups with Fader control and L-R assign buttons
  • Record Output
  • 2T return with control level and TO MAIN L/R assign button
  • Built-in switching power supply with universal connector, 90-260VAC, 50/60Hz
  • 12V XLR Connector for gooseneck lamp
  • Solo switch selector for AUX Returns

Specs

  • Inputs Total channels: 12
  • Balanced mono mic/line channel: 8
  • Balanced mic/stereo line channel: 2
  • Balanced stereo line channel: 2
  • AUX return: 4 stereo
  • 2T input: Mini stereo and stereo RCA
  • Outputs Main L/R stereo: 2 x 1/4" (6.4 mm) TRS, Bal. & 2 x XLR
  • Group: 8
  • Rec out: Mini stereo and stereo RCA
  • CTRL RM L/R: 2 x 1/4" (6.4mm) TS
  • Phones: 2
  • Channel Channel strips: 12
  • EFX send: 4
  • Pan/balance control: yes
  • Volume controls: 2.4" (60mm) fader
  • Inserts: 8
  • Level Control: Phones level control: yes
  • Main L/R level control: 2.4" (60mm) fader
  • Level meter: 13-segment
  • Phantom power supply: +48V DC
  • Freq. Response: (Rec/Repro) 20Hz-60KHz: +0/-1 dB
  • 20Hz-100KHz: +0/-3 dB
  • Crosstalk Crosstalk (1KHz @ 0dBu, 20Hz-20KHz bandwidth, channel in to main L/R outputs)
  • Channel fader down, other channels at unity <-90 dB
  • Noise: 20Hz-20KHz; measured at main output, Channels 1-4 unit gain; EQ flat; all channels on main mix; channels 1/3 as far left as possible, channels 2/4 as far right as possible. Reference= +6dBu
  • Master @ unity, channel fader down: -86.5 dBu
  • Master @ unity, channel fader @ unity: -84 dBu
  • S/N ratio, ref to +4: >90 dB
  • Microphone: Microphone preamp E.I.N. (150 ohms terminated, max gain) <-129.5 dBm
  • THD: Any output, 1KHz @ +14dBu, 20Hz-20KHz, channel inputs <0.005%
  • CMRR: 1 KHz @ -60dBu, gain at maximum 80dB
  • Maximum Input/Output Level Mic preamp input: +10dBu
  • All other input: +22dBu
  • Balanced output: +28dBu
  • Impedance: Mic preamp input: 2 kohms
  • All other input (except insert): 10 kohms
  • RCA 2T output: 1.1 kohms
  • Equalization: Equalization: 3-band, +/-15dB
  • Low EQ: 80Hz
  • Mid EQ: 100-8kHz, sweepable
  • L-mid EQ: 800Hz
  • H-mid EQ: 3kHz
  • Hi EQ: 12kHz
  • Filter: Low cut filter: 75Hz (-18 dB/oct)
  • USB: USB audio: Stereo in/out
  • Connector type: USB Type B
  • Bitrate: 16-bit
  • Sampling rate: 48kHz Digital effect processor: 100 effects with tap delay control and test tones
  • Footswitch: EFX on/off
  • Power Requirements: 100-240 VAC, 50/60Hz
  • Dimensions (WxHxD)" 16.5 x 5.9 x 16.5" (418 x 149.5 x 420mm)
  • Weight: 13 lb. (5.9kg)
