Description

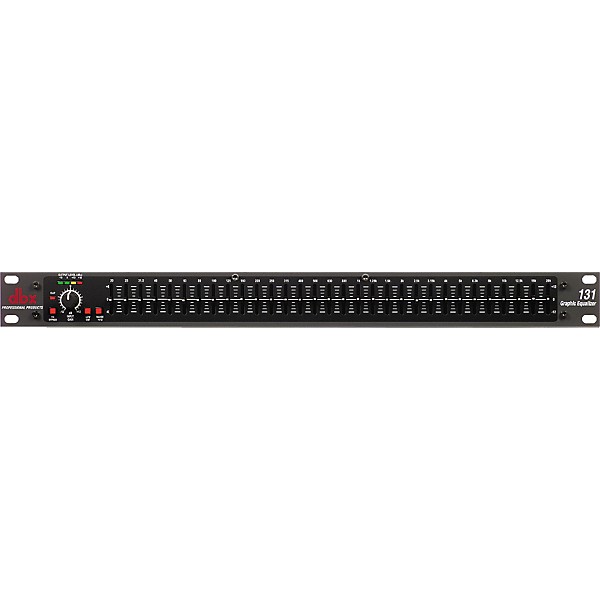

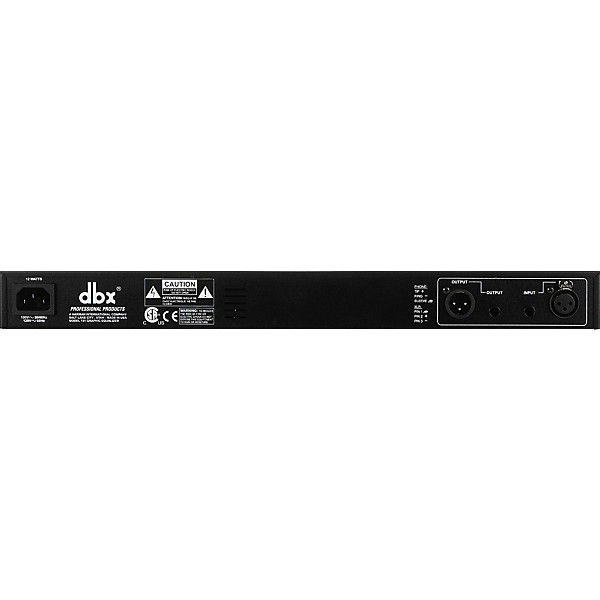

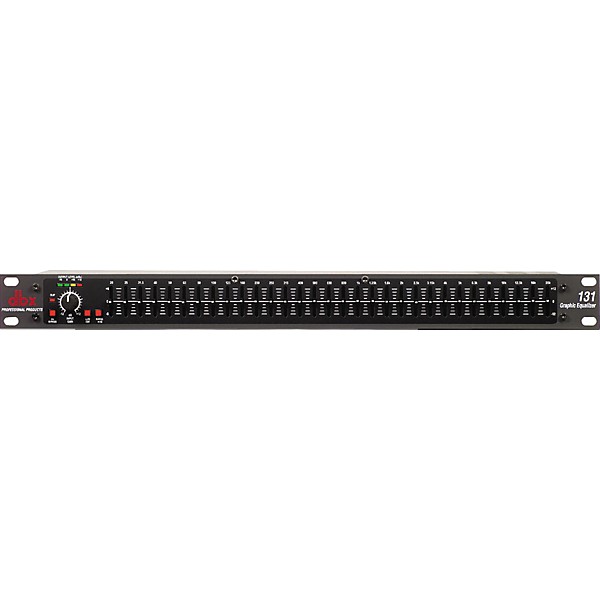

The dbx 131 Graphic Equalizer has a visionary design that will make your job easier. Features include single 31-band, 1/3-octave channel; ISO frequency centers; ±12dB input gain range; switchable 50Hz/12dB per octave low-cut filter; 20mm faders; selectable 6dB or 12dB boost/cut range; XLR and TRS connectors; and balanced inputs and outputs for quiet operation.
Open Box dbx 131 Single 31-Band Graphic EQ Level 1
Open Box dbx 131 Single 31-Band Graphic EQ Level 1
Open Box dbx 131 Single 31-Band Graphic EQ Level 1

Features

  • Single 31-band, 1/3-octave constant Q-frequency channel
  • Switchable boost/cut ranges of 6dB or 12dB
  • 12dB per octave 3dB down @ 50Hz low-cut filter
  • Front-panel bypass switch
  • ±12dB input gain range
  • 4-segment LED ladders for monitoring output levels
  • XLR and TRS inputs and outputs
  • Internal toroidal transformer
  • Frequency response of 10Hz-50kHz
  • Dynamic range of greater than 108dB
  • Signal-to-noise: 90dB
