Description

The Eminence Legend BP102 10" Bass Speaker delivers rich bass tone with a lot of punch. Recommended for professional bass guitar applications in sealed or vented enclosures. The replacement speaker works well in single or multi-driver designs.

Use the Eminence Legend BP102 as a direct replacement speaker in the Ampeg SVT-810E, the Kustom Groove 4120, the Gallien-Krueger 4120 SBX, the Ashdown MAG 410T & MAG810T, and the Basson B410B speaker cabinets. Eminence recommends the Legend BP102 as a direct replacement in the Kustom Groove 310C, the Ampeg BA210SP, the Peavey Bam 210 combo amps.

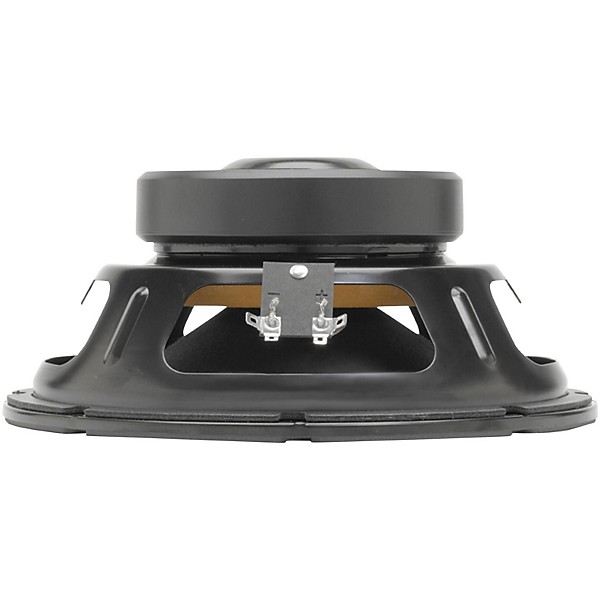

Open Box Eminence Legend BP102 10 Inch 200W Bass Speaker Level 1

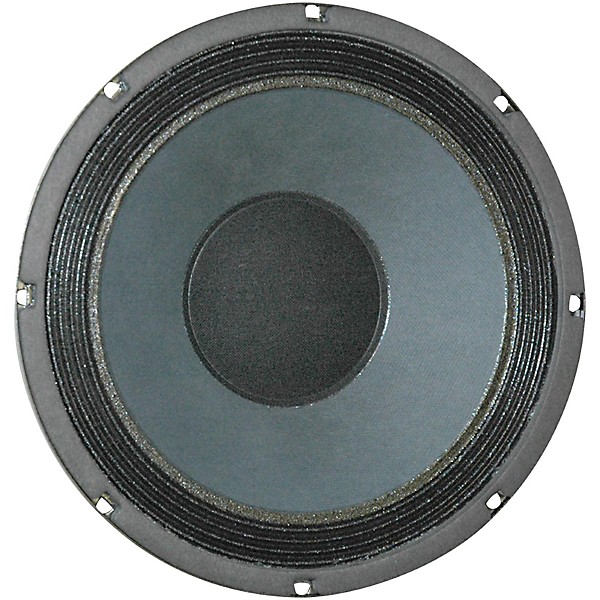

Open Box Eminence Legend BP102 10 Inch 200W Bass Speaker Level 1

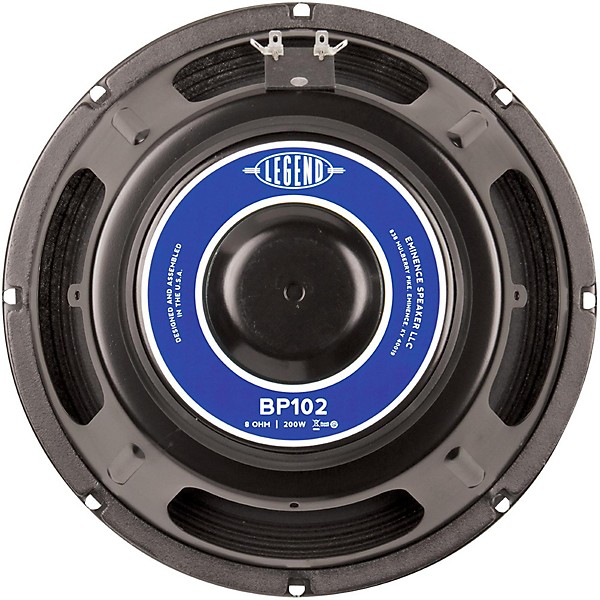

Open Box Eminence Legend BP102 10 Inch 200W Bass Speaker Level 1

Features

  • Rich bass tone with good punch
  • Tight low-end sound
  • Recommended for sealed or vented enclosures
  • Works well in single or multi-driver cabs

Specs

  • Nominal Basket Diameter: 10", 254mm
  • Nominal Impedance*: 8 ohms
  • Power Rating**: 200W
  • Resonance: 35Hz
  • Usable Frequency Range: 44Hz-4kHz
  • Sensitivity***: 92
  • Magnet Weight: 38 oz.
  • Gap Height: 0.312", 7.92mm
  • Voice Coil Diameter : 2", 50.8mm
  • Resonant Frequency (fs): 35Hz
  • DC Resistance (Re): 5.59
  • Coil Inductance (Le): 0.83mH
  • Mechanical Q (Qms): 5.36
  • Electromagnetic Q (Qes): 0.47
  • Total Q (Qts): 0.43
  • Compliance Equivalent Volume (Vas): 91.2 liters / 3.2 cu. ft.
  • Peak Diaphragm Displacement Volume (Vd): 207cc
  • Mechanical Compliance of Suspension (Cms): 0.54mm/N
  • BL Product (BL): 10.0 T-M
  • Diaphragm Mass inc. Airload (Mms): 38 grams
  • Efficiency Bandwidth Product (EBP): 75
  • Maximum Linear Excursion (Xmax): 6.2mm
  • Surface Area of Cone (Sd): 334.5 cm2
  • Maximum Mechanical Limit (Xlim): 10.0mm
  • Mounting Information
  • Recommended Enclosure Volume
  • Sealed: 14-28 liters/ 0.5-1 cu.ft.
  • Vented: 25.5-62 liters/ 0.9-2.2 cu.ft.
  • Overall Diameter: 10.08", 256.1mm
  • Baffle Hole Diameter: 9.05", 229.7mm
  • Front Sealing Gasket: fitted as standard
  • Rear Sealing Gasket:
  • Mounting Holes Diameter: 0.25", 6.4mm
  • Mounting Holes B.C.D.: 9.66", 245.4mm
  • Depth: 4.25", 108mm
  • Net Weight: 8.9 lb., 4 kg
  • Shipping Weight: 9.1 lbs., 4.1 kg
  • Materials of Construction
  • Copper voice coil
  • Polyimide former
  • Ferrite magnet
  • Non-vented core
  • Pressed steel basket
  • Paper Cone
  • Cloth cone edge
  • Zurette dust cap
  • *Please inquire about alternative impedances.
  • **Multiple units exceed published rating evaluated under EIA 426A noise source and test standard while in a free-air, non-temperature controlled environment.
  • ***The average output across the usable frequency range when applying 1W/1M into the nominal impedance. Ie: 2.83V/8ohms, 4V/16ohms.
  • Eminence response curves are measured under the following conditions: All speakers are tested at 1w/1m using a variety of test set-ups for the appropriate impedance | LMS using 0.25" supplied microphone (software
  • calibrated) mounted 1m from wall/baffle | 2ft. X 2ft. baffle is built into the wall with the speaker mounted flush against a steel ring for minimum diffraction | Hafler P1500 Trans-Nova amplifier | 2700 cu.ft. chamber with
  • fiberglass on all six surfaces (three with custom-made wedges)
