Open Box Elation DMX-16 DMX Control System Level 1

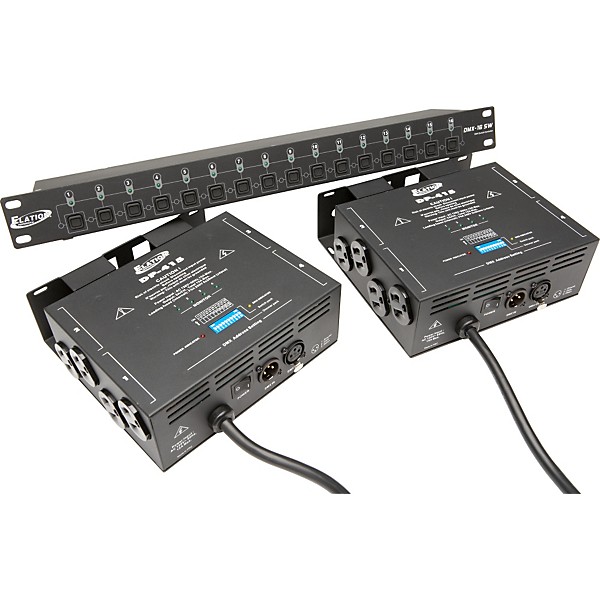

Elation's DMX-16 DMX Control System is an expandable DMX On/Off switch controller system that includes everything you need to take command of your DMX lights: a 16-channel DMX-16SW Control Panel, two 4-channel DP-415 DMX Switch Packs, and the necessary cables to link the system together.

Ready to use right out of the box, the DMX-16 System lets you hook up 8 DMX fixtures (4 on each Switch Pack) for convenient On/Off control from the DMX-16SW Control Panel. If you have more than 8 DMX lights, the system is fully expandable. The DMX-16SW Control Panel can support up to two additional Switch Packs, making it capable of controlling a total of 16 DMX effects. What's more, the DMX-16SW Control Panel will work with any DMX Dimmer/Switch Pack on the market, not just those sold by Elation.

The flexible DMX-16 System doesn't stop there. To handle even larger numbers of DMX fixtures, multiple DMX-16SW Control Panels can be linked together. Up to 32 DMX-16SWs can be linked total, providing at-your-fingertips On/Off control of an impressive 512 DMX channels.

The DMX-16 lighting control system is an excellent solution for showrooms, hotels, trade shows”or even DJs and entertainers who need basic switch control of DMX lights”the DMX-16 System represents a much-needed solution for all types of DMX users.

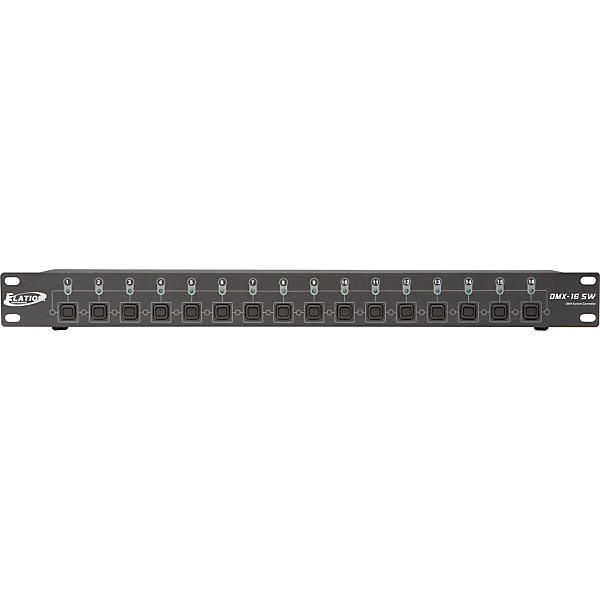

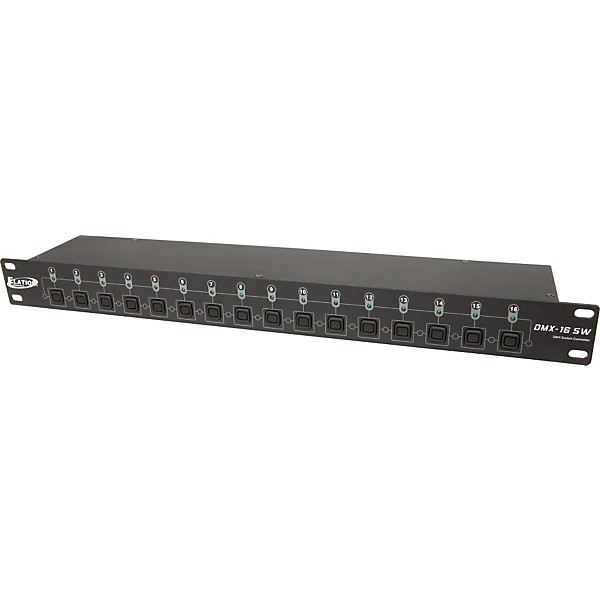

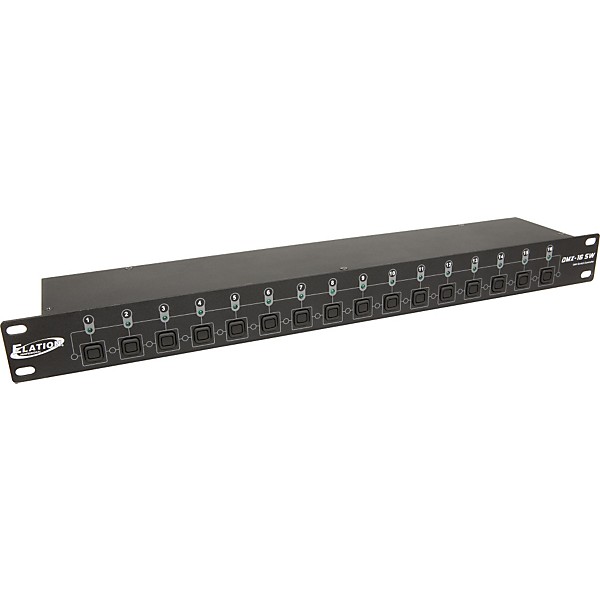

The 16-channel DMX-16SW Control Panel features 3-pin XLR, DMX Input and Output for easy linkage to other control panel units and to dimmer/switch packs. The Control Panel includes 16 On/Off channel switches with LED indicators, a 10-position dip switch for setting DMX address, and power failure memory.

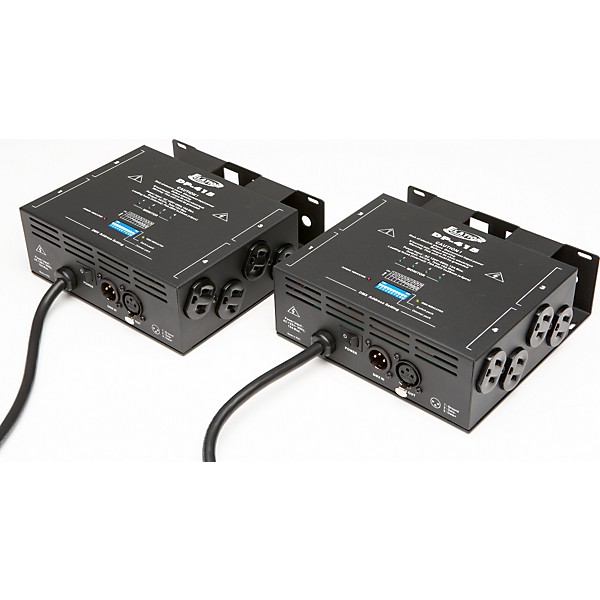

The 4-channel DP-415 Dimmer/Switch Packs are equipped with dual 15 amp Edison sockets per channel. They have a load capacity of 5 amps per channel, with a 15 amp maximum On at one time. Each DP-415 Pack features a 10 position dip switch for setting DMX address, 4 channel intensity LED indicators, and a convenient reversible hanging bracket that allows for very flexible rigging options. They are extremely compact and lightweight.

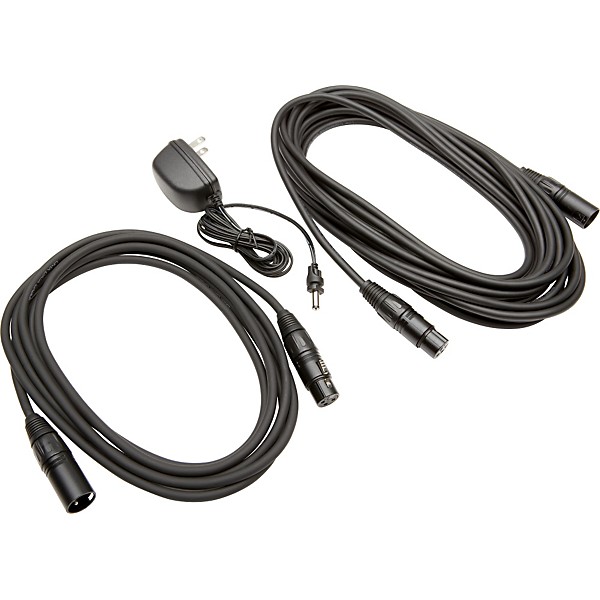

The DMX-16 System also comes with a 25 DMX cable and a 10 DMX cable, which are used to connect from the control panel to a pack and from pack to pack. Everything needed to hook up your DMX fixtures for switch control is included in this one convenient lighting system package.
