Description

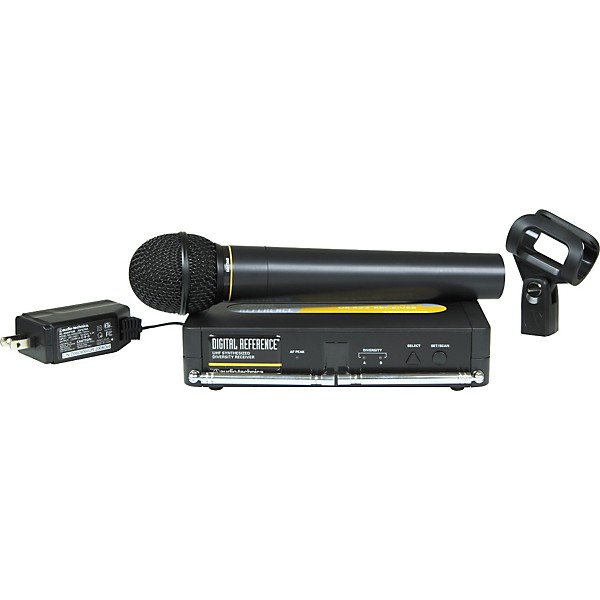

The DR-2606 from Digital Reference is a perfect wireless microphone system for professional miking applications in situations where multiple musicians using wireless mics need to share a stage. With 8 UHF channels to choose from, each vocalist can be sure to maintain excellent clarity with excellent rejection of other signals. The DR-2606 mic is rugged enough for long tours, while remaining great sounding for everything from hip-hop to opera and beyond!
Open Box Digital Reference DR-2606 Vocal Wireless Microphone System Level 1
Open Box Digital Reference DR-2606 Vocal Wireless Microphone System Level 1
Open Box Digital Reference DR-2606 Vocal Wireless Microphone System Level 1

Features

  • System synthesized 8-channel diversity dual antenna system with scan mode handheld microphone/transmitter
  • Rugged unidirectional dynamic mic
  • Advanced dipole antenna system
  • 8 selectable UHF channels
  • Power, RF and AF peak indicators

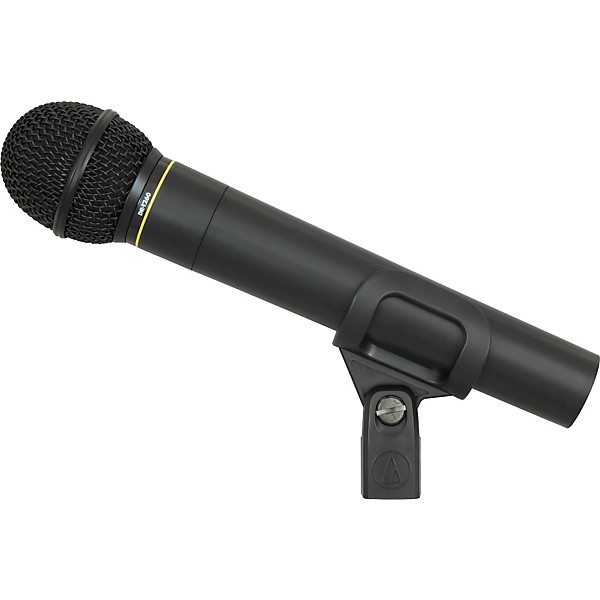

  • Accessory Included: AT8456a Quiet-Flex stand clamp

Specs

Overall system
  • Operating Frequency: 470.000 MHz to 491.750 MHz
  • Number of Channels: 8
  • Frequency Stability: ±0.005%, Phase Lock Loop frequency control
  • Modulation Mode: FM
  • Maximum Deviation: ±15 kHz
  • Operating Range: 150' minimum
  • Operating Temperature Range: 40 F (4 C) to 110 F (43 C)
  • Frequency Response: 100 Hz to 13 kHz

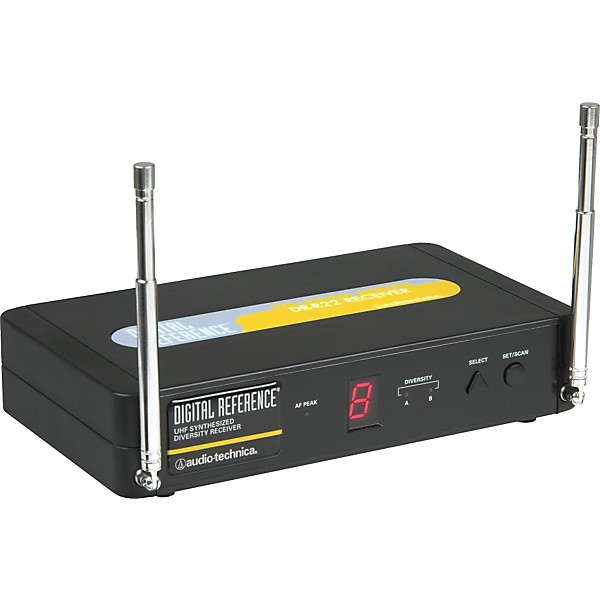

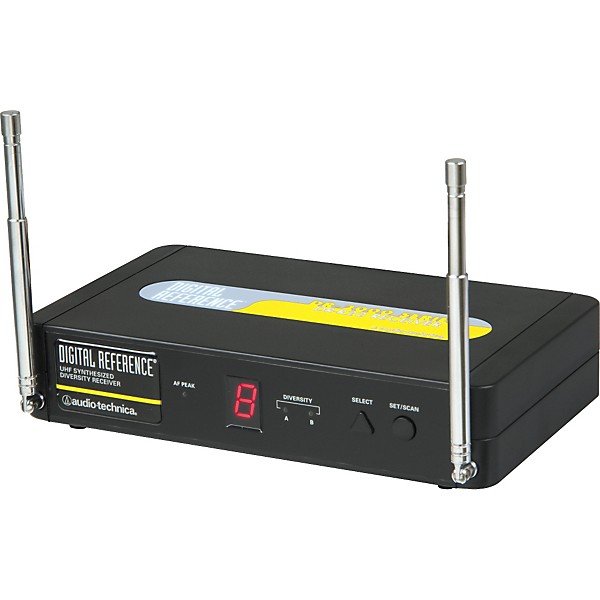

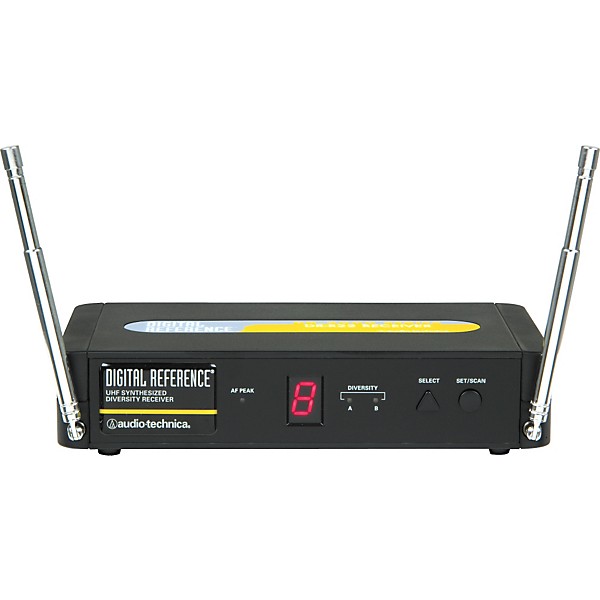

Receiver
  • Receiving System: Synthesized 8-channel diversity dual antenna system with scan mode
  • Image Rejection: 50 dB minimum
  • Signal-to-noise Ratio: 80 dB at 10 kHz deviation (IEC-weighted), maximum modulation 15 kHz
  • Total Harmonic Distortion: <=1% (10 kHz deviation at 1 kHz)
    Sensitivity: 25V for 60 dB S/N (IEC-weighted)
  • Audio Output: 350 mV (1 kHz modulation, 10 kHz deviation, 100 k ohm load)

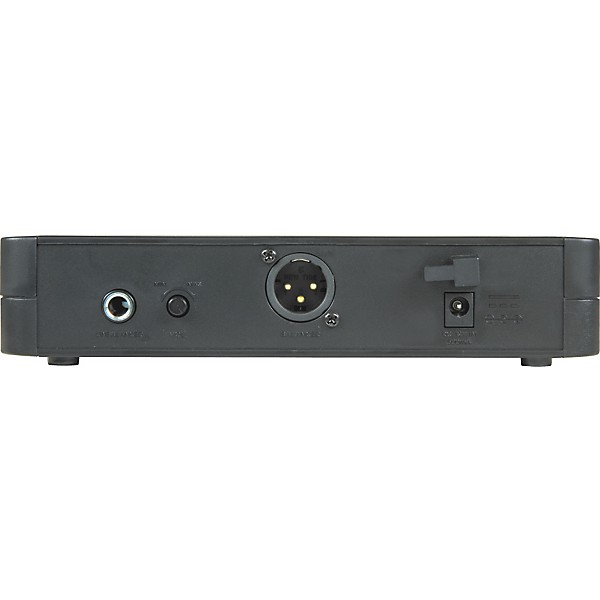

  • Output Connector: Balanced XLR & unbalanced 1/4" TS ("mono") phone jack
  • Power Supply: 120V AC 60 Hz, 6 VA; or 12V DC, 200 mA, center positive, with external slimline DC supply
  • Dimensions> 8.27" (210.0 mm) W x 1.72" (43.5 mm) H x 4.73" (120.0 mm) D
  • Net Weight: 18.9 oz (536 g); without AC adapter, 11.9 oz (336 g)

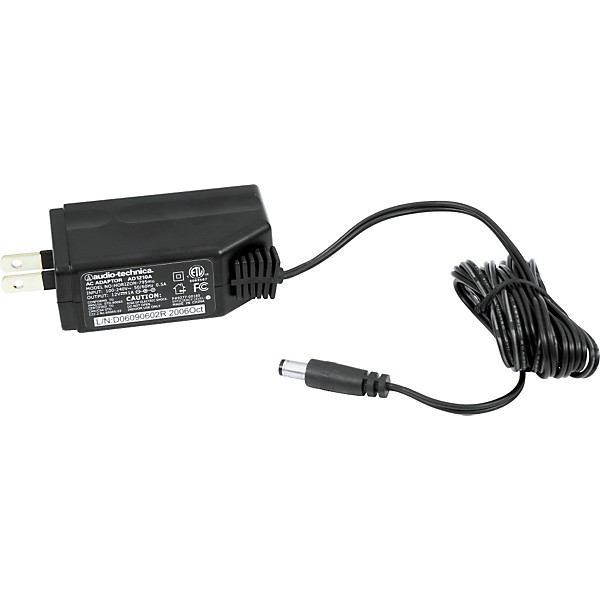

  • Accessories Included>: AD1202A 120V docking AC adapter; 120V AC IEC cordset

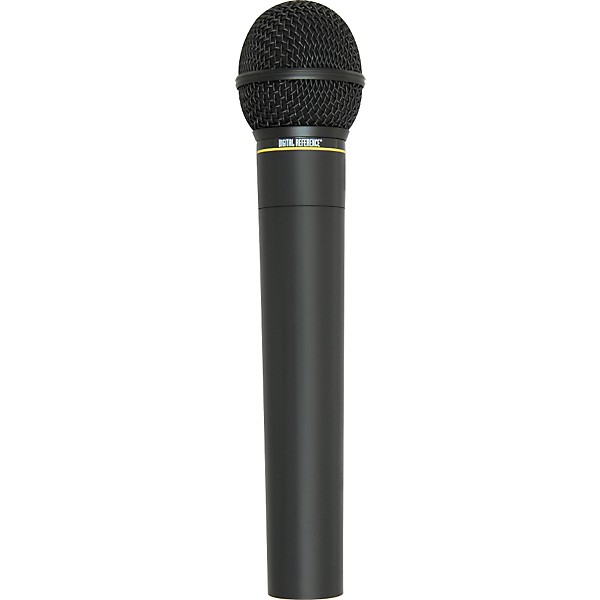

Handheld transmitter
  • RF Power Output: 10 mW nominal, 5 mW typical
  • Spurious Emissions: Under federal regulations
  • Dynamic Range: >=90 dB, A-weighted
  • Microphone Element: Dynamic unidirectional
  • Battery: AA alkaline, not included
  • Current Consumption: 60 mA typical
  • Battery Life: 8 hours (depending on battery type and use pattern)
  • Dimensions: 9.65" (245.0 mm) long, 2.11" (53.5 mm) diameter
  • Net Weight: 11.2 oz (316 g)
