Description

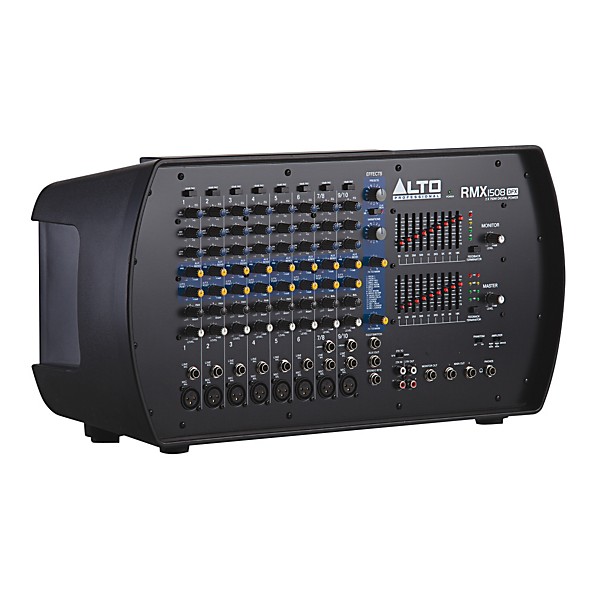

The Alto RMX1508DFX is a 1500 watt powered mixer with EQ and effects. It features 1500 watts of Class D power. Class D amplification makes the RMX1508DFX not only powerful but also incredibly light compared to other solutions.

The RMX1508DFX also features a useful array of tools including 8 XLR jacks with phantom power, 8 Line jacks and stereo RCA. This means that whether you're plugging in guitars, mics, keyboards or even an iPod for playback between sets, you're covered with the RMX1508DFX .

Once everything is connected, there's a full on-board digital effects processor and 3-shelf EQ on each mono and stereo channel so you can dial in the perfect sound at any venue. A 24-bit, built-in Alesis DSP effects engine supplies ample options for sweetening including Hall, Room, Vocal & Plate reverbs, Mono & Stereo delay (max delay time 650ms), Chorus, Flanger & Reverb modulations, Reverb+Delay, Reverb+Chorus and Reverb+Flanger combinations. 256 different Alesis DSP presets provide ample options for any situation. When the gig is done, inset, molded handles on both ends make it super easy to transport.
Open Box Alto RMX1508 DFX 1500W Powered Mixer with FX Level 1

Features

  • Lightweight and ruggedly built
  • 18 total inputs
  • 8 XLR jacks with phantom power
  • On-board digital effects processor
  • 3-shelf EQ on each mono and stereo channel
  • Continuous 2 x 750W at 8 ?

Specs

  • Microphone input: Electronically balanced, discrete input configuration
  • Frequency response: 10Hz to 55kHz, +/“3dB
  • Distortion: (THD & N) 0.006% at +4dBu, 1kHz
  • Gain: 50dB (MIC)
  • SNR: (Signal to Noise Ratio) >90dB
  • Line input
  • Electronically balanced
  • Frequency response: 10Hz to 55kHz, +/“3dB
  • Distortion: (THD & N) 0.04% at +4dBu, 1kHz
  • Gain: 30dB
  • Stereo input channels
  • Line input: Unbalanced
  • Frequency response: 10Hz to 55kHz, +/“3dB
  • Distortion: (THD & N) 0.006% at +4dBu, 1kHz
  • Impedances
  • Microphone input: 1.4kOhm
  • Channel Insert return: 2.5kOhm
  • All other inputs: 10kOhm or greater
  • Tape out: 1kOhm
  • All other output: 120Ohm
  • Equalization
  • Hi shelving: +/“15dB @12kHz
  • Mid bell: +/“15dB @2.5kHz
  • Low shelving: +/“15dB @ 80Hz
  • Alesis DSP Section
  • A/D and D/A converters: 24-bit
  • DSP resolution: 24-bit
  • Type of effects
  • Hall, Room, Vocal & Plate Reverb
  • Mono & Stereo DELAY (max delay time 650ms)
  • Chorus, Flanger & Reverb Modulations
  • Reverb+Delay, Reverb+Chorus,
  • Reverb+Flanger combinations
  • Presets: 256
  • Controls
  • 16-position PRESET Selector; 16-position VARIATION selector
  • CLIP LED; MUTE SWITCH with LED indicator
  • Main Mix Section
  • Noise: (Bus Noise) Fader 0 dB, channels muted:“85dBr (ref.:+4dBu)
  • Fader: 0dB, all input channels assigned and set to
  • UNITY gain:“71dBr (ref.:+4dBu)
  • Max output: +27dBu balanced, +22dBu unbalanced, 1/4" jacks
  • AUX Sends max out: +22dBu
  • Output Power
  • Stereo mode
  • 680W(RMS) @ 4ohm
  • 770W(EIAJ) @ 4ohm
  • 429W(RMS) @ 8ohm
  • 399W(EIAJ) @ 8ohm
  • Bridge mode 1553W @ 8ohm
