MONO

Description

The MONO Power Supply, Small is a USB-powered, ultra-low noise unit built for small pedalboards. You can connect up to five pedals and power the unit with any USB-A wall adapter or go mains-free and plug into a power bank. Each Power Supply is built with a lightweight and durable aluminum casing and at just 1” depth, will fit underneath the shallowest of pedalboards. When you’re ready to step up to a bigger board, you can simply link the Power Supply, Small, to a Power Supply, Medium or Large and power up to 15 pedals.

What's included:
2.1mm x 5.5mm Power Cable Short (x5)
3-way Daisy Chain
USB-A to USB-B Cable
MONO Power Supply Mounting Brackets (x2)
M3.5*13 Pan Head, Self-Tapping, Dovetail Screws (x6)
Hook-and-Loop Tape

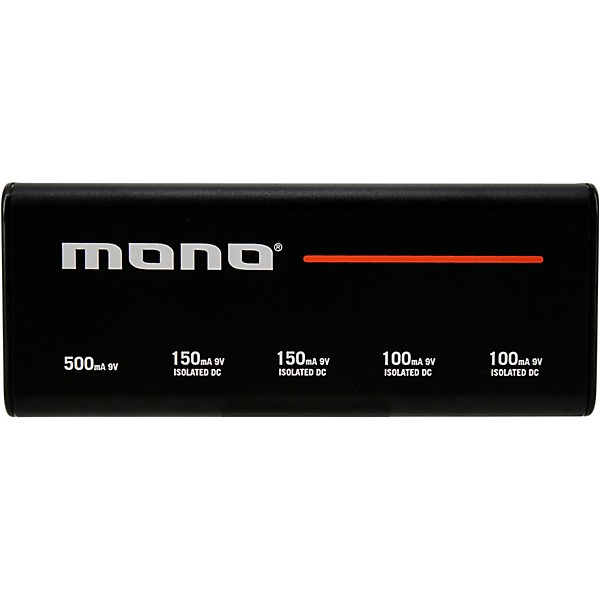

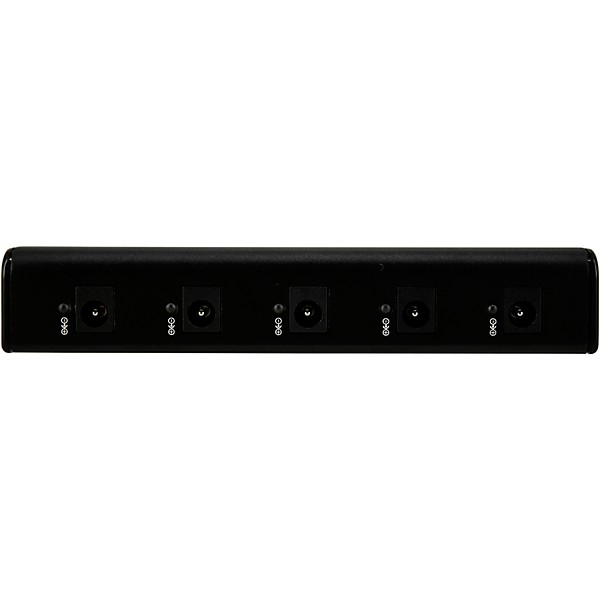

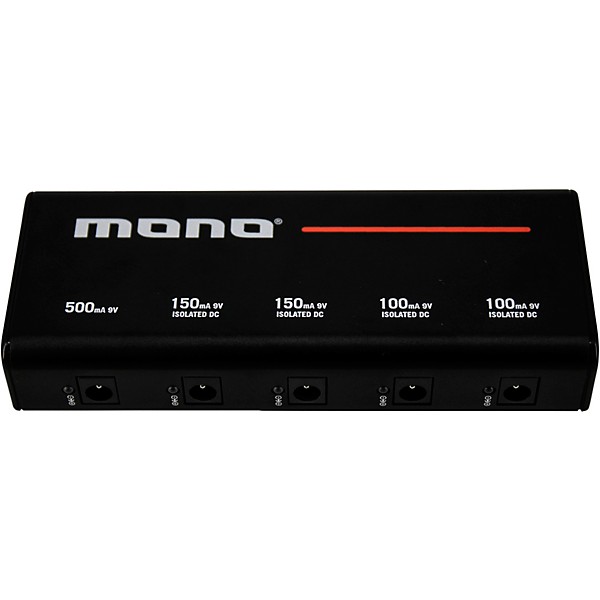

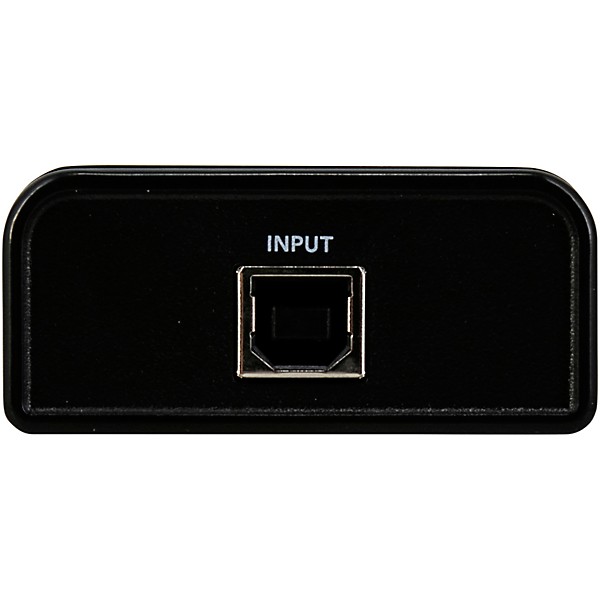

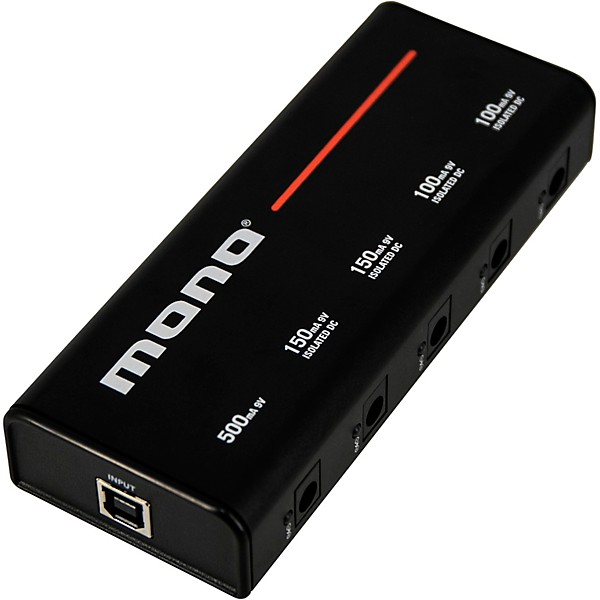

MONO PFX-PS-S-BLK Small Power Supply
MONO PFX-PS-S-BLK Small Power Supply
MONO PFX-PS-S-BLK Small Power Supply

Features

  • 4 isolated 100mA outputs, one 500mA output
  • 1" profile
  • Lightweight and durable aluminum casing
  • Expandable with any other MONO Power Supply
  • Input filter and multi-stage output filters for an extremely low noise floor
  • Short circuit, overload and thermal protection
  • Energy efficient usage and design
  • Universal compatibility with any power source worldwide
  • Individual status LED for each outlet to show output status
  • Includes lightweight rugged mounting brackets and premium hook-and-loop tape for alternative mounting option

Specs

  • Input: 5V 2.1A, USB-B
  • Outputs: 9V DC 150mA, center negative (x2) | 9V DC 100mA, center negative (x2) | 9V DC 500mA, center negative (x1)
  • Dimensions
  • Size: 5.51" x 2.20" x 0.98" (140mm x 56mm x 25mm)
  • Weight: 5.36 oz (152 g)
