Description

The MONO Power Supply, Large is an ultra-slim, expandable pedalboard power supply. It features 10 low-noise isolated outputs, including three with variable voltage. Each Power Supply is built with a lightweight and durable aluminum casing and at just 1" depth, will fit underneath the shallowest of pedalboards.

What's included:
2.1mm x 5.5mm Power Cable Short (x5)
2.1mm x 5.5mm Power Cable Long (x5)
IEC Cable
EIAJ-05 Power Adapter Cable
24V Power Adapter
MONO Power Supply Mounting Brackets (x2)
M3.5*13 Pan Head, Self-Tapping, Dovetail Screws (x6)
Hook-and-Loop Tape

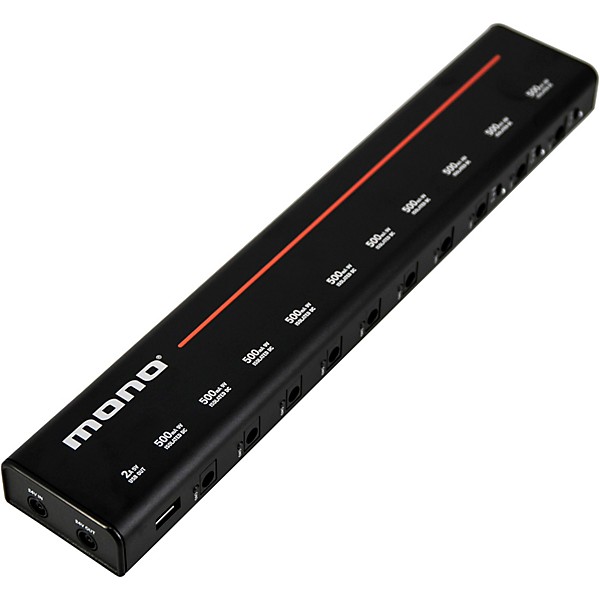

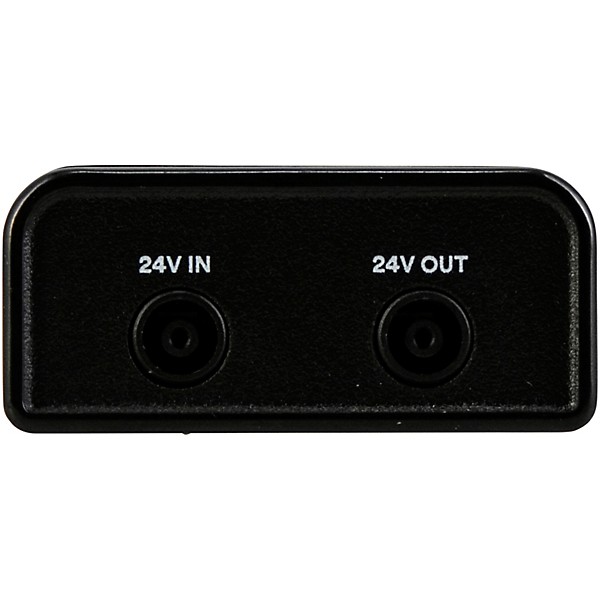

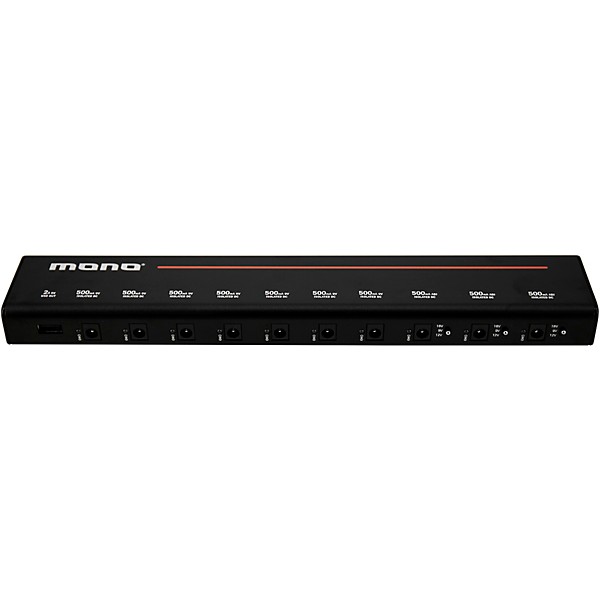

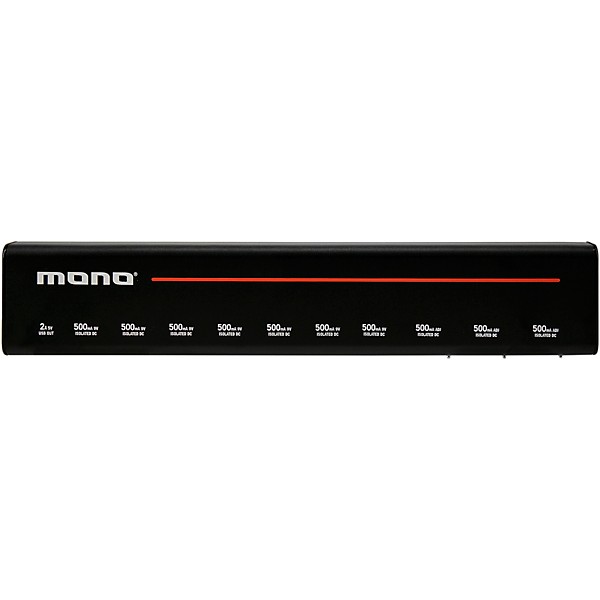

MONO PFX-PS-L-BLK-US Large Power Supply
MONO PFX-PS-L-BLK-US Large Power Supply
MONO PFX-PS-L-BLK-US Large Power Supply

Features

  • Input filter and multi-stage output filters for extremely low noise floor
  • Short circuit, overload and thermal protection
  • Energy efficient usage and design
  • 7 high current, isolated, low-noise DC outputs
  • 3 variable (9/12/18V) high current isolated, low-noise DC output
  • USB OUT (5V/2A) for powering a MONO Power Supply, Small or charging devices
  • 24V OUT @ 2A for powering another MONO Power Supply, Medium/Large or other devices
  • Ultra slim profile below 1" for mounting below pedalboards
  • Ultra light 304g (10.72oz) to always remain portable
  • Durable aluminium enclosure for all playing conditions
  • Universal 24V power adapter for compatibility with any power source worldwide
  • Individual status LED for each outlet to show output status
  • 10 power cables included
  • Lightweight, rugged mounting brackets included
  • Premium hook-and-loop tape for an alternative form of mounting included

Specs

  • Input: 24V DC @ 3A (5.5mm x 2.1mm plug)
  • Outputs: 9V DC 500mA, center negative (x7) | 9/12/18V DC 500mA, center negative (x3) | 5V 2A, USB-A (x1) | 24V DC 2A (x1)
  • Dimensions
  • Weight: 10.72oz (304g)
  • Size: 12.32 x 2.20 x 0.98 inches (313 x 56 x 25 mm)Size: 7.99 x 2.20 x 0.98 inches (203 x 56 x 25 mm)
