Kustom PA

Description

This special PA package includes a pair of Kustom KPC12 PA speakers, a Phonic MAX 1000 Power Amplifier, and a pair of Gear One Speakon-to-1/4" cables to hook them up.

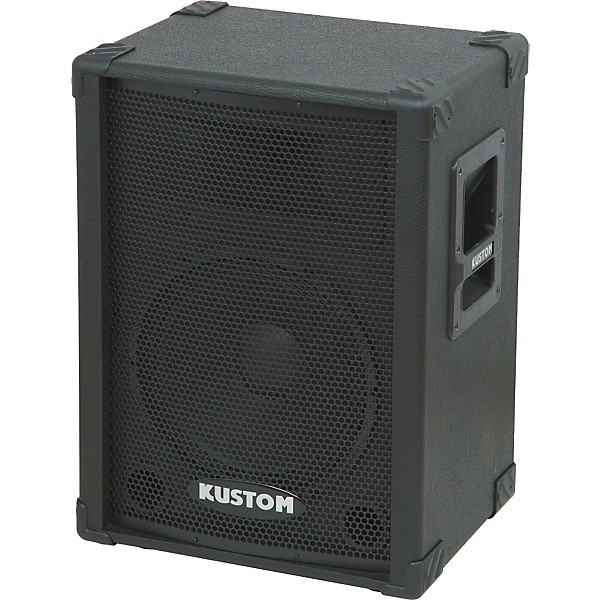

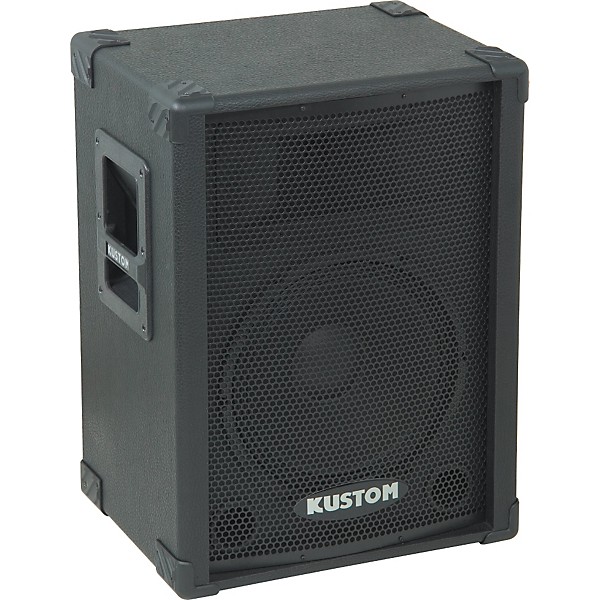

KPC12 PA Speaker Cab with Horn

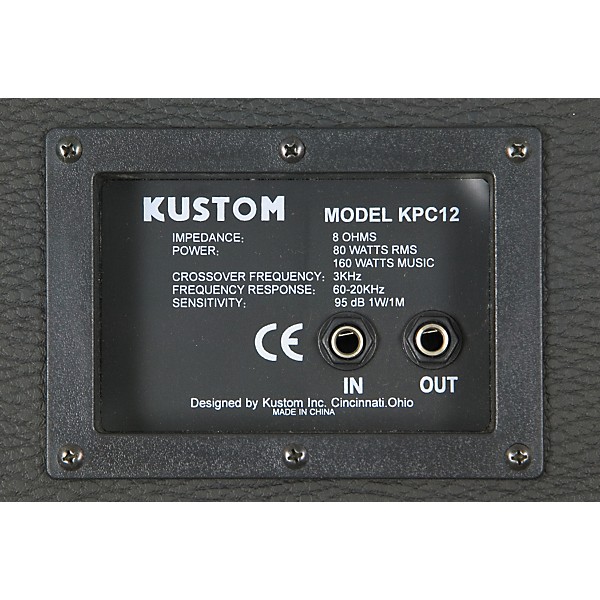

The Kustom KPC12 12" PA Speaker Cabinet with Horn uses a specially voiced crossover to ensure clear separation of frequencies for crisp, full-range reproduction. A 12" woofer delivers deep low frequencies, while a 6" x 12" horn produces bright high-end tones. The Kustom KPC12 PA Speaker Cabinet has 2 parallel input jacks, sturdy construction with reinforced corners and a heavy-duty Tolex covering. Recessed handles on the side make them easier to transport between gigs.

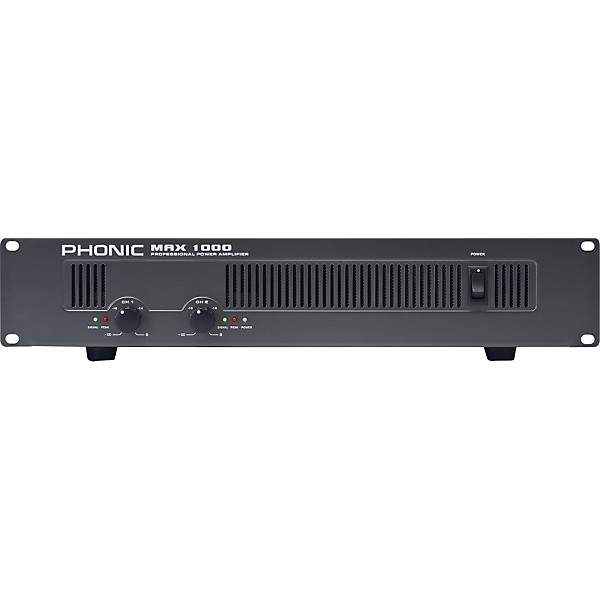

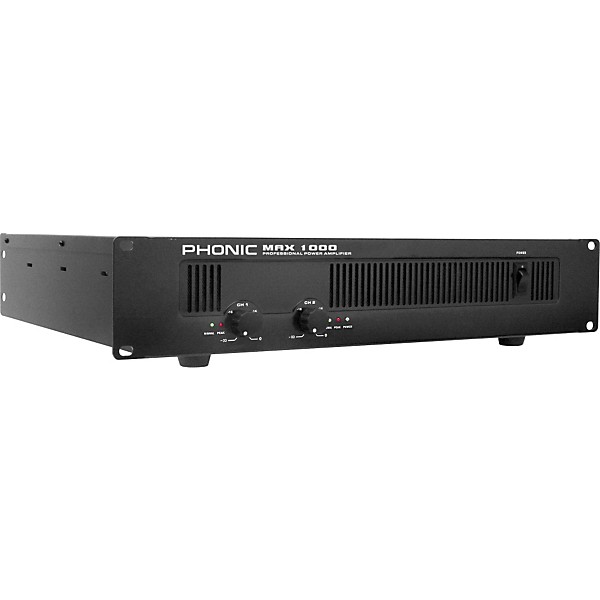

Phonic MAX 1000 Power Amplifier
The Phonic MAX 1000 Power Amplifier delivers 600 Watts of power at 8 ohms (bridge mono), 300W of power at 4 ohms (stereo)-ideal for small- to medium-size venues like churches, auditoriums, and more. Input to the MAX 1000 is achieved via XLR or phone jack, and output is achieved through either Speakon-type connectors or binding posts. The MAX 1000 features ground switches, and the option to choose between stereo, parallel and bridge operating modes, making it an affordable amplifier that is exceptional for real-world application.

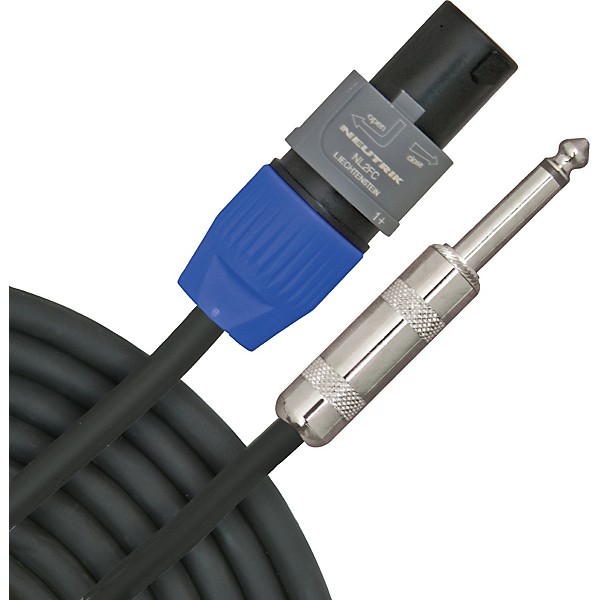

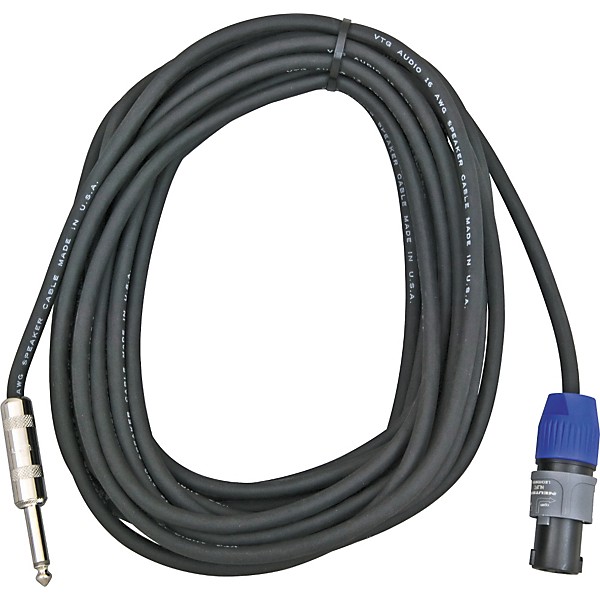

Gear One Speakon to 1/4" cable
This 16-gauge speaker cable is 25 feet in length and features a Speakon connector on one end and a 1/4" connector on the other.
Kustom PA KPC12 / Phonic MAX 1000 Spkr & Amp Package
Kustom PA KPC12 / Phonic MAX 1000 Spkr & Amp Package
Kustom PA KPC12 / Phonic MAX 1000 Spkr & Amp Package

Features

KPC12 PA Speaker Cab with Horn
  • 12" woofer for deep bass tones
  • 6" x 12" horn for shimmering highs
  • Specially voiced internal crossover provides superb separation of frequencies

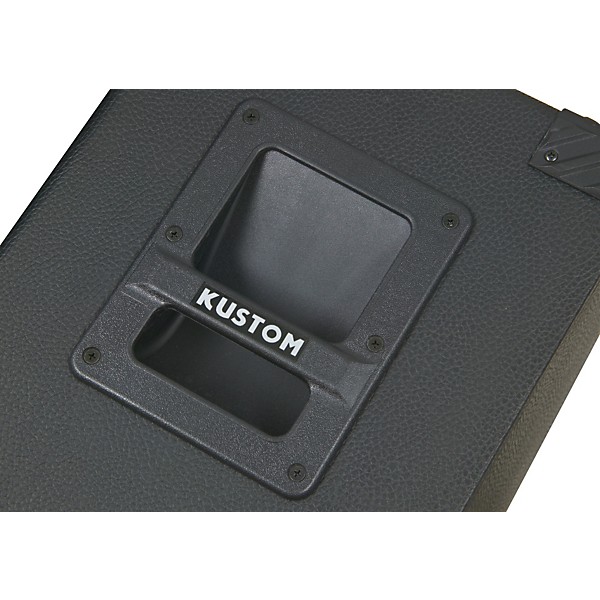

  • Recessed handle

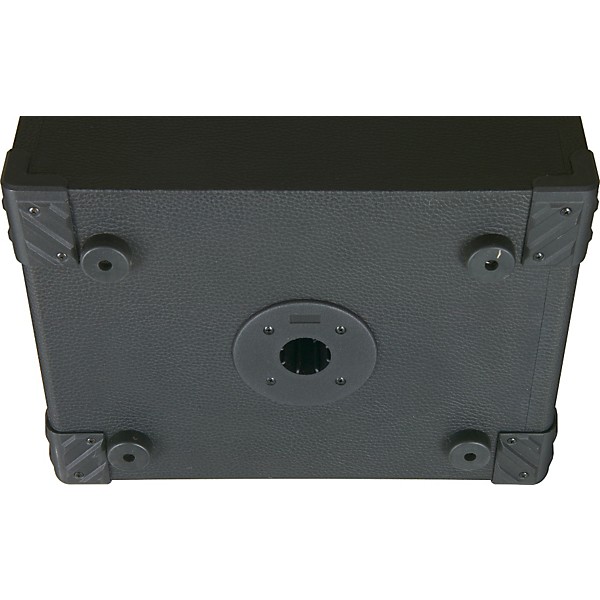

  • 1-3/8" polemount
Phonic MAX 1000 Power Amplifier
  • High-current toroidal transformers for greater power and low noise
  • Balanced 1/4" TRS and XLR inputs for maximum flexibility
  • Grounding / Floating switch to avoid grounding loop
  • Binding post and Speakon-type outputs
  • Front mounted gain controls for easy access
  • Signal and Peak LED indicators to monitor performance
  • Short circuit, thermal, subsonic, RF protection, output DC offset
  • Power on/off muting
warning

WARNING: This product can expose you to chemicals including Diisononyl phthalate (DINP), which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

Specs

Phonic MAX 1000 Power Amplifier
    Stereo Mode:
    • 200W @ 8 ohms EIA, 1kHz
    • 300W @ 4 ohms EIA, 1kHz
    Bridge Mono Mode:
    • 600W @ 8 ohms EIA, 1kHz
    • Total Harmonic Distortion: 0.1%
    • Output circuitry: Class H
    • Input Sensitivity @ 8 ohms: 1.23V (+4dBu)
    • Distortion (SMPTE-IM): <0.01%
      Noise (unweighted 20Hz - 20 kHz below rated output): 100dB
    • Damping Factor: >300 @ 8 ohms
    • Frequency Response: 20 Hz-20kHz, +0/-1dB points: 5Hz-50kHz
    • Input Impedance: 20 kOhm balanced, 10kOhm unbalanced
    • Cooling: Continuous variable-speed fan, front-to-rear air flow
    • Input: XLR and 1/4" TRS
    • Output: Speakon and binding posts
    • LED Indicators: Blue Power, Green Signal, Red Peak
    Controls:
    • Front Panel: CH1 and CH2 GAIN knobs with 41 detents
    • Rear Panel: Parallel, Bridge, and Stereo Operation Mode side switches, floating on/off switch, and Current-Break reset button
    • Protection Circuitry: Short circuit, thermal, subsonic, RF, output DC offset, power on/off muting
    • Power Consumption: 600W
    • Power Requirement (depends on region): 100120VAC, 220240VAC, 50/60Hz
    • Dimensions: 19" W x 3.46" H x 15.9" D
    • Weight: 33lb.
