Description

The Focusrite ISA428 ADC provides 8 channels of the highest quality conversion at frequency rates of up to 192kHz. (Running at 96kHz provides 16 simultaneous digital outputs alongside the 4 main analog outputs.) Digital output formats include 8 channel single/dual wire AES/EBU, 8 channel SPDIF, and single/dual port 8-channel ADAT lightpipe, all available on a single ADC card. 2 ISA428s can be used with a single ADC, using the 4 extra line input channels on the rear of the unit containing the optional ADC. This allows expansion from a 4-pre amp system to an 8-pre amp system

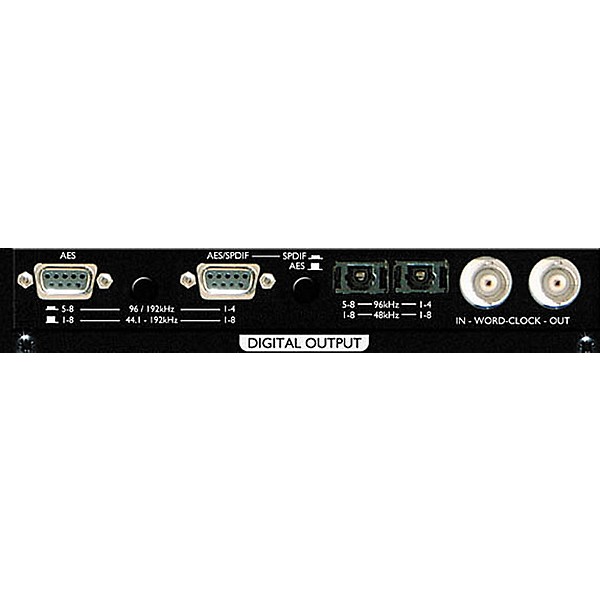

Focusrite ISA428 ADC 192kHz A-D Option

Specs

  • Sample Frequency = 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz or 192kHz
  • Bit Depth = 16, 20 or 24bit
  • Clock Options = Standard or 256x (super Clock)
  • 0dBfs = +22dBu
  • Dithering = Switchable
  • Dynamic Range = 110dB
  • Clock Jitter = less than 250 picoseconds
  • Clock Jitter when sync'd to an external clock = 1 nanosecond
  • THD+N AMPL = -120dBFS 'A' weighted
  • CONNECTIONS
  • ADAT Lightpipe = Optical
  • AES/SPDIF = 2 x 9 pin D-type - requires breakout cable
  • WordClock = BNC connector
