Eliminator Lighting

Description

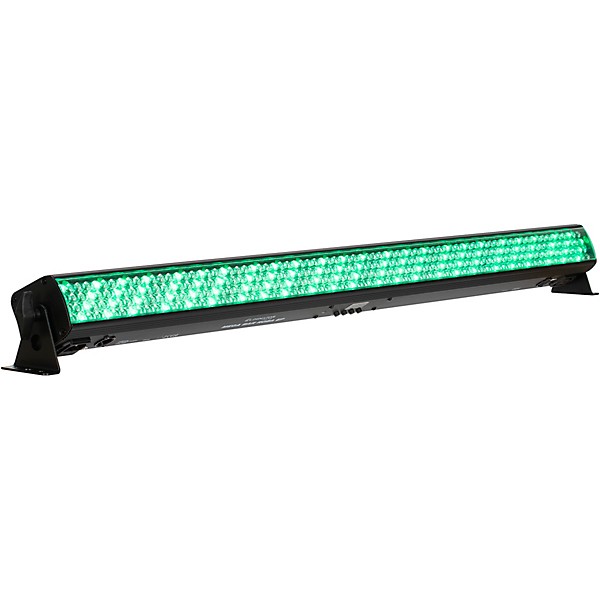

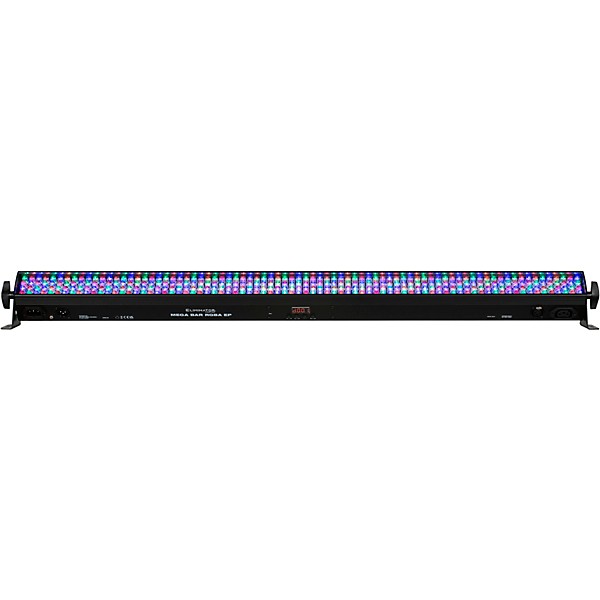

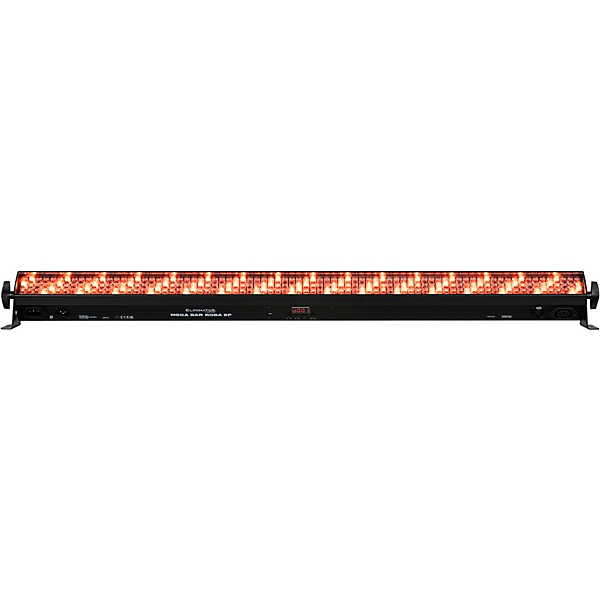

The Eliminator Lighting Mega Bar RGBA EP wash lighting fixture brings versatile and dynamic illumination to your events. With 320 10 mm RGBA LEDs, this 42" bar generates extensive color mixing and lighting effects to transform any stage or venue. Achieve stunning looks with variable RGBA color mixing, 48 built-in color macros, LED pulse and strobe effects and flicker-free operation. Position the Mega Bar RGBA EP 2 meters from your stage to achieve 650 lux of vibrant lighting.

Seamless Control

Unleash your creative vision with extensive control options for the Mega Bar RGBA EP. Use the 4-button LED display for easy access to effects and settings. Connect via DMX-512 protocol and choose from seven channel modes for customized control. With the optional ADJ RFC wireless remote, wirelessly adjust color, effects, dimming and more.

Link Multiple Bars for Expansive Looks

To create a synchronized lightshow, easily link multiple Mega Bar RGBA EP fixtures. The built-in magnetic end caps align bars seamlessly. Daisy chain power and data using the IEC and DMX sockets. With wired digital communication between fixtures, you'll get uniform color output across linked bars. Use the nearly unlimited color options to coat your stage, walls or event space in perfect hues.

Built to Last With Durable Construction

Designed for longevity, the Mega Bar RGBA EP features a rugged metal construction to withstand heavy use. The 50,000 hour LED lifespan means years of reliable operation at events and venues. With low power consumption and maintenance, this 42" wash light gives you vibrant, professional-grade illumination at an affordable price. Bring dynamic lighting effects to any show with the Eliminator Lighting Mega Bar RGBA EP.

Eliminator Lighting Mega Bar RGBA EP Wash Lighting Fixture
Eliminator Lighting Mega Bar RGBA EP Wash Lighting Fixture
Eliminator Lighting Mega Bar RGBA EP Wash Lighting Fixture

Features

320 10 mm RGBA LEDs for variable color mixing and effects 48 built-in color macros, LED pulse and strobe effects 7 DMX channel modes and 6 operational modes for versatile control Magnetic end caps for linking multiple fixtures
warning

WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, and to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Specs

Source
  • 1-Meter (42-inch) indoor Linear Fixture with 320, 10 mm RGBA LEDs (64 Red, 96 Green, 96 Blue & 64 Amber) Beam angle: 30-degree
  • Long life LED (Rated at 50,000 hrs.)
  • Light output : 650 LUX @ 2M; 275 LUX @ 4M (30-degree beam)
Effects
  • Variable RGBA color mixing offers a seemingly unlimited color palette - Great for Stage or Wall Washing
  • 48 built -in Color Macros
  • LED pulse & strobe effect
  • Flicker Free
  • Refresh Rate: 410Hz • Electronic Dimming: 0 - 100%
Controls
  • 4-but ton LED display on rear panel
  • 7 DMX Channel modes: 4, 6, 7, 9, 10, 18 or 34 channel modes
  • 6 Operational modes: Manual Color Mode; Static Color Change Mode; Auto (Program Run) Mode; Sound Active Mode; RGBA Manual Control Mode and DMX-512 Mode
  • DMX-512 Protocol
  • Compatible with ADJ RFC wireless remote control (sold separately)
Connections
  • Magnetic End Caps Designed to Ensure the Precise Alignment of Multiple Bars
  • 3-pin DMX Input/Output
  • IEC In/Out AC outlets on rear to daisy chain power (up to 20 units)
  • With Wired Digital Communication Network
Electrical
  • Multi-voltage: 100-240V, 50/60Hz
  • Power Draw: 32W max
Dimensions
  • 41.75” x 3” x 5.75” / 1060 x 73 x 145 mm
  • Weight: 6 lb. / 2.7 kg.
What’s Included
  • Includes mounting brackets to mount on a wall or set on the ground
  • Power cable length: 1.8 meter (IEC)
