Description

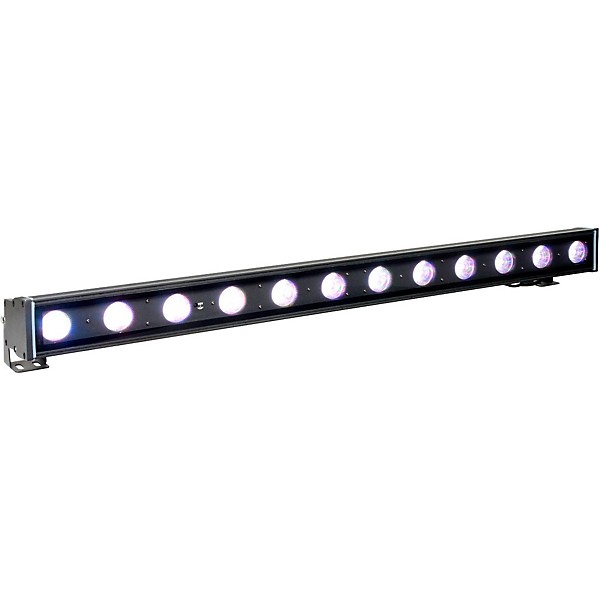

The IP65 Rated ELAR EXTQW BAR HP features 12 QUAD RGBW Color 5W LEDs, a 25 beam angle, variable color and strobe effects, 3 DMX channel modes, flicker-free operation for TV and film, 3pin in/out DMX and 4pin power in/out connections, two integrated adjustable mounting brackets, linkable power for up to seven units at 120V and (14) units at 240V, 90W max power consumption, programmable IR remote (sold separately) and a multi-voltage universal auto switching power supply (100-240v).
Elation ELAR EXTQW Bar HP
Elation ELAR EXTQW Bar HP
Elation ELAR EXTQW Bar HP

Features

25 Beam Angle
IP65 Rated
Die-Cast Aluminum Housing / Tempered Glass
IR Remote Programmable
Flicker Free Operation for TV and Film

Specs

SOURCE
12 x 5W QUAD Color (RGBW) LEDs
50,000 Hour Average Life
PHOTOMETRIC DATA
1430 LUX (133 FC) @9.8 ft. (3m) 25 Full ON
EFFECTS
Color + Variable Strobe Macros
Electronic Dimming: 0% - 100%
COLOR
RGBW (Red, Green, Blue, White)
CONTROL / CONNECTIONS
3 DMX Channel Modes (7/11/51)

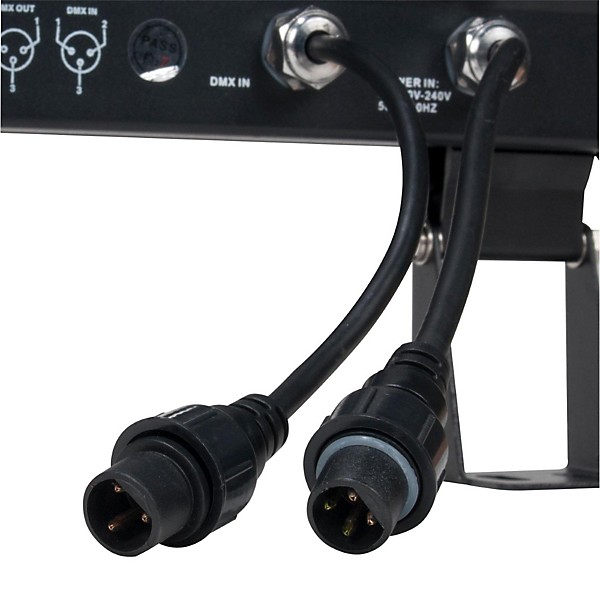

3pin DMX In/Out

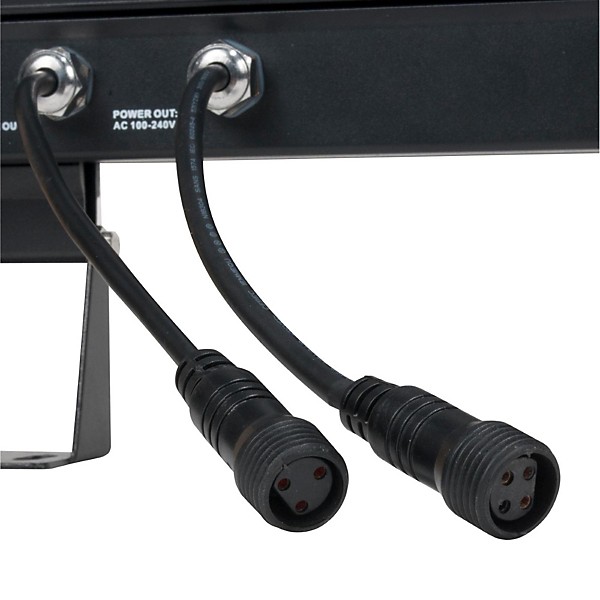

4pin Power In/Out
Power Link Multiple Units - (7) at 120V (14) at 240V
SIZE / WEIGHT
Length: 39.4 (1000mm)
Width: 3.5 (90mm)
Vertical Height: 7.1 (181mm)
Weight: 11.5 lbs. (5.2kg)
ELECTRICAL
AC 100-240V - 50/60Hz
90W Max Power Consumption
INSTALLATION

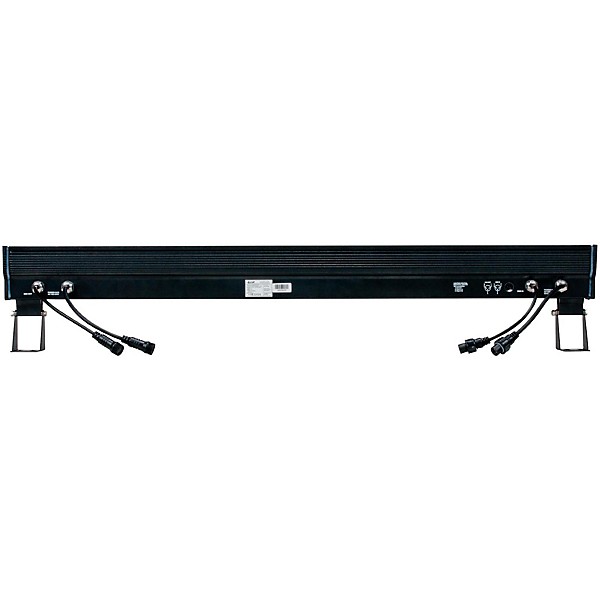

Rigging: Integrated Adjustable Mounting Brackets (x2)
Working Position: Any (360)
INCLUDED ITEMS
(1) 6.5 ft. (2m) 4pin Female to Edison Power Cable
(1) 5.5 ft. (1.7m) 3pin Male to 3pin Female DMX Cable
(1) 5.5 ft. (1.7m) 3pin Female to 3pin Male DMX Cable
(1) Bag of DMX End Caps
(2) Mounting Brackets
