Crown

Description

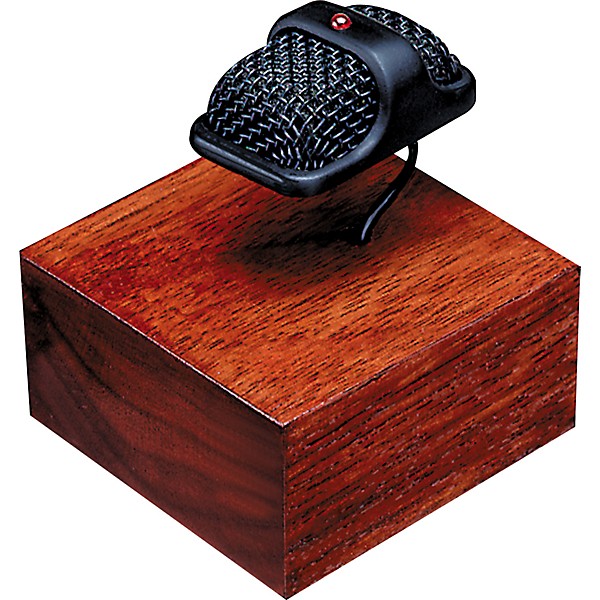

The CROWN MB 4 is a miniature boundary microphone for multi-miking applications such as teleconferencing, distance learning, boardrooms, courtrooms, and TV or theatrical applications. Double-sided sticky tape is provided for attaching the unit under shelves, on walls, etc. Thanks to its supercardioid pickup pattern, the CROWN MB 4 greatly reduces ambient noise and pickup of room reverberation. The result is a clearer sound. The CROWN MB 4 has an attached cable leading to an XLR-type output connector with built-in mic electronics. It is powered by 12-48 V phantom power, and is low-impedance balanced.

Featuring an incredibly small size, the CROWN MB Series of mini-boundary, supercardioid microphones offers a wide range of features and flexibility. The miniature, low profile designs virtually disappear when installed, yet provide the same great sound as the highly-acclaimed CROWN PCC microphone series.

Crown MB4 Mini Boundary Mic

Features

  • Supercardioid polar pattern and CROWN PCC technologie (phase coherent cardioid) for clear, natural sound and high gain before feedback
  • Miniature design, virtually disappears when installed
  • Removable grille assembly can be painted
  • LED indicator illuminates when mic is active
  • Low-Z balanced output prevents hum and high-frequency loss
  • Applications:
  • Houses of worship
  • Conferencing
  • Lectern
  • Security
  • Fixed installed systems
warning

WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov.

Specs

  • Polar pattern: supercardioid
  • Frequency response: 50 to 15,000 Hz
  • Sensitivity: 22 mV/Pa (-33 dBV)
  • Maximum SPL: 120 dB
  • Equivalent noise level: 22dB-A
  • Signal/noise ratio: 72 dB (A-weighted)
  • Impedance: 150 ohms
  • Connector: 3-pin XLR
  • Finish: satin black
  • Dimensions: 3.8 cm x 1.5 cm (1.5 x .05 in.)
  • Net weight: Microphone: 19 g (0.7 oz.); Power Module: 78 g (2.8 oz.)
