beyerdynamic

Description

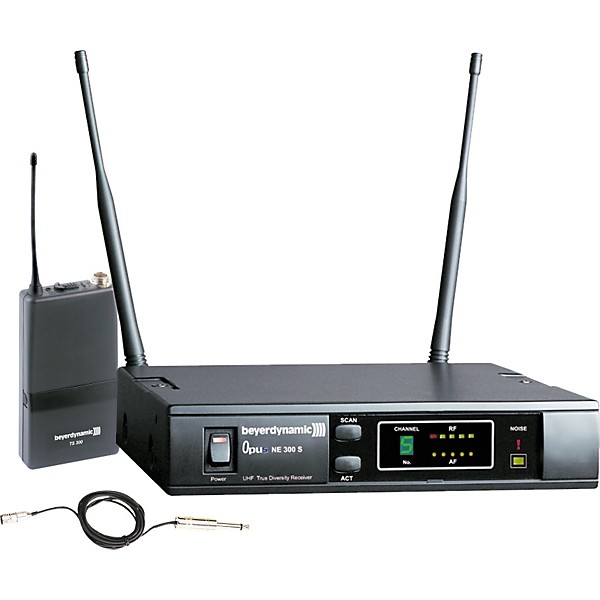

The Opus 300 UHF guitar wireless system from beyerdynamic includes an NE 300 S true diversity receiver, a TS 300 pocket transmitter, and an MJ 41 G instrument cable. The Opus 300 is designed for use with electric guitars, acoustic guitars fitted with a pickup, or any other portable instruments with output signal facilities. Equipped with the innovative AutoScan/ACT-function and 16 switchable, preprogrammed frequencies, the Opus 300 can be operated with up to 16 channels per frequency range without any interference. True diversity, pilot tone recognition, and an adjustable squelch control deliver high-quality reception without moaning, whistling noises. Includes a rugged transport case.
beyerdynamic Opus 300 Guitar Wireless System

Features

  • NE 300 S true diversity receiver
  • TS 300 pocket transmitter
  • MJ 41 G instrument cable

Specs

  • NE 300 S receiver:
  • Operating principle: True diversity receiver (UHF)
  • Frequencies: 16 preprogrammed frequencies
  • Frequency ranges: 798 - 822 MHz
  • 850 - 874 MHz
  • More frequency ranges on request
  • Switching bandwidth: 24 MHz
  • Antenna connection: 2 x TNC
  • Nominal deviation: ± 40 kHz
  • Output level: 1.2 V
  • Signal-to-noise ratio: > 105 dB(A)
  • T.H.D. < 0.5% at 1 kHz
    Squelch: Adjustable
  • Power supply: 12 V - 15 V DC
  • Mains: 100 V - 240 V AC
  • Dimensions: 210 x 206 x 44 mm
  • Weight: 1.0 kg
  • TS 300 pocket transmitter:
  • Frequency ranges: 798 - 822 MHz
  • 850 - 874 MHz
  • More frequency ranges on request
  • Modulation: FM
  • Nominal deviation: +/- 40 kHz
  • Radiated transmitter power: >10 mW
  • Sensitivity: 10 mV - 0.3 V, adjustable
  • Frequency response: 50 - 18,000 Hz
  • Transmission range: > 100 m
  • Signal-to-noise ratio: > 105 dB
  • T.H.D.: < 0.5% at 1 kHz
    Power supply: 1 x 9 V battery (alkaline) or rechargeable battery
  • Operating time: Up to 15 hours with battery
  • Dimensions: 105 x 63 x 21 mm
  • Weight: 85 g
